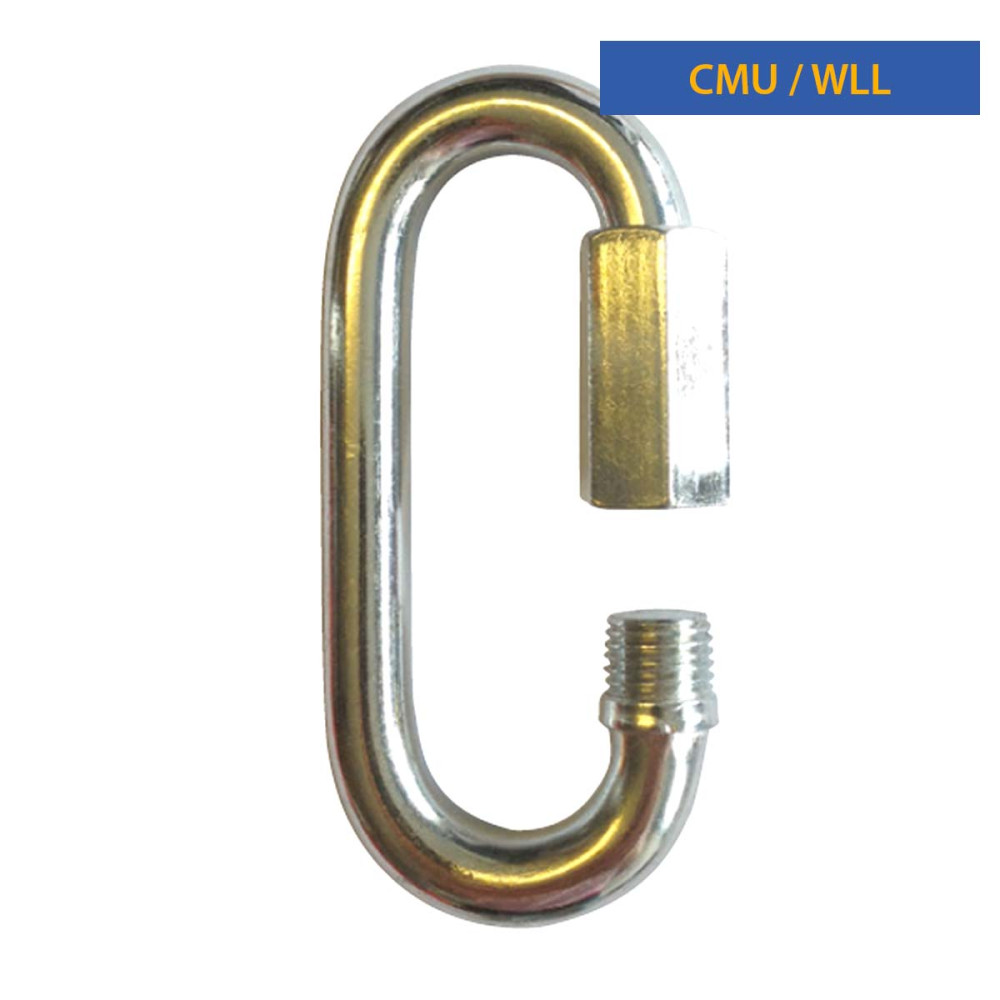

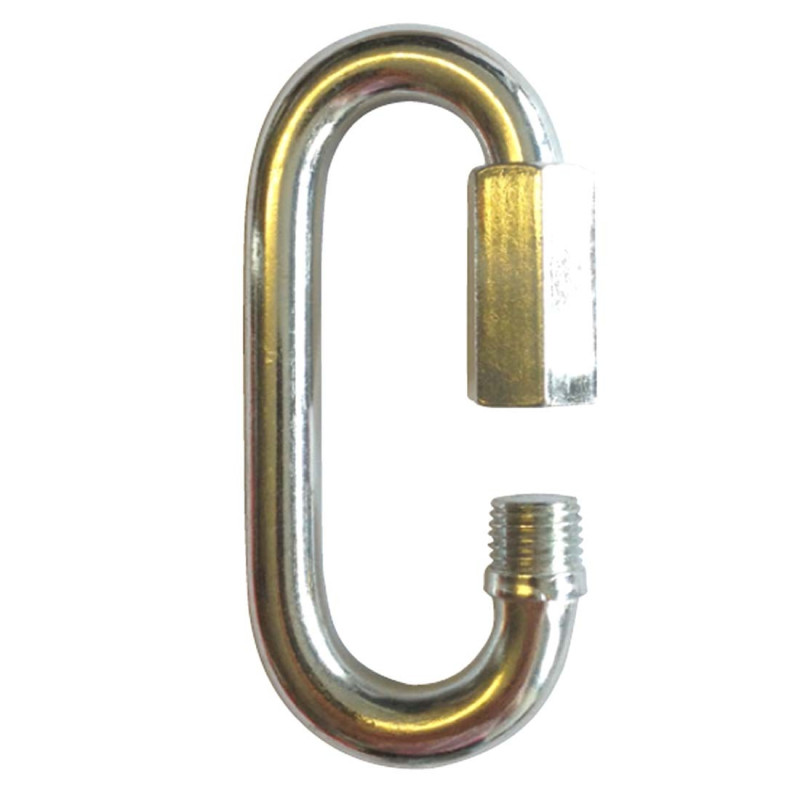

Zinc-plated quick link – PRO rang
Référence: MRZ/07
- Made in France, load marked | CE
- Available diameters from 4 to 16 mm
- WLL from 180 kg to 2,900 kg
- For adventure parks (treetop courses)
- Safety factor 5, WLL in kg

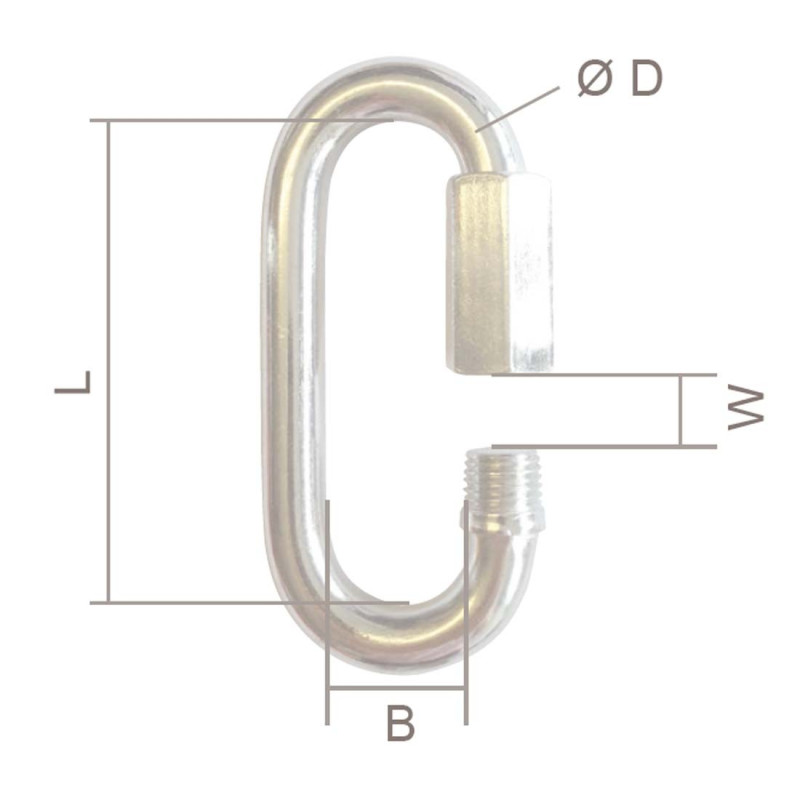

| Reference | WLL(Kg) | ØD (mm) | B(mm) | L (mm) | W (mm) |
|---|---|---|---|---|---|
| MRZ/4 | 180 | 4 | 10 | 33 | 5.5 |
| MRZ/5 | 280 | 5 | 12 | 39 | 6.5 |
| MRZ/6 | 400 | 6 | 13 | 45 | 7.5 |
| MRZ/7 | 550 | 7 | 16 | 53 | 8.5 |
| MRZ/8 | 700 | 8 | 16 | 59 | 10 |
| MRZ/10 | 1100 | 70 | 20 | 10 | 12 |
| MRZ/12 | 1500 | 12 | 22 | 82 | 14 |
| MRZ/14 | 2200 | 14 | 26.5 | 93 | 17 |
| MRZ/16 | 2900 | 16 | 29.5 | 108 | 19 |
MRZ/07
Data sheet
- Steel
- Zinc-plated
- Adventure park accessory
- Link
- Made in France, load marked | CE
- Available diameters from 4 to 16 mm
- WLL from 180 kg to 2,900 kg
- For adventure parks (treetop courses)
- Safety factor 5, WLL in kg
