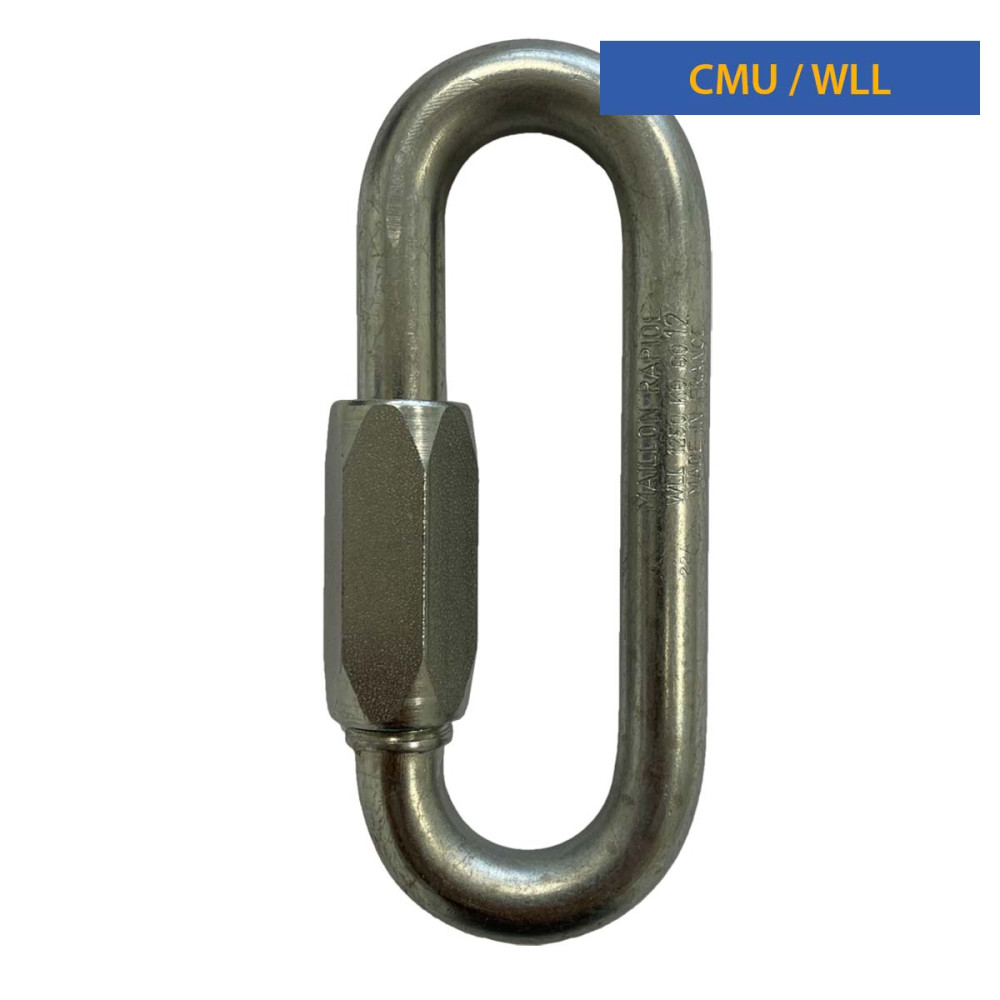

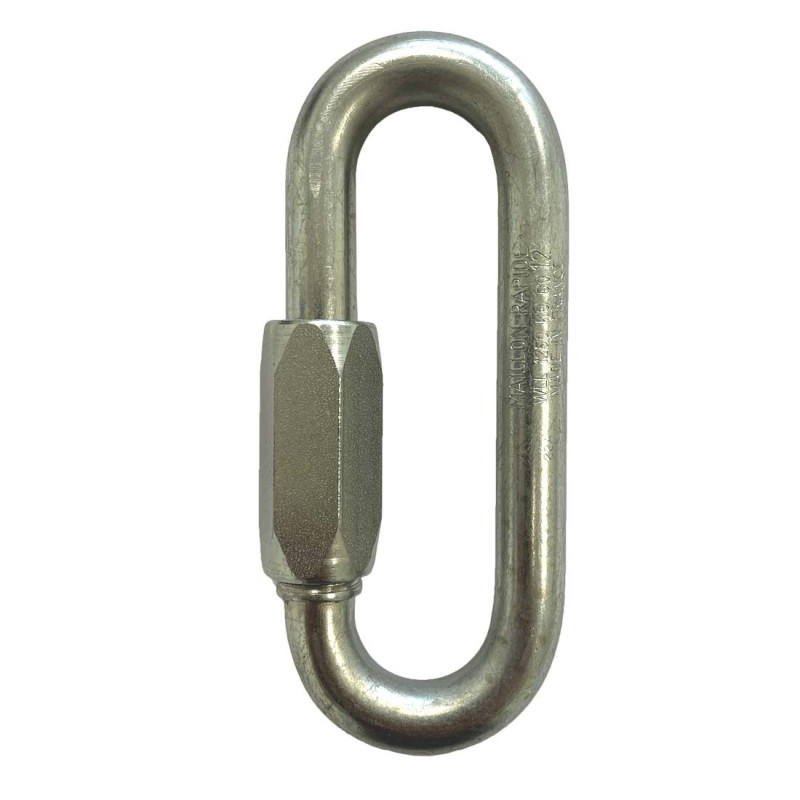

Large-opening zinc-plated quick link – PRO range

Référence: MRGOZ/08

Made from zinc-plated steel, PRO range, this large-opening quick link allows the passage of textile slings.

  • Load marked | CE
  • Available diameters from Ø4 to Ø20 mm
  • WLL from 180 kg to 3,600 kg
  • For adventure parks (treetop courses)
  • Safety factor 5, WLL in kg
€4.85
Tax excluded
Diameter: 8 mm
Quantity

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

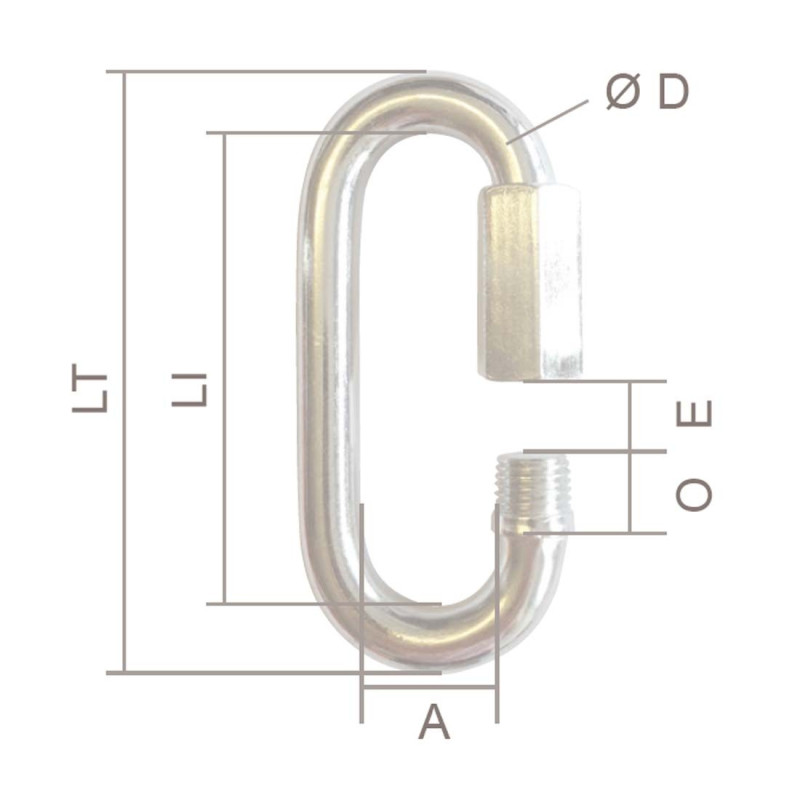

Reference WLL(Kg) DØ (mm) A (mm) E (mm) LI (mm) LT (mm) 0 (mm)
MRGOZ/4 160 4 11.5 19 45 53 11.5
MRGOZ/5 250 5 13 22 52 62 13
MRGOZ/6 350 6 14.5 25 58.5 70.5 14.5
MRGOZ/7 500 7 16 28 65 79 16
MRGOZ/8 650 8 17.5 31.5 72 88 17.5
MRGOZ/9 800 9 19 33 77 95 19
MRGO/10 1000 10 20.5 36 85.5 105.5 20.5
MRGO/12 1250 12 23.5 43 100 124 23.5
MRGO/14 2000 14 26.5 49 114 142 26.5
MRGO/16 2500 16 54 129 161 29.5 29.5
MRGO/18 3000 18 32.5 62 140.5 176.5 32.5
MRGO/20 3600 20 35.5 71 158.5 198.5 35.5
MRGOZ/08

Data sheet

Steel
Zinc-plated
Adventure park accessory
Link
