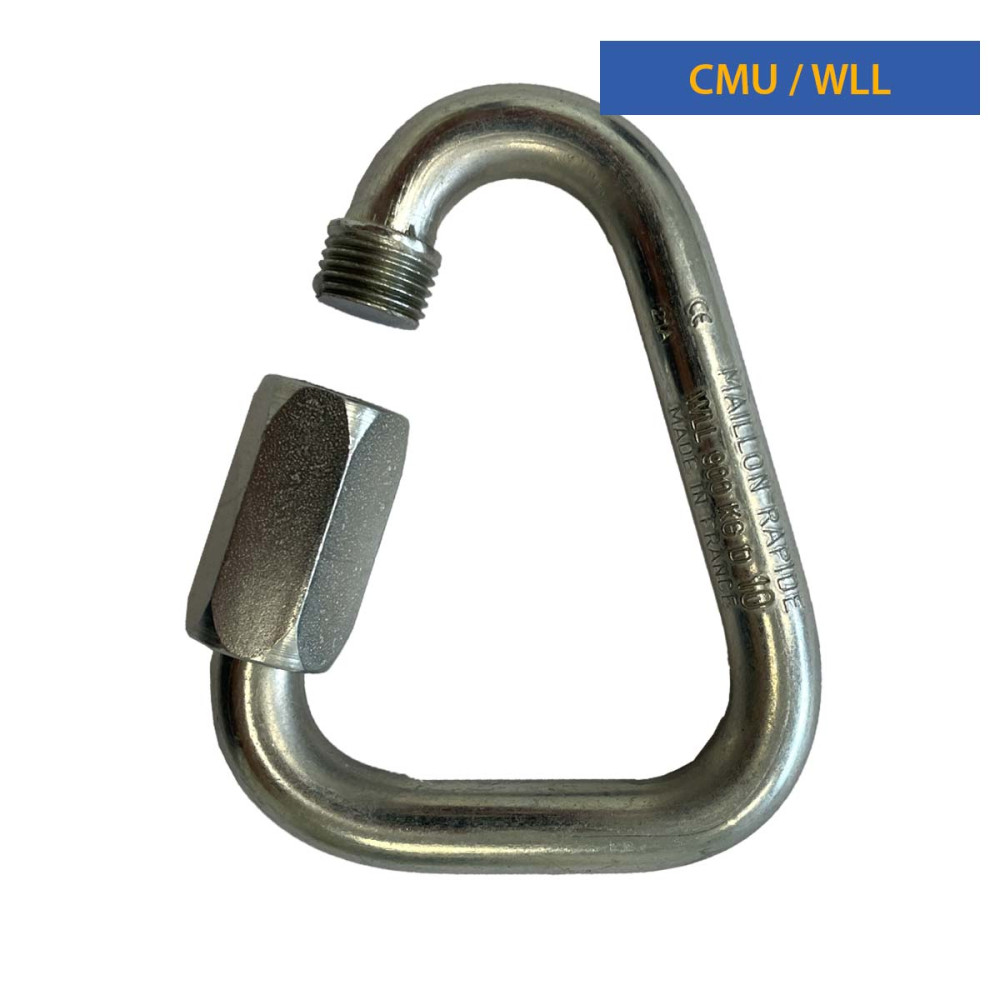

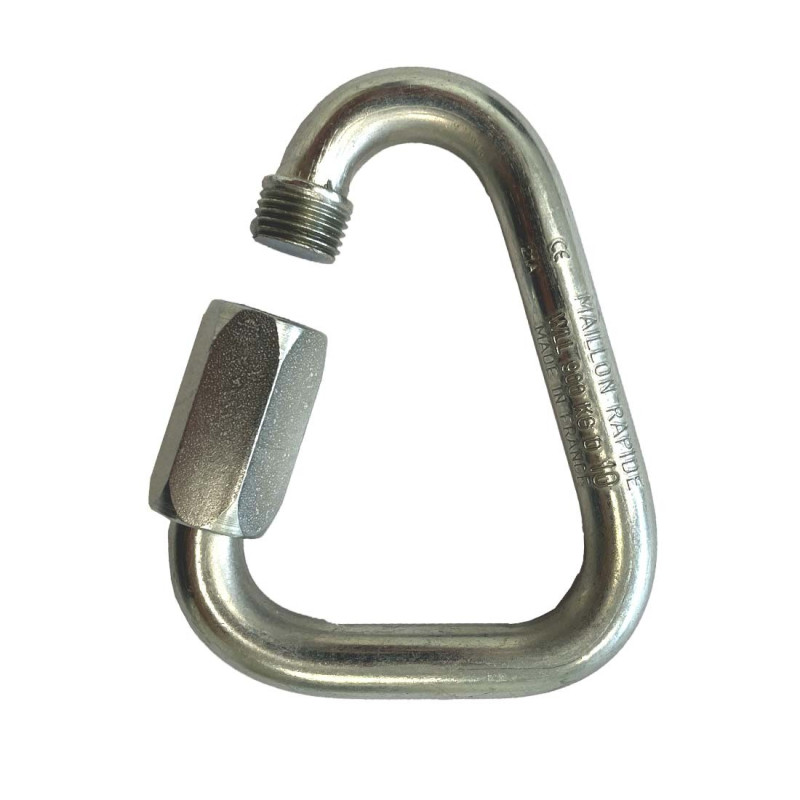

Quick link delta, zinc-plated steel – PRO range

Référence: MRDZ/08
  • Made in France, load marked | CE
  • Available diameters from Ø4 to Ø16 mm
  • For adventure parks (treetop courses)
  • WLL from 100 kg to 3,000 kg
€4.95
Tax excluded
Diameter: 8 mm
Quantity

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

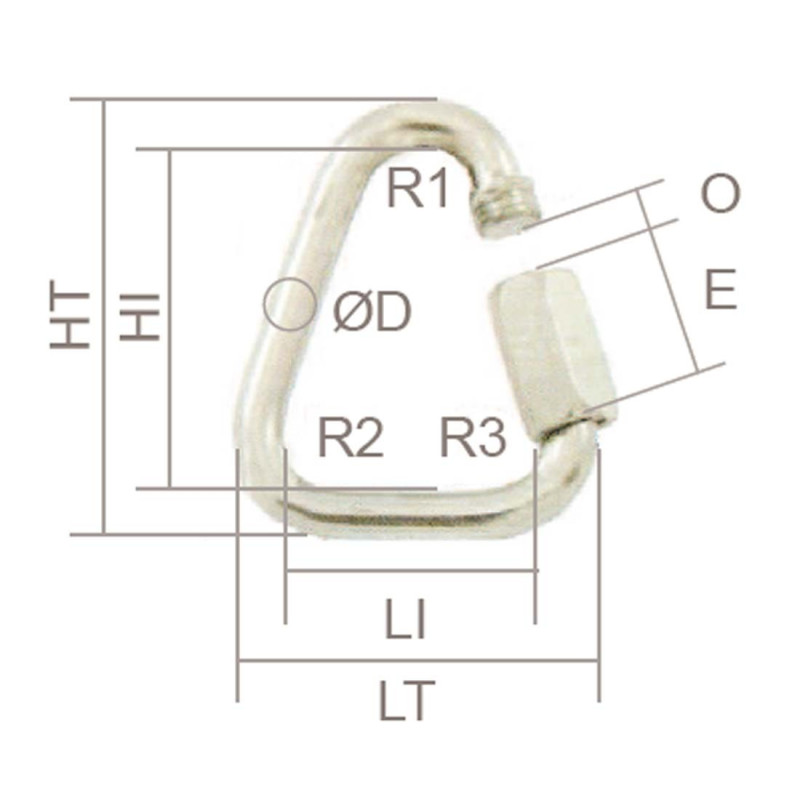

Reference WLL(Kg) Ø (mm) E (mm) HT (mm) HI (mm) LI (mm) LT (mm) R2-R3 (mm) O (mm)
MRDZ/4 100 4 12.5 40 32 27.5 35.5 5.75 5.5
MRDZ/5 150 5 16 48 38 30 40 6.5 6.5
MRDZ/6 250 6 19 56 44 35 47 7.25 7.5
MRDZ/7 400 7 21.5 63 49 37 51 8 8.5
MRDZ/8 550 8 24 73 57 40 56 8.85 10
MRDZ/9 700 9 26 78 60 42 60 9.5 11
MRDZ/10 900 10 29 87 67 46 66 10.25 12
MRDZ/12 1100 12 33 104 80 51 75 11.75 15
MRDZ/14 1800 14 38.5 123 95 57 85 13.25 17
MRDZ/16 2200 16 45 138 106 61 93 14.75 19
MRDZ/08

Data sheet

Steel
Zinc-plated
Adventure park accessory
Link
