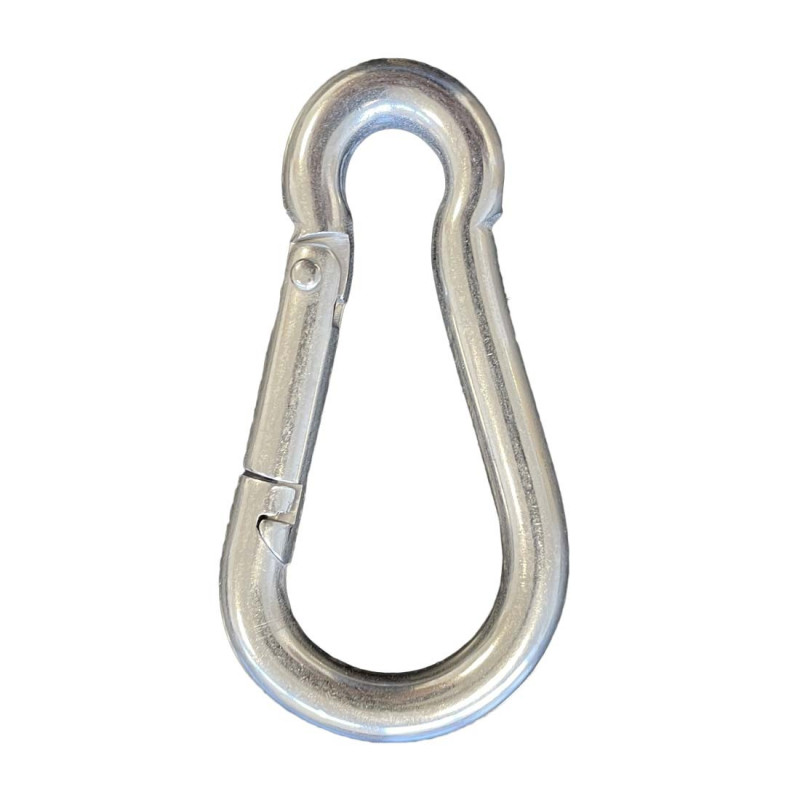

SST Carabine hook
Référence: MPI/04
- Breaking load: 60 to 800 kg
- Diameter: Ø4 to Ø10 mm
- AISI 316 stainless steel, not for lifting

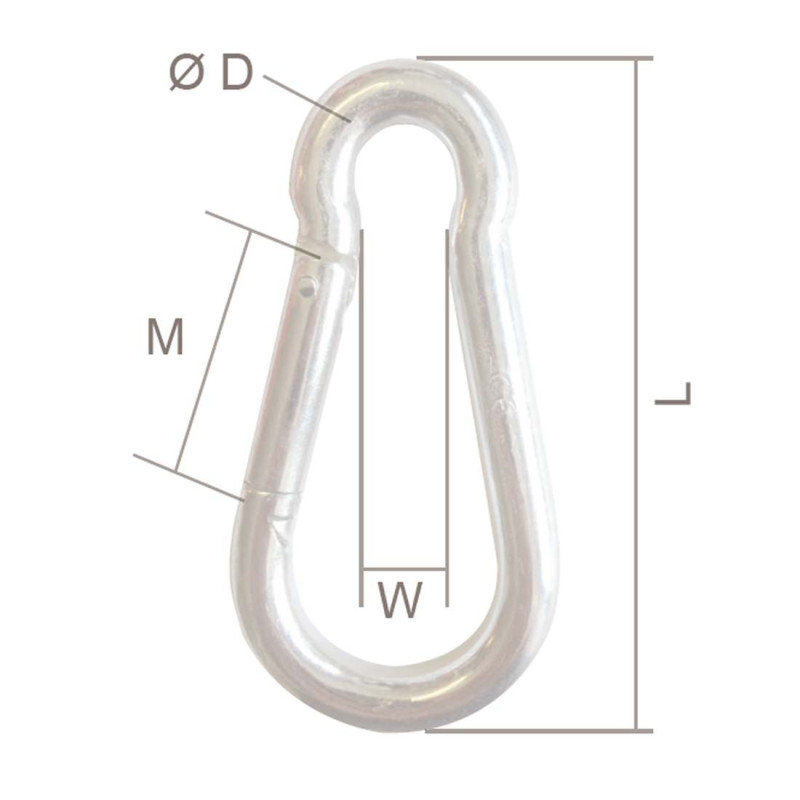

| Part Number | Breaking point (Kg) | ØD(mm) | L (mm) | M (mm) | W (mm) |
|---|---|---|---|---|---|
| MPI/4 | 60 | 4 | 40 | 6 | 4 |
| MPI/5 | 200 | 5 | 50 | 7 | 4 |
| MPI/6 | 240 | 6 | 60 | 8 | 5 |
| MPI/7 | 360 | 7 | 70 | 8 | 8 |
| MPI/8 | 460 | 8 | 80 | 9 | 8 |
| MPI/9 | 500 | 9 | 90 | 10 | 9 |
| MPI/10 | 700 | 10 | 100 | 11 | 10 |
| MPI/12 | 800 | 12 | 140 | 19 | 13 |
MPI/04
Data sheet
- Steel
- Stainless
- Breaking load: 60 to 800 kg
- Diameter: Ø4 to Ø10 mm
- AISI 316 stainless steel, not for lifting
