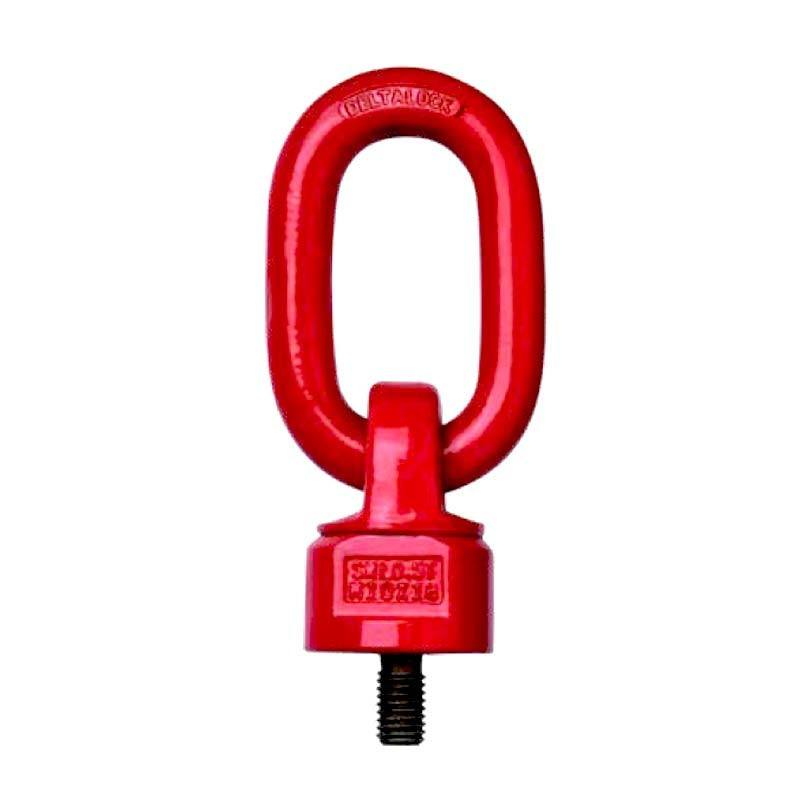

Swivel lifting point with Ball bearing

Référence: ALA08

Swivel lifting ring for load rotation | CE marked

  • According to EN 1677 standard | compliance certificate
  • Grade 80, safety factor 1/4

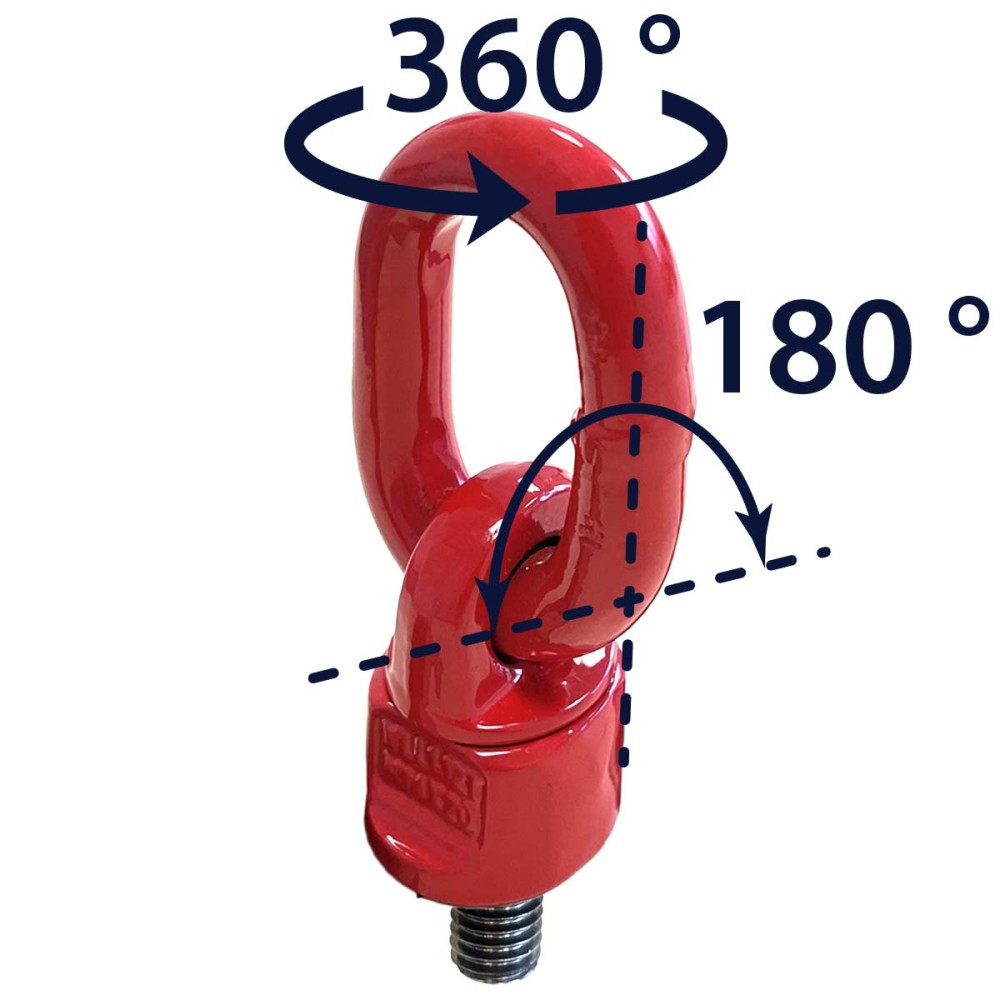

  • 360° rotation
  • Ring movement 180°
  • For product selection, the WLL is given for lifting at 0°. To know the WLL from 0° to 90°, please refer to the table below.
€23.50
Tax excluded
Thread Diameter and WLL: M8 - WLL 600 Kg
Quantity
Delivery 48-72h

A minimum shopping cart total of €25.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).
WLL(Kg) à 0 ° WLL(Kg) de 0° Thread x Width A B C D E F G
600 300 M8x13 36 17 51 41 55 30 14
1000 500 M10x18 36 17 51 41 55 30 14
1000 500 M12x18 36 17 51 41 55 30 14
2400 1120 M14x20 36 17 51 41 55 30 14
2400 1120 M16x20 36 17 52 42 55 30 14
4000 2000 M20x30 50 19 68 56 70 35 16
6300 3150 M24x30 57 22 78 66 85 40 18
6300 3150 M27x35 57 22 78 66 85 40 20
10600 5300 M30x35 66 24 97 81 85 40 20
12800 8000 M36x50 80 28 109 90 115 50 22
ALA08

Data sheet

Ring Type
Swivel
Rod
Short
Steel
High-strength

Specific References

ean13
8719482305405
