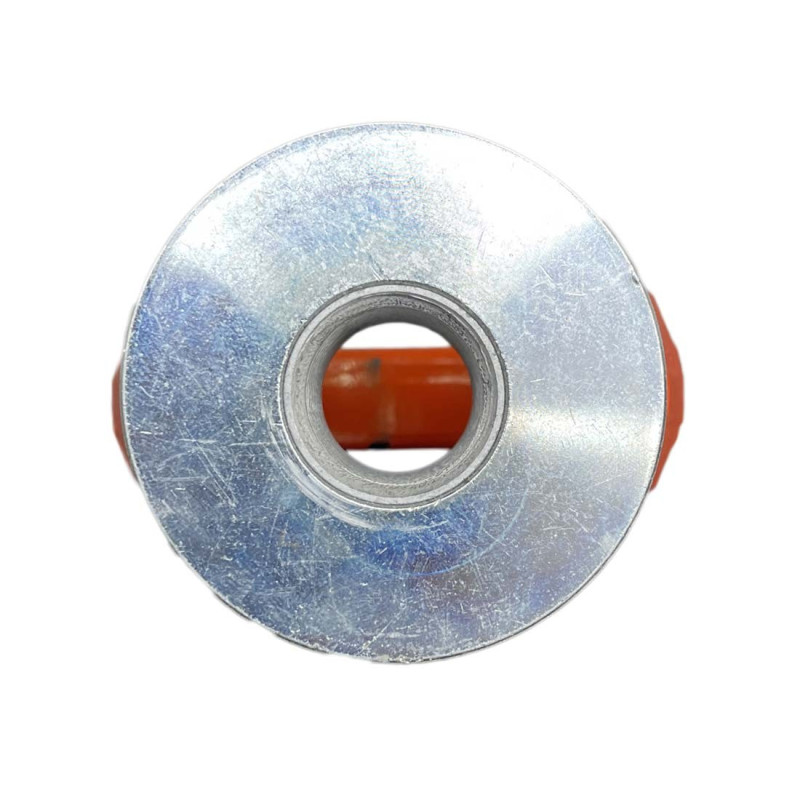

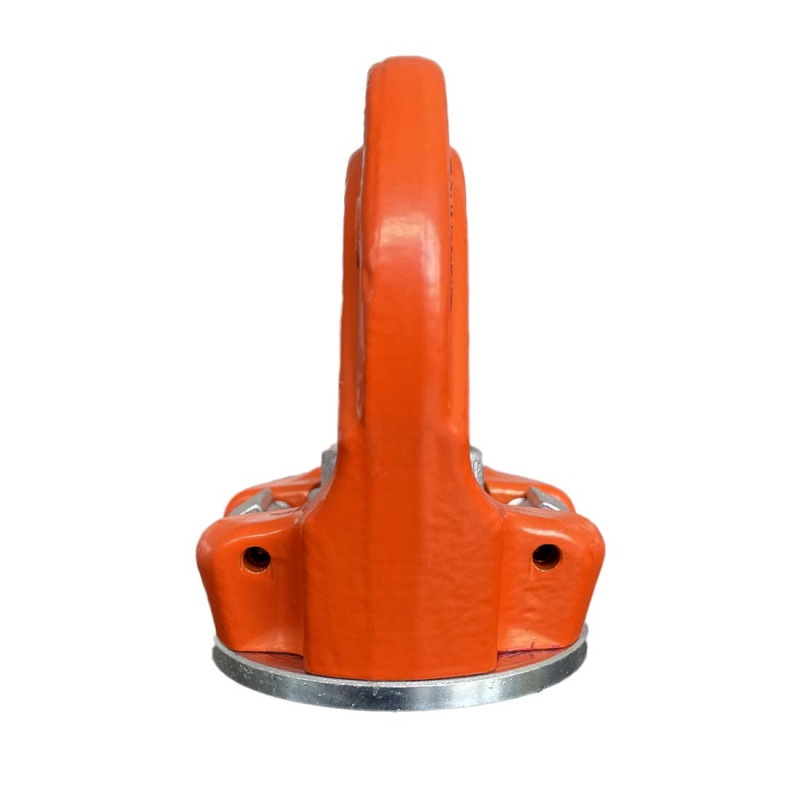

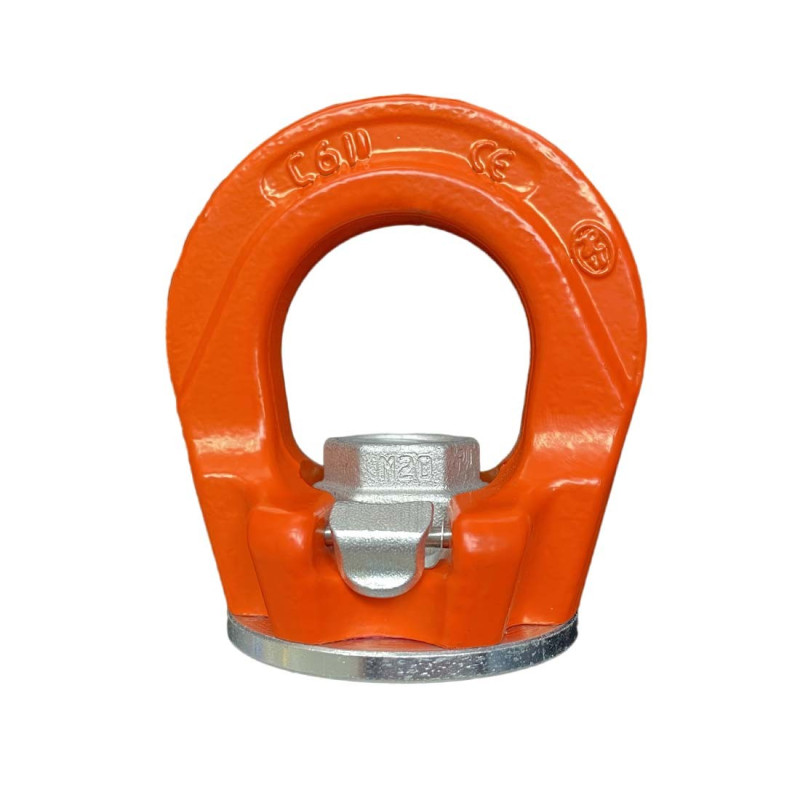

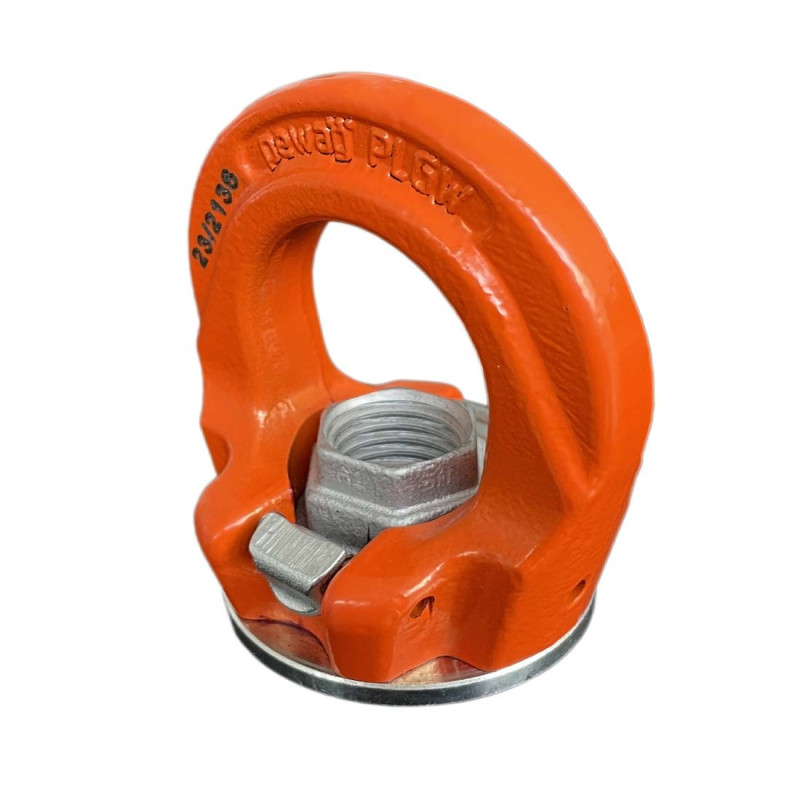

Plgw-Sn Gamma Female lifting ring

Référence: PLGW-SN 0,3 t
  • CE certificate of conformity
  • Safety factor 4
  • Thread sizes available from M8 to M30 for high-frequency use
  • European manufacturing by Pewag

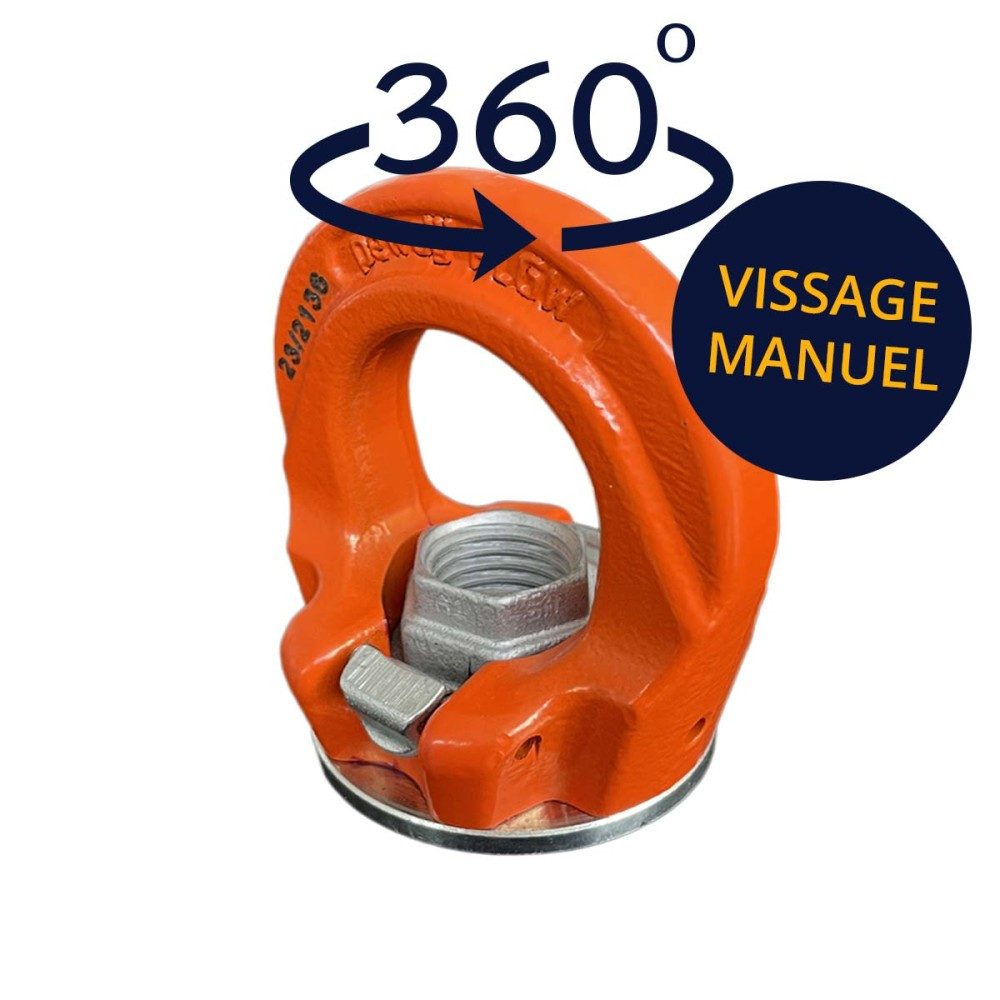

  • Hand-tightened | Easy to install and remove

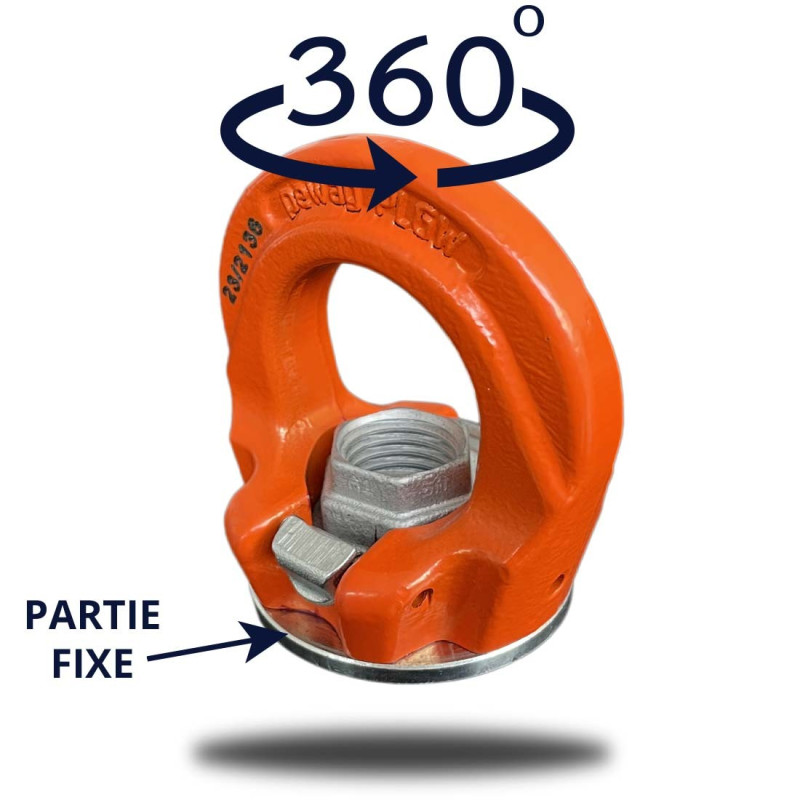

  • Swivels to align the ring with the load direction after tightening
  • Unique number laser-engraved | No identification tag required
  • RFID chip option
  • Anti-crack bolt
  • Hexavalent chromium-free
  • Product selection: thread size – WLL for straight lift at 0° (see table)
  • Technical datasheet available for download in the Documents tab
€39.50
Tax excluded
Thread Diameter and WLL: M8 - WLL 1000 Kg
Quantity

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

Specification Pewag ring

Référence screw  WLL 0° WLL 45° WLL 90° A B C D E F Clé weight (Kg)
PLGW-SN 0,3 t M8 1(T) 400(Kg) 300(Kg) 25 45 10 21 55 35 12 0,17
PLGW-SN 0,5 t M10 1.5(T) 700(Kg) 500(Kg) 25 45 10 21 55 35 12 0,17
PLGW-SN 0,7t M12 2(T) 1(T) 700(Kg) 30 55 12 25 65 43 14 0,28
PLGW-SN 1,5 t M16 4(T) 2.1(T) 1.5(T) 35 64 14 29 72 50 19 0,42
PLGW-SN 2,3 t M20 5(T) 3.2(T) 2.3(T) 40 73 16 34 82 54 22 0,5
PLGW-SN 3,5 t M24 6.5(T) 4.9(T) 3.5(T) 50 86 18 40 95 69 27 1
PLGW-SN 4.9 t M30 12(T) 6.9(T) 4.9(T) 60 110 25 47 115 90 36 1,9

Video

anneau femelle pewag plgw sn
PLGW-SN 0,3 t

Data sheet

Ring Type
Female
Steel
High-strength
