Male swivel lifting ring

Référence: SUPREMEPLGW0.3
  • CE Certificate of Conformity
  • Safety factor 4
  • Thread sizes available from M8 to M48 for intensive use
  • European manufacturing – Pewag
  • Hand-tightenable | Easy assembly and disassembly

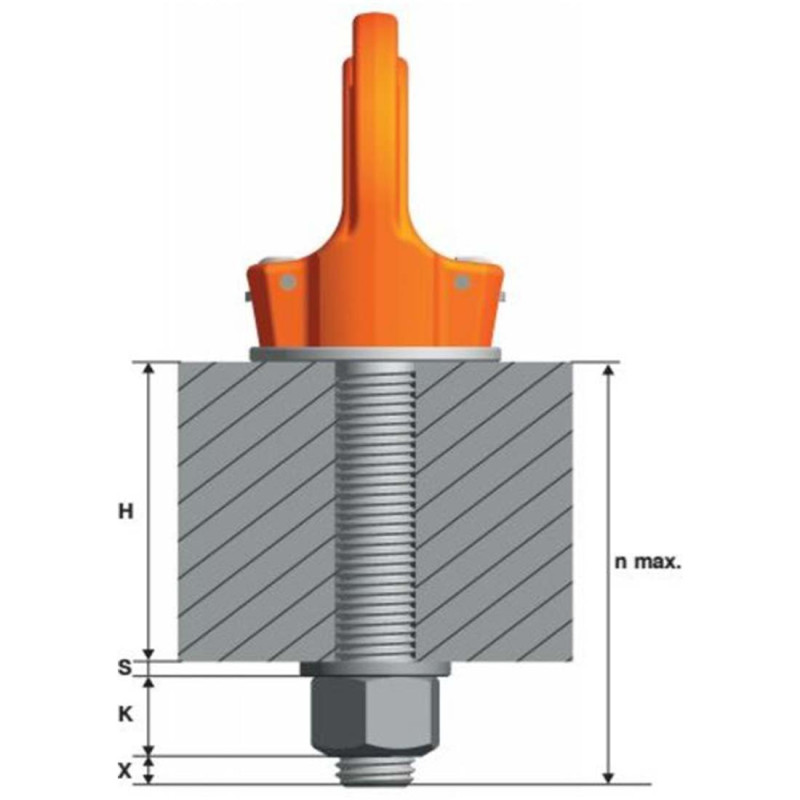

  • Choice of threaded length n up to M20 – please contact us

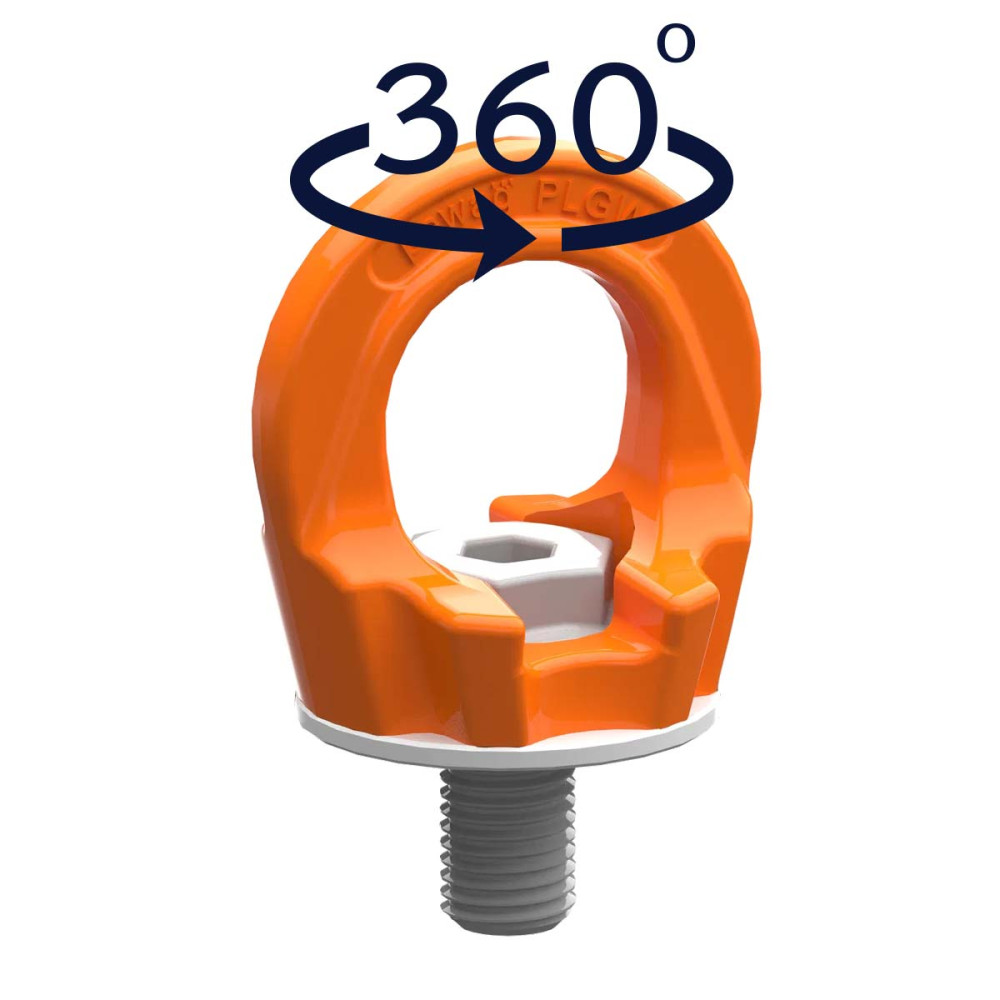

  • Swivel function allows ring alignment according to the load direction after installation

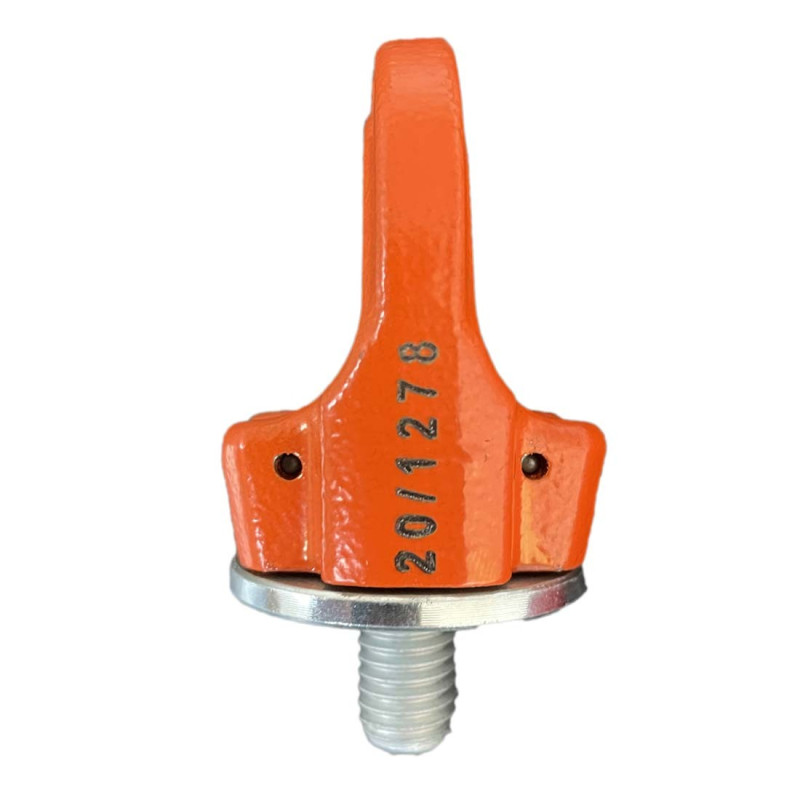

  • Unique laser-engraved identification number | No ID plate required
  • Optional RFID chip and color plug for easy identification and annual inspection (VGP) – please contact us
  • Anti-crack screw design
  • Chromium VI-free
  • Product selection: thread diameter × threaded length n – WLL for straight lift (see table)
  • Technical datasheet available for download in the Documents tab

Request for quotation

€26.00
Tax excluded
Thread Diameter and WLL: M8x15 - 1000 Kg
Quantity
Delivery in 1 week

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).
Thread (mm) WLL to 0° (Kg) WLL to 45° (Kg) WLL to 90° (Kg) a b c d e f n n max Clé allen Weight(Kg)
M8 1000 420 300 25 45 10 27 53 35 15 90 6 0.2
M10 1500 700 500 25 45 10 27 53 35 15 160 6 0.21
M12 2000 980 700 30 55 12 32 63 43 20 160 8 0.29
M16 4000 2100 1.500 35 64 14 36 70 50 25 160 10 0.48
M20 5000 3200 2.300 40 73 16 41 81 54 30 160 12 0.58
M24 6500 4500 3.200 50 86 18 50 93 69 35 - 14 1.1
M30 12000 6900 4.900 60 110 25 60 114 90 45 - 17 2.2
M36 15000 9800 7.000 70 132 31 70 136 108 55 - 19 3.8
M42 22000 12600 9.000 80 152 36 72 153 126 65 - 22 5.7
M48 30000 16900 12.000 95 179 42 88 179 148 75 - 24 8.9
SUPREMEPLGW0.3

Data sheet

Ring Type
Male
Rod
Short
Steel
High-strength
