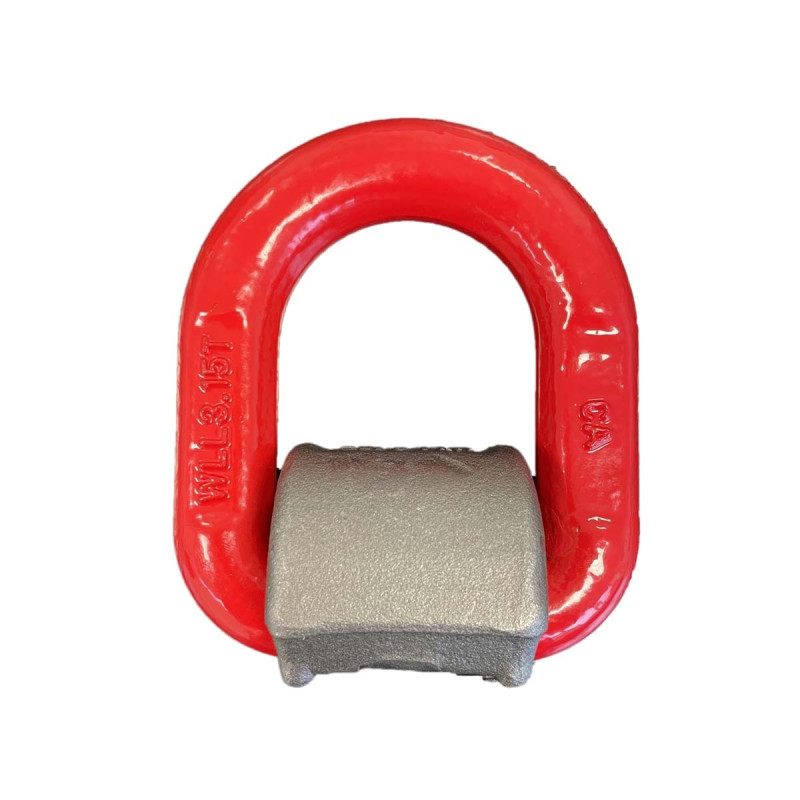

Weld-on lifting point

Référence: ALSA01T120
  • WLL from 1120 kg to 20 tonnes
  • High-strength lifting point
  • Grade 80 steel
  • Capacity = Working Load Limit (WLL) in kg
€8.10
Tax excluded
Capacity (Kg): 1120 Kg
Quantity
Delivery 48-72 H

A minimum shopping cart total of €25.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

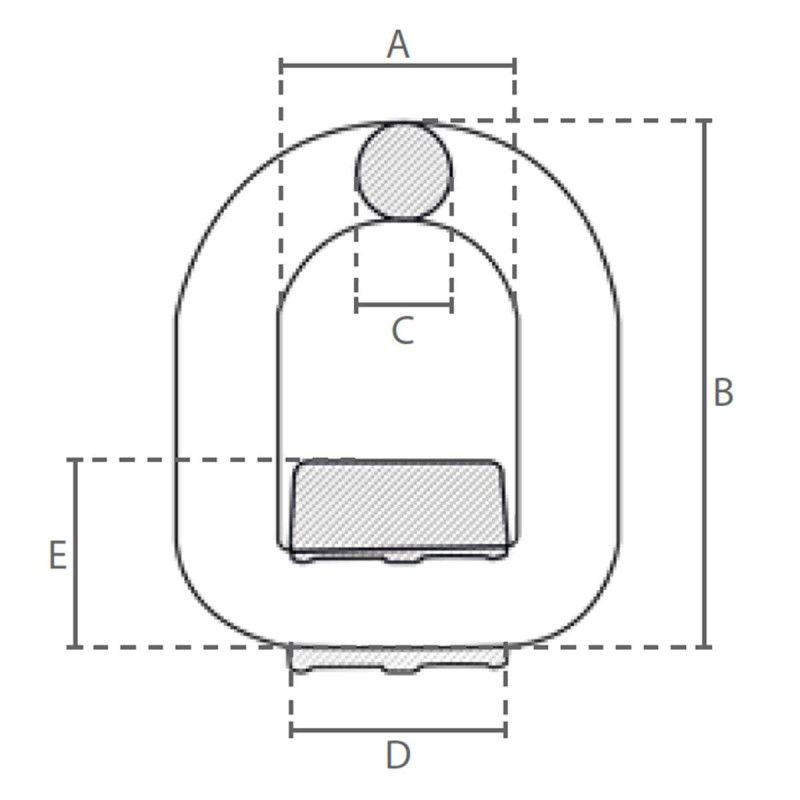

WLL (T) Weight (Kg) A B C D E
1.12 0.4 41 79 13 37 34
2 0.5 42 88 14 40 36
3.15 0.7 45 94 17 43 39
5.3 1.5 55 118 22 51 49
8 2.5 70 141 27 71 54
15 5.8 97 188 34 90 72
ALSA01T120

Data sheet

Ring Type
Weld on
Steel
High-strength

Specific References

ean13
8719482306501
