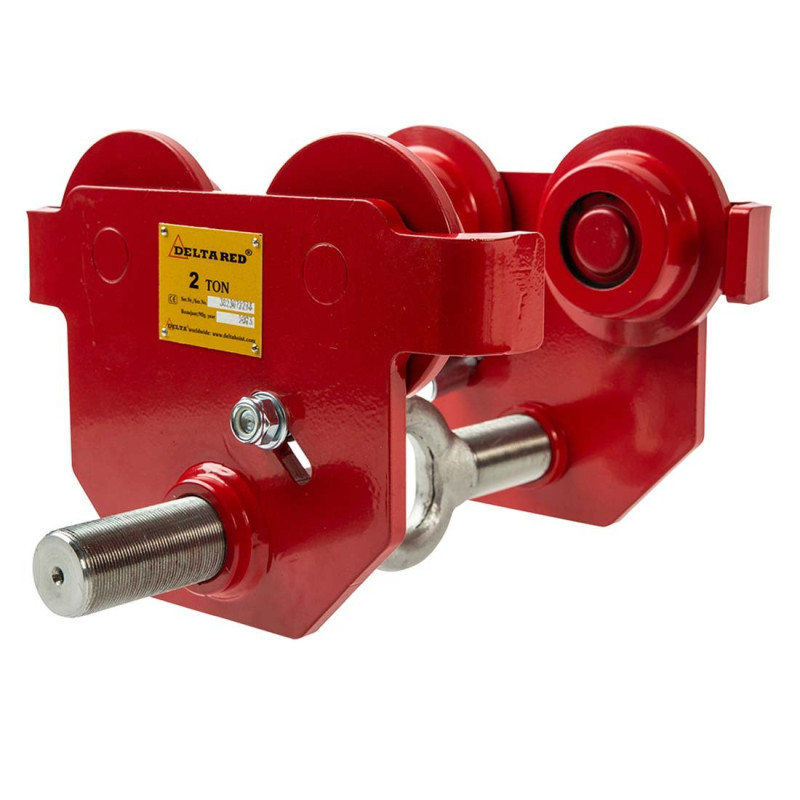

Push Trolley WLL 1 to 5 Tons

Référence: CPPM-0500
  • Individually adjustable with spacing discs
  • Anti-tilt and anti-drop protection
  • Lubricated ball bearing wheels
  • Suitable for most available I-beams and H-beams
  • Compliant with Machinery Directive 2006/42/EC
  • Supplied with inspection certificate, EC Declaration of Conformity and user manual
€62.00
Tax excluded
Capacity (Kg): 500 Kg
Quantity
Delivery 48-72H

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

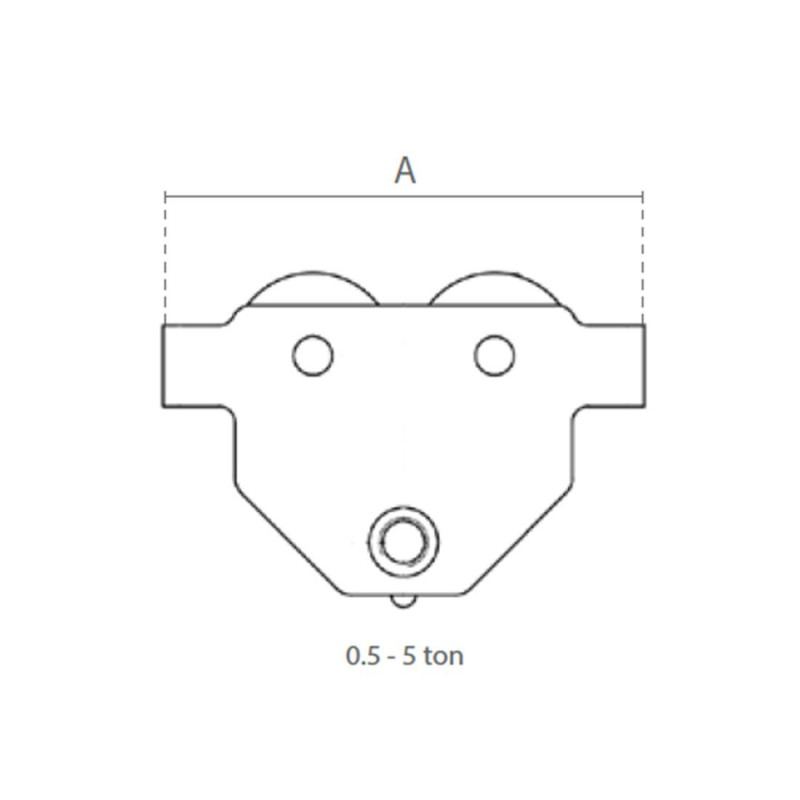

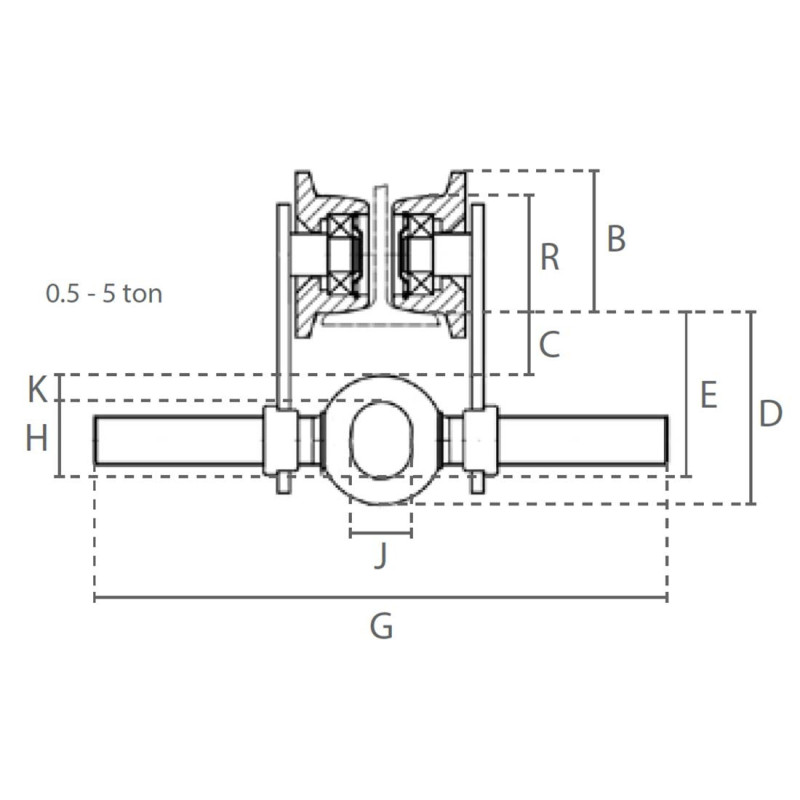

Dimension en mm

WLL (T) Load Proof (T) Width beam Rayon min Ø wheel Weight(Kg) A B C D E G H J K
0.5 0.625 50-305 0.5 55 5.4 198 68 40 94 82 385 28 25 13
1 1.25 58-305 0.7 68 9.3 238 82 31 102 85 388 37 29 17
2 2.5 66-305 0.9 80 14.8 277 95 31 119 99 405 48 36 20
3 3.75 74-305 1.2 100 24.1 324 116 31 139 113 429 56 46 26
5 6.25 90-305 1 120 41.1 373 138 40 161 133 435 65 52 28
CPPM-0500

Specific References

ean13
8719482019722
