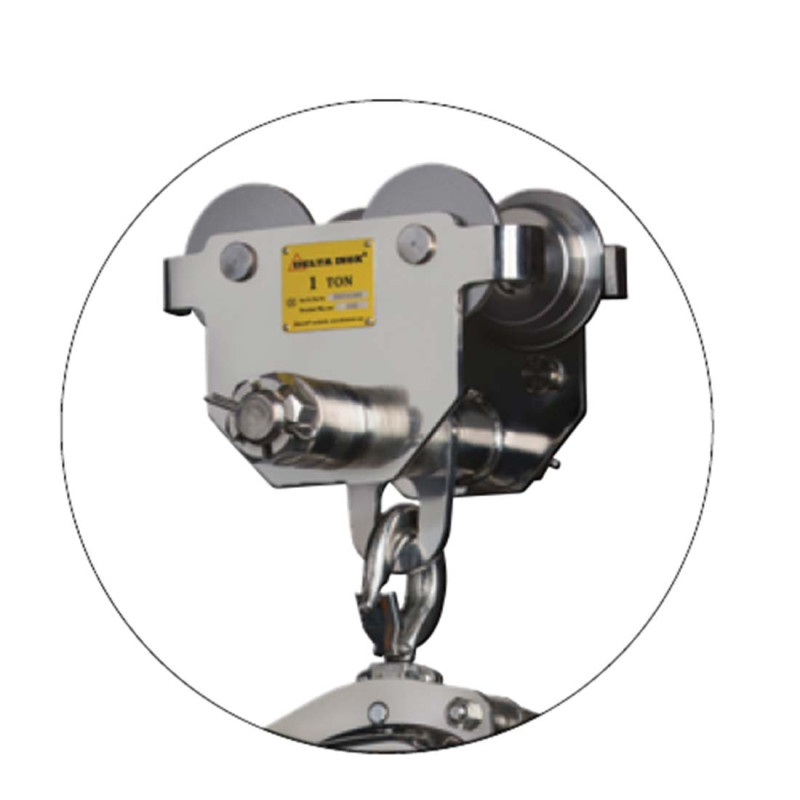

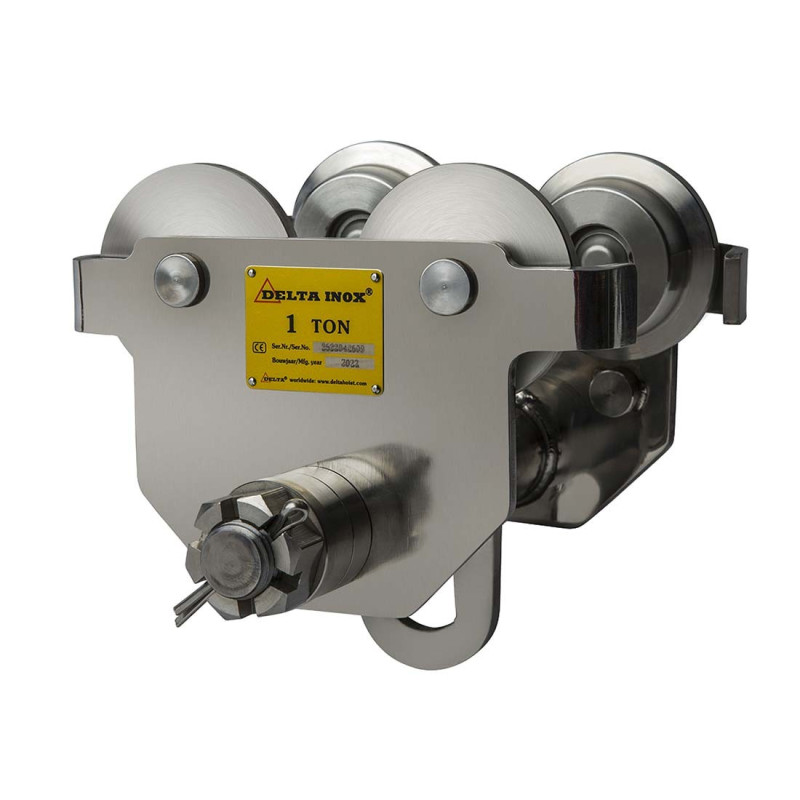

Stainless Steel Manual Hoist Trolley
- Maximum protection against corrosive and high-humidity environments.
- Suitable for cleanrooms and food industry applications.
- All components (except bearings) are made of highly corrosion-resistant 304 (V2A) stainless steel.
- Individual adjustment using spacer washers.
- Safety bars provide protection against falls, wheel breakage and impacts. Additionally equipped with an anti-tilt protection system.
- Permanently lubricated ball-bearing wheels ensure smooth and consistent movement.
- Suitable for most commercially available I-beams and H-beams.
- Complies with Machinery Directive 2006/42/EC. Supplied with inspection certificate, EC Declaration of Conformity and operating instructions.

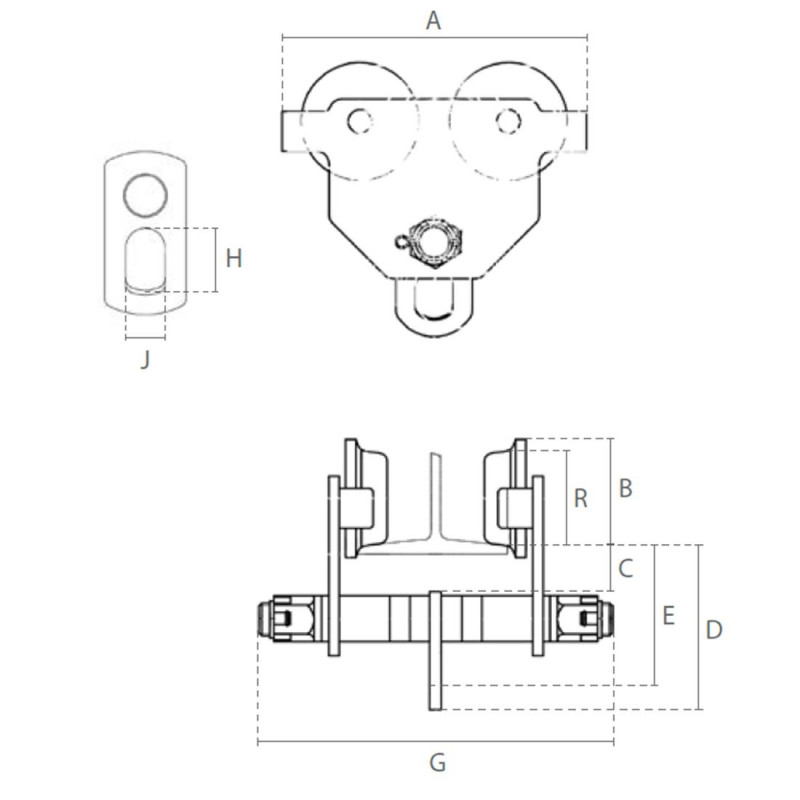

| WLL(T) | charge de test (T) | Beam width (mm) | curve radius min (m) | diameter roue(mm) | weight(Kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | G(mm) | H(mm) | J(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 0.74 | 50-152 | 0.8 | 57 | 9 | 199 | 68 | 30 | 119 | 104 | 245 | 32 | 25 |
| 1 | 1.4 | 64-203 | 1 | 73 | 12 | 246 | 84 | 27 | 145 | 127 | 327 | 40 | 30 |
Specific References
- ean13
- 8719482022975
- Maximum protection against corrosive and high-humidity environments.
- Suitable for cleanrooms and food industry applications.
- All components (except bearings) are made of highly corrosion-resistant 304 (V2A) stainless steel.
- Individual adjustment using spacer washers.
- Safety bars provide protection against falls, wheel breakage and impacts. Additionally equipped with an anti-tilt protection system.
- Permanently lubricated ball-bearing wheels ensure smooth and consistent movement.
- Suitable for most commercially available I-beams and H-beams.
- Complies with Machinery Directive 2006/42/EC. Supplied with inspection certificate, EC Declaration of Conformity and operating instructions.
