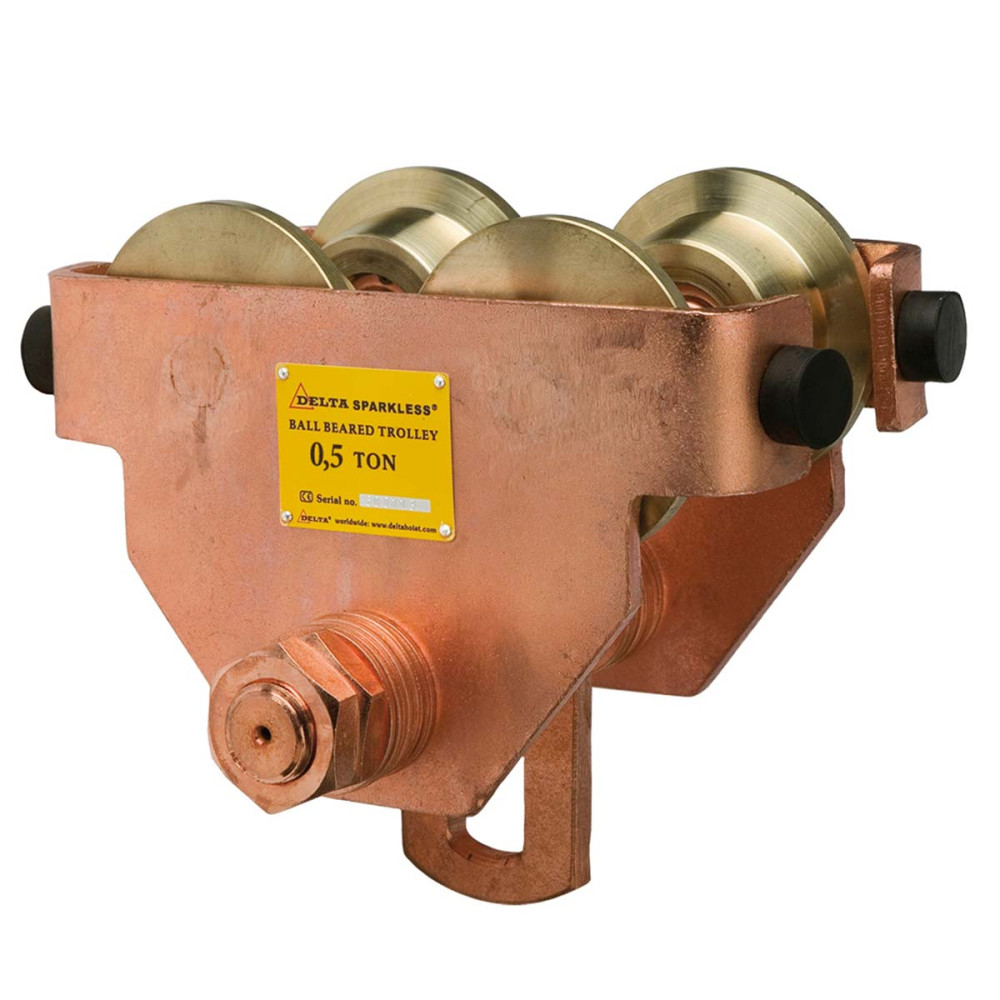

Atex Push Trolley WLL 1 to 5 Tons

Référence: DC.0.03200500
  • ATEX hoist trolley for hazardous environments
  • ATEX Zone 1 CE EX II 2G h IIC T4 / 2D h IIIC T135°C
  • Fully copper-plated, with bronze wheels
  • Complies with the Machinery Directive 2006/42/EC
  • Suitable for most available I-beams and H-beams
  • Supplied with inspection certificate, EC declaration of conformity and user manual

ONLY QUOTATION

€555.00
Tax excluded
Capacity (Kg): 500 Kg
Quantity
Delivery 5 days

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

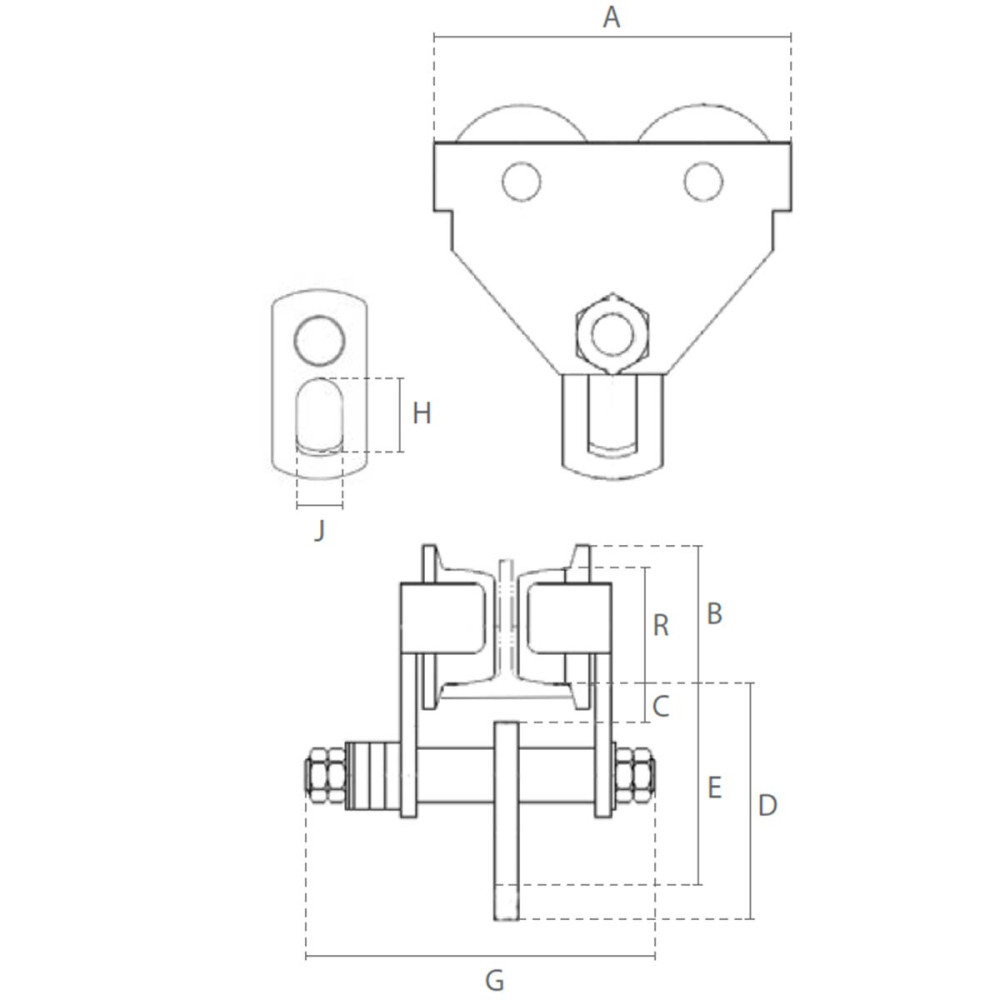

Dimension en mm

Ref ton mm m mm kg A B C D E G H J
DC.0.03200500 0.5 64-140 0.6 58 7 212 70 28 128 113 230 38 24
DC.0.03201000 1 64-140 0.8 75 12 255 88 25 143 128 254 50 30
DC.0.03202000 2 76-165 1.1 90 20.5 302 105 27 172 152 294 60 36
DC.0.03203000 3 76-305 1.4 110 36.8 344 126 32 212 186 446 75 45
DC.0.03205000 5 88-305 1 122 56 378 141 34 254 224 468 95 60
DC.0.03210000 10 125-305 1.3 151 91.9 455 170 37 322 275 505 120 82
DC.0.03220000 20 136-305 4.7 200 230.8 642 238 54 384 314 549 150 110
DC.0.03200500

Specific References

ean13
8719482248764
