• New

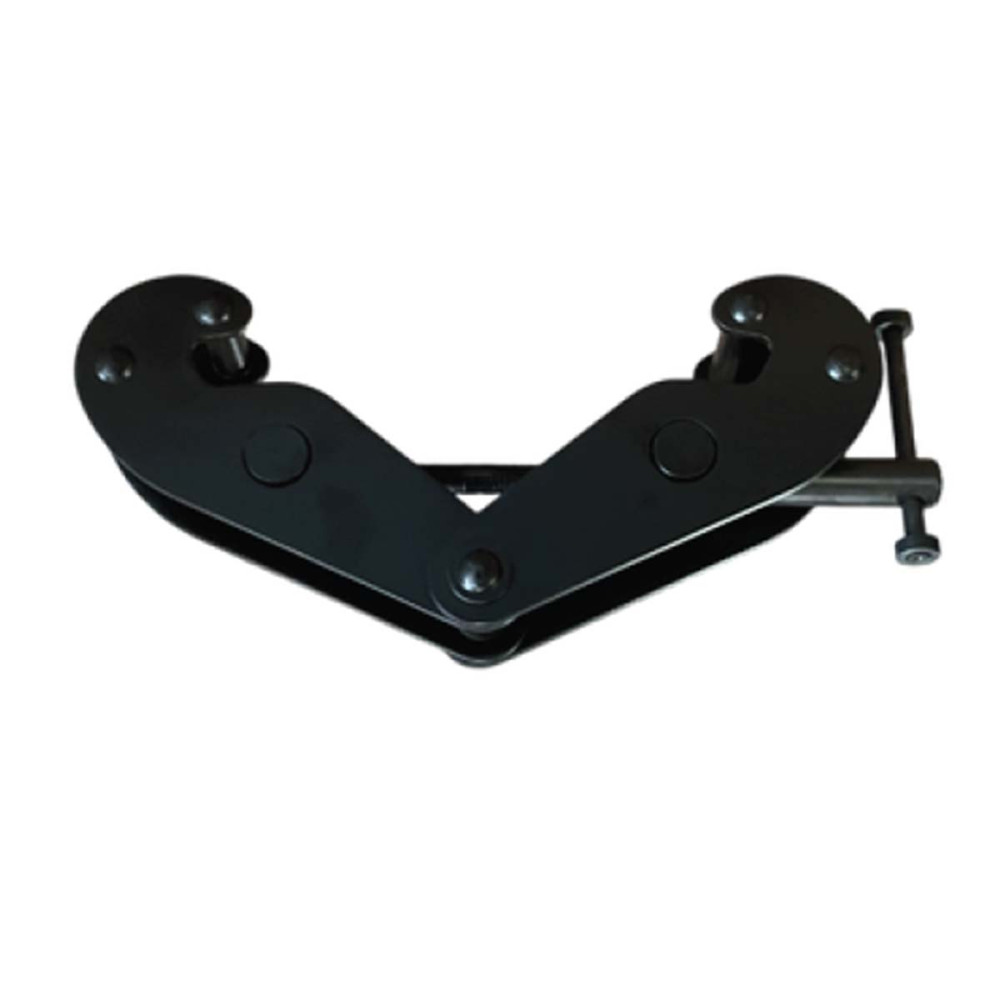

Cardon Beam Clamp

Référence: PP01-C
  • WLL from 1 to 5 tonnes
  • Designed for use as an anchorage point
  • Suitable for I, H, IPN, IPE, HEA and HEB beams
  • Uniform mechanical clamping system
  • Compliant with Machinery Directive 2006/42/EC
  • Supplied with inspection certificate,
  • EC Declaration of Conformity and operating instructions
€41.00
Tax excluded
Capacity (Kg): 1000 Kg
Quantity
Delivery within 72 hours

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

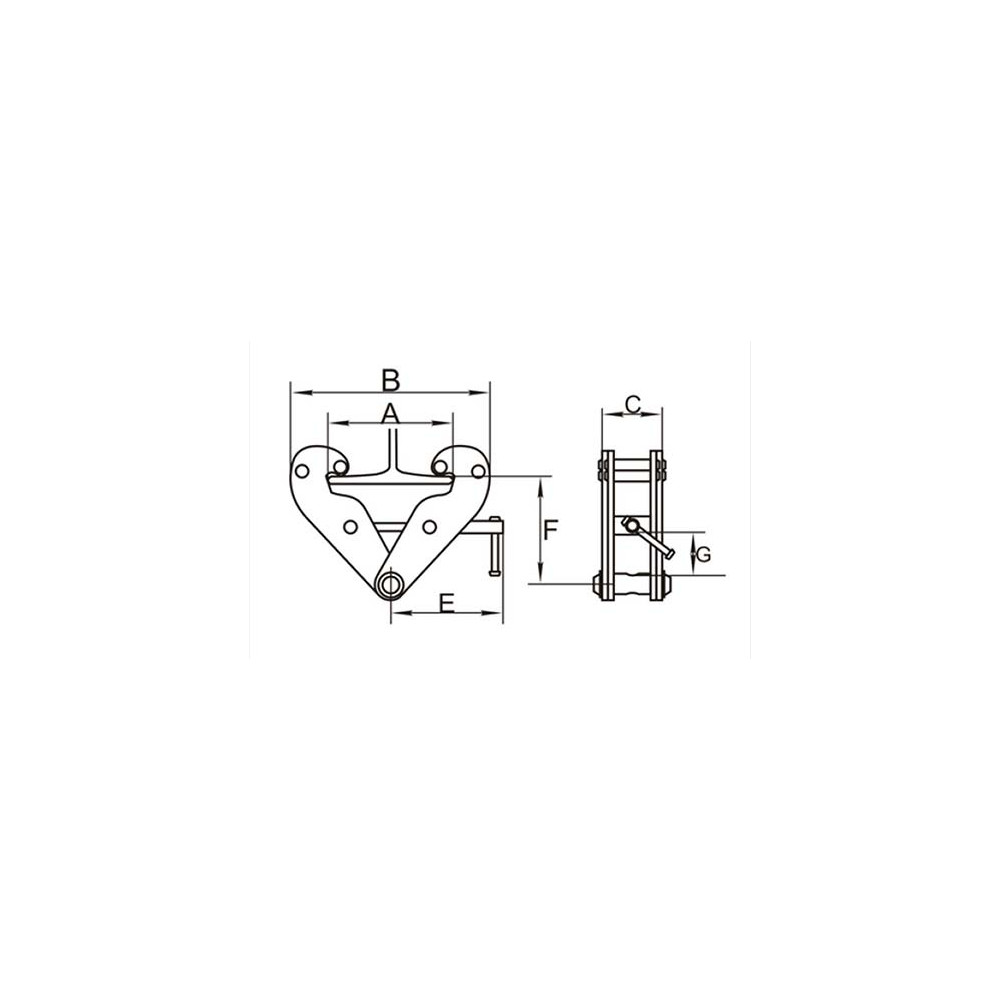

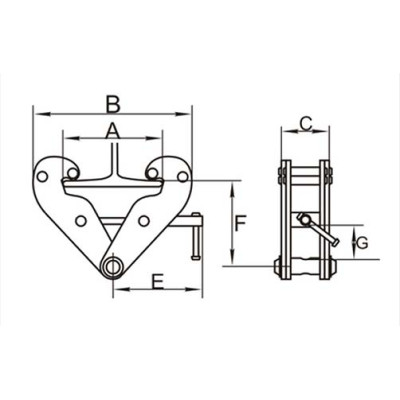

Dimension en Millimètre

WLL (T) width Poutre A B min B max C E F min F max G weight
1 75-220 260 180 360 64 215 102 155 25 4
2 75-220 260 180 360 74 215 102 155 25 5
3 80-320 354 235 490 103 260 140 225 45 10
5 80-320 354 235 490 110 260 140 225 45 11
PP01-C

Specific References

ean13
8719482247224
