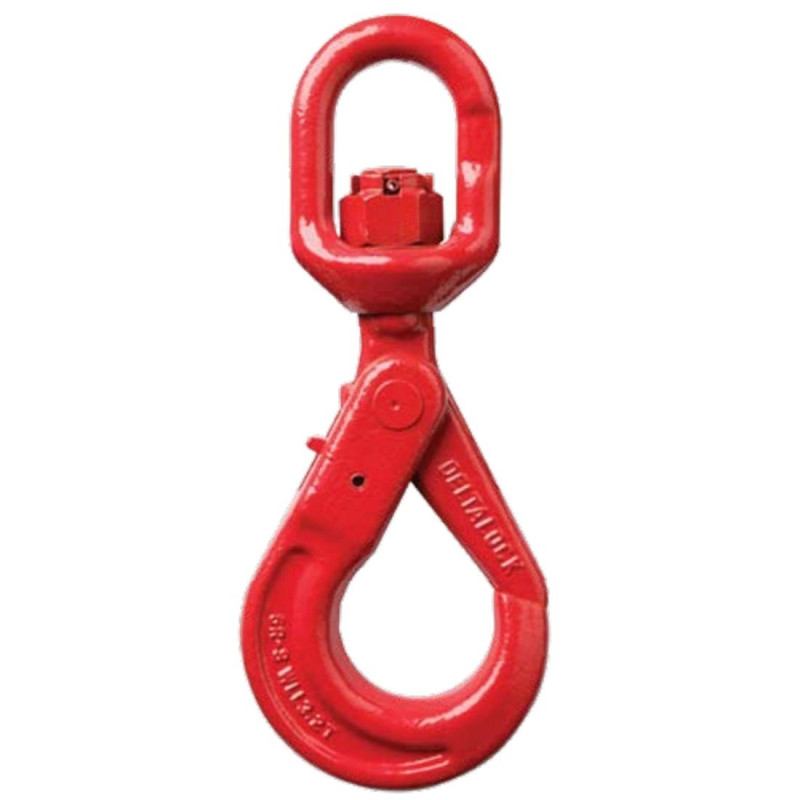

Automatic swivel lifting hook

Référence: CAE06-8

Grade 80 automatic self-locking safety swivel hook

  • EN 1677 standard
  • WLL from 1,120 to 8,000 kg
  • WLL and CE cold-stamped
  • Grade 80
  • Red lacquered finish
€16.90
Tax excluded
Diameter - WLL: Ø6 - 1120 Kg
Quantity
Delivery 72 h

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

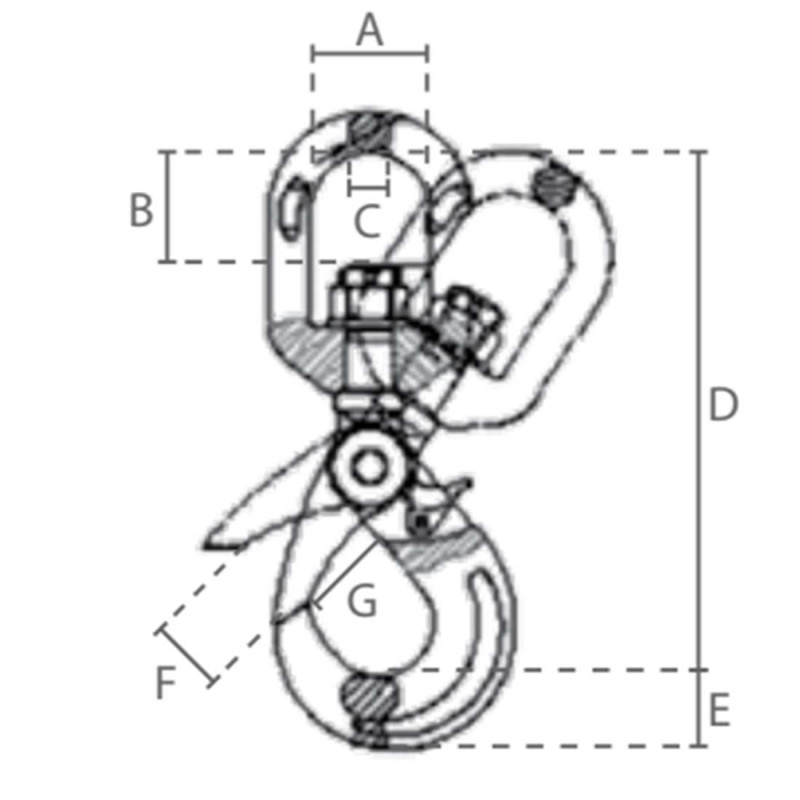

WLL Weight(Kg) A B C D E F G
1.12 T pour chaine Ø6mm 0.7 33 26 12 152 20 32 28
2 T pour chaine Ø8mm 1.2 36 30 13 189 26 40 35
3.15 T  pour chaine Ø10mm 2 42 39 15 223 30 48 45
5.3 T pour chaine Ø13mm 3.6 50 41 16 267 40 57 53
8 T  pour chaine Ø16mm 7.3 61 58 21 339 51 65 63
12.5 T pour chaine Ø20mm 10.7 72 63 27 370 55 82 82
15 T pour chaine Ø22mm 17.5 97 98 31 466 67 80 76

Dimension en mm

CAE06-8

Data sheet

Steel grade
Grade 80
Hook type
Automatic

Specific References

ean13
8719482183294
