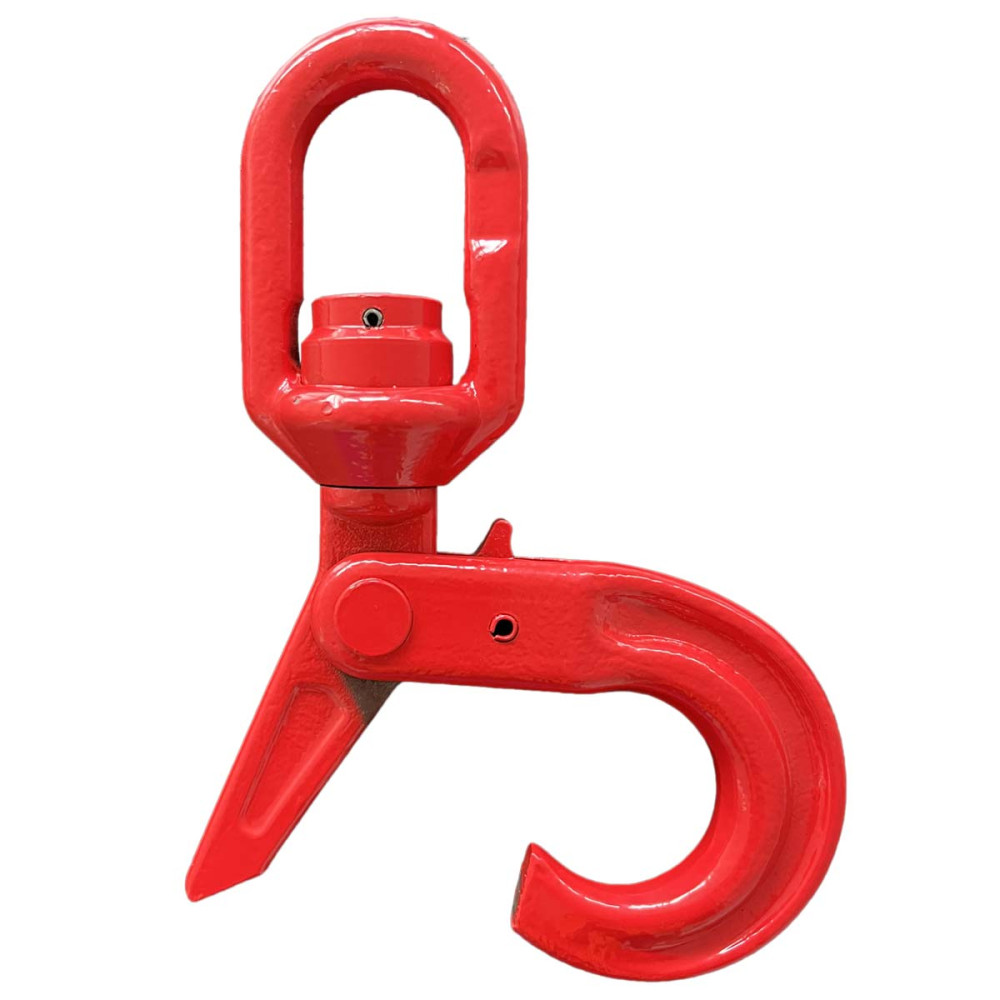

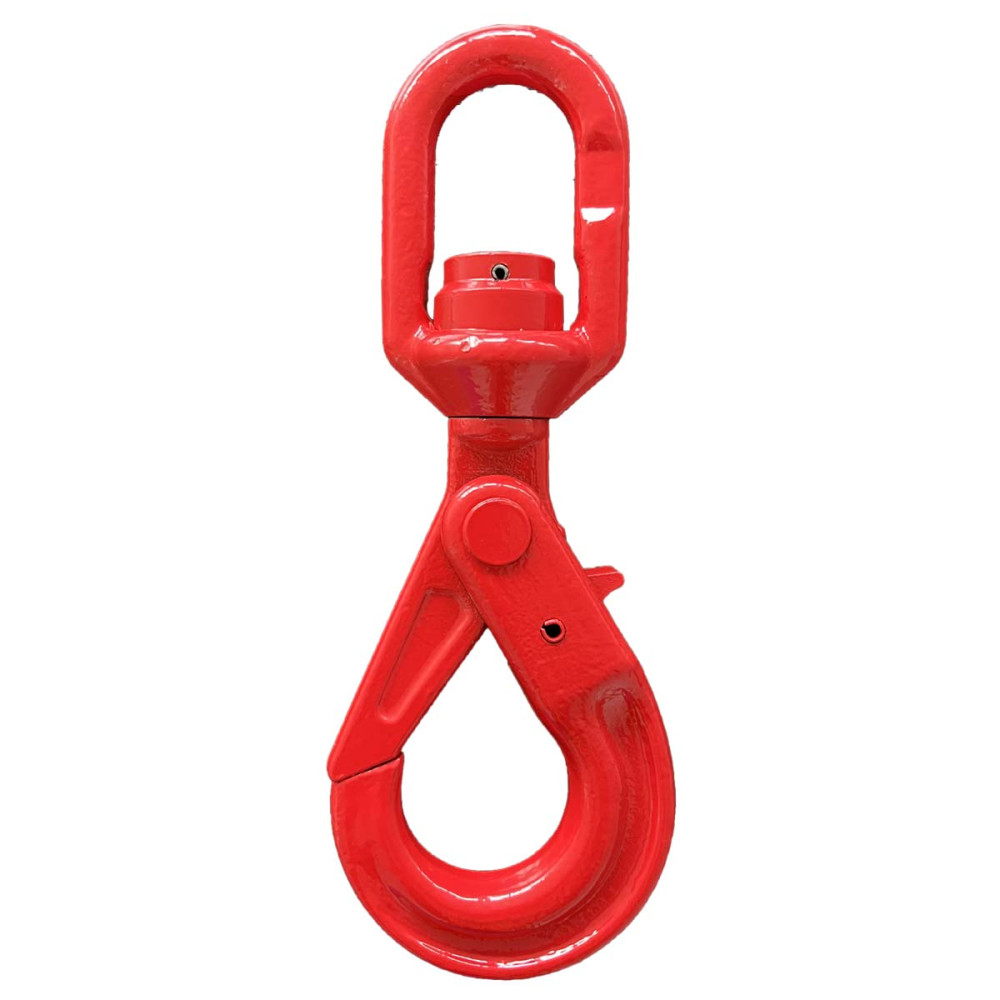

Automatic self-locking ball bearing swivel hook

Grade 80 automatic self-locking ball bearing swivel hook

  • EN 1677 standard
  • Available WLL: 2T, 3.15T, 5.3T and 8T
  • WLL and CE cold-stamped
  • Grade 80
  • Red lacquered finish
€69.00
Tax excluded
Diameter - WLL: Ø10 - 3150 Kg
Quantity
Delivery 72 h

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

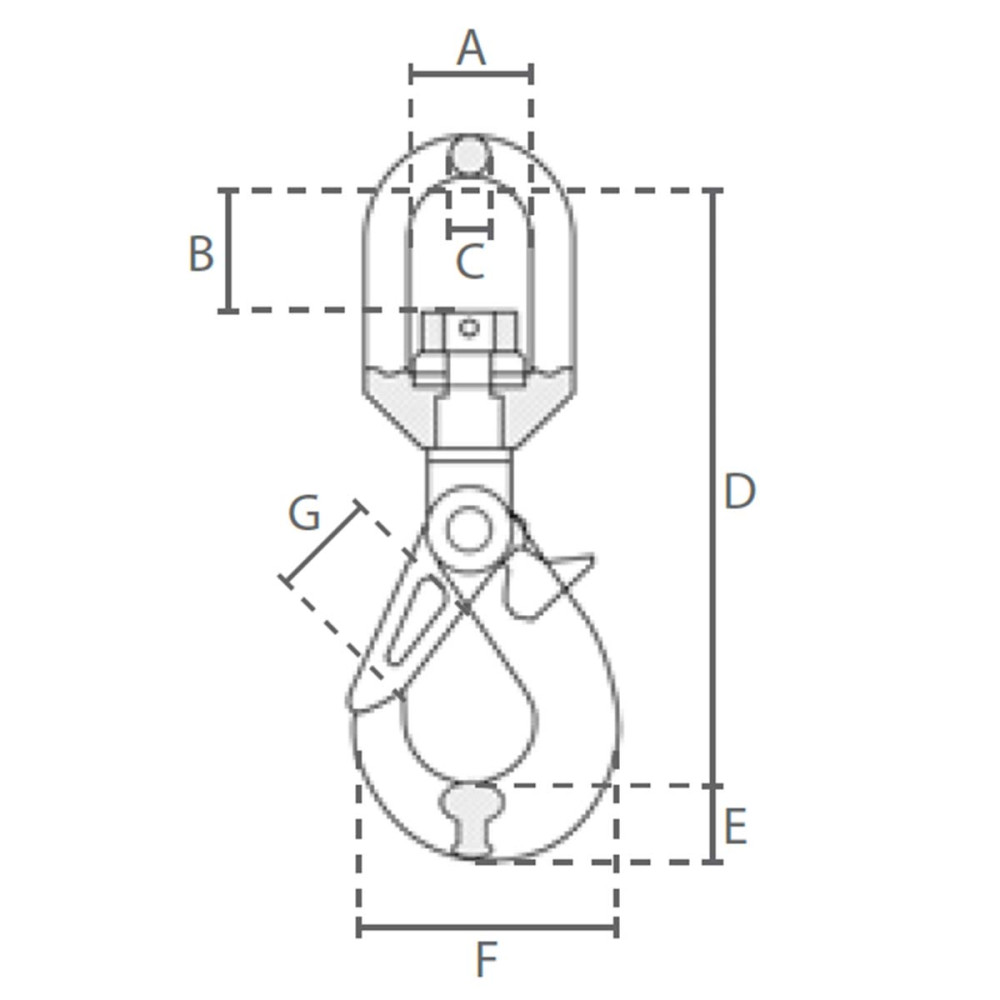

WLL (T) Weight(Kg) A B C D E F G H
1.12 0.7 30 33 11 25 20 69 16 136
2 1 42 36 13 29 23 88 20 170
3.15 1.7 50 42 16 31 30 105 23 205
5.3 3 58 50 17 44 38 135 32 242
8 5.3 64 61 22 45 46 161 38 292
12.5 9.5 86 74 25 56 50 192 49 356

Data sheet

Steel grade
Grade 80
Hook type
Automatic
