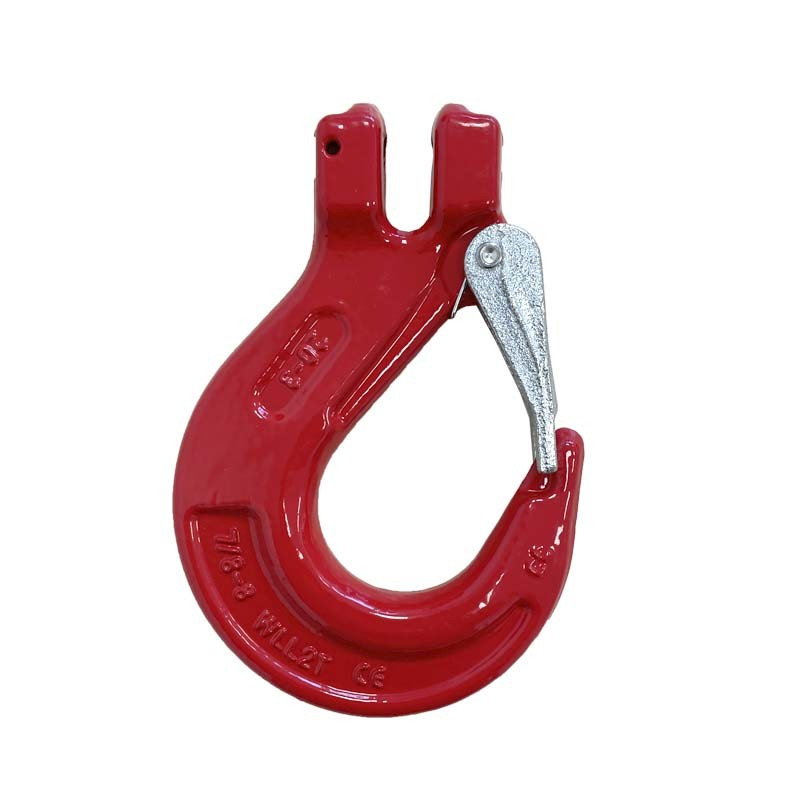

G80 Clevis Latch hook

Référence: CLC06-8

Grade 80 Clevis Sling Hook with Safety Latch

  • Standard EN 1677
  • WLL from 1.12 to 15 tonnes
  • Grade 80 supplied with pin
  • Red painted finish
€4.00
Tax excluded
Capacity (Kg): 1120 Kg
Quantity
Delivery 48-72 H

A minimum shopping cart total of €25.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

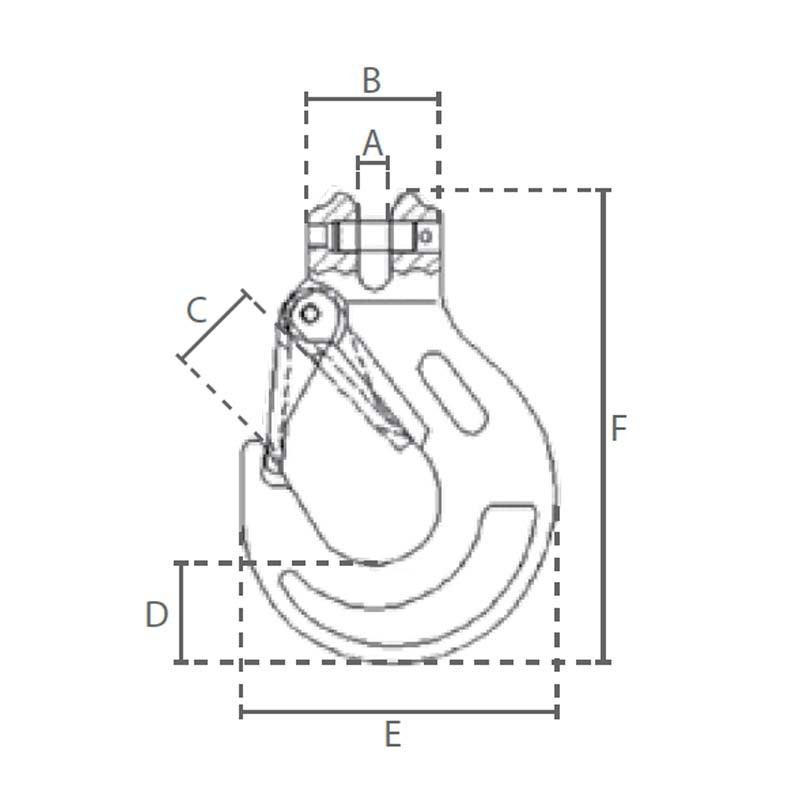

WLL (Kg) Weight (Kg) Ø chain - A B C D E F
1120 0.4 6 mm 32 20 20 68 108
2000 0.6 8 mm 39 24 25 86 131
3150 1 10 mm 48 28 36 106 164
5300 1.5 13 mm 55 35 42 130 196
8000 3.5 16 mm 66 43 47 156 236
12 500 6.8 20 mm 92 52 51 180 281
15 000 10 22 mm 91 70 63 220 315
CLC06-8

Data sheet

Steel grade
Grade 80
Hook type
Latch

Specific References

ean13
8719482306174
