Chain block WLL 1 Ton

Référence: PMCC1000-3

Cardon manual chain hoist. Simple and reliable design for longer service life.

  • G80 chain guaranteed 400 h in saline environment
  • Choice of lifting height: 3 m or 6 m
  • Working Load Limit (WLL) 1000 kg
  • Supplied with certificate of conformity
  • Compliant with Machinery Directive 2006/42/EC
  • Manufacturer: Cardon
  • High-strength steel frame
  • Spare parts available
  • Gear transmission
€120.00
Tax excluded
Capacity (Kg): 1000 Kg
Length: 3 mètres
Quantity

A minimum shopping cart total of €25.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

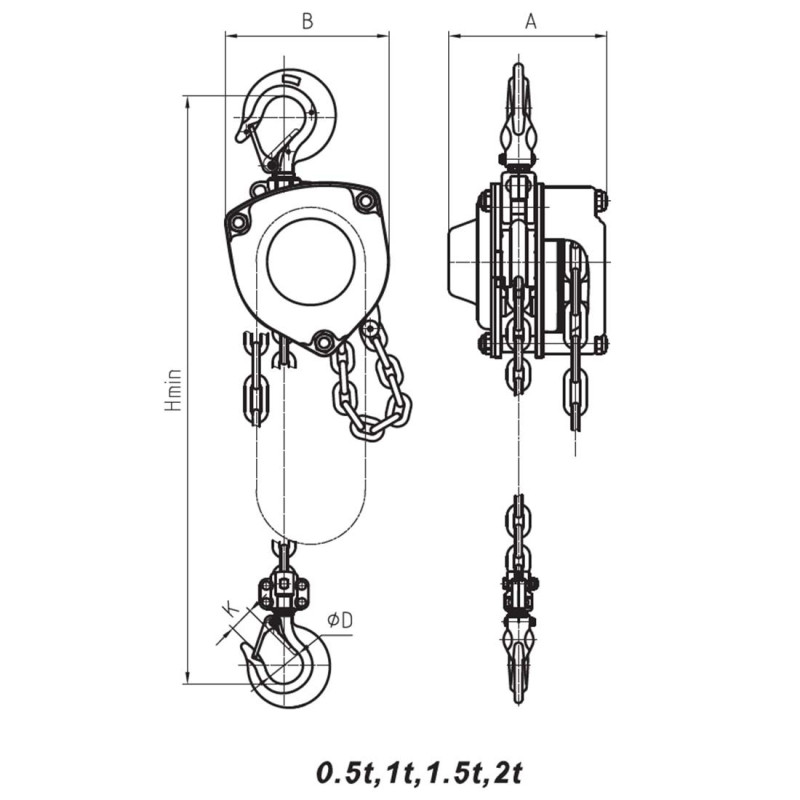

WLL (T) Chaine de charge(mm) up/tour Load factor Proof loadi A B H D K Weight/m sup weightt
0,5 5x15 36,4 mm 210 N 6,13 Kn 128 122 295 35 22 1,4 7
1 6x18 51,7 mm 298 N 12,25 Kn 138,5 148 345 40 26 1,6 10,3
1,5 8x24 63,3 mm 368 N 18,38 Kn 161 175 410 45 29 2,2 15,6
2 8x24 63,3 mm 490 N 24,5 Kn 161 175 431 52 35 2,2 17,6
3 (2 brins) 8x24 126,5 mm 379 N 36,75 Kn 161 232 414 55 39 3,6 24,8
5 (2 brins) 10x30 166,5 mm 460 N 61,25 Kn 180 258 600 68 43 5,2 39,2
10 (4 brins) 10x30 333 mm 488 N 122,5 Kn 194 384 798 85 58 9,5 83,9
