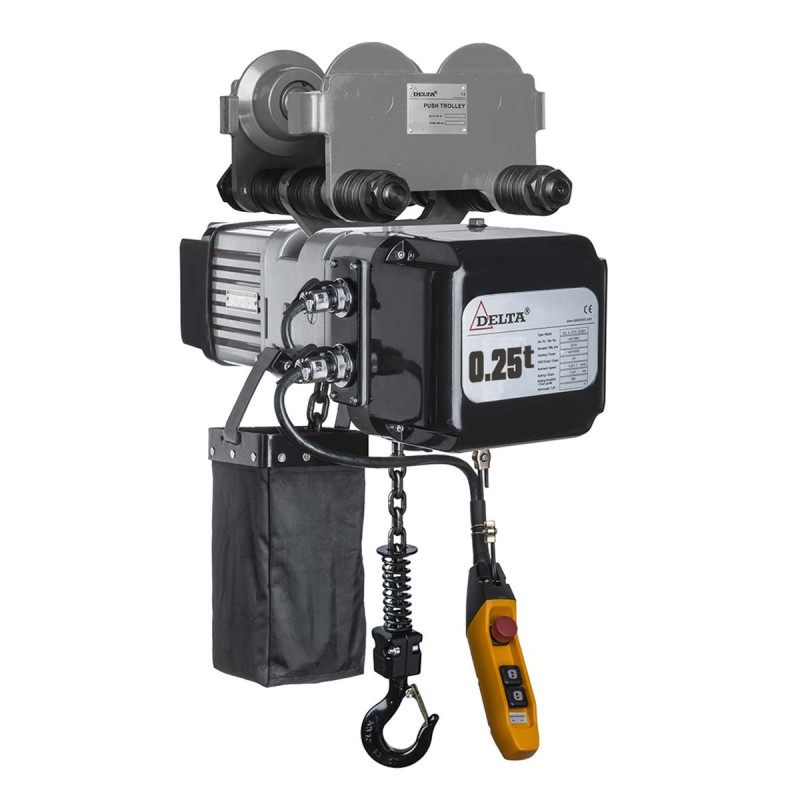

Electric chain hoist with push trolley

Référence: SG.0.DTY.00252.03
  • 2 lifting speeds | Rud® lifting chain Single strand compliant with EN 818-7
  • Lifting capacity: 250 to 2,000 kg, Lifting chain length: 3 to 10 m
  • 6 m wired remote control, 24 V | Three-phase 400 V power supply, 1 m cable (no plug)
  • Quote available on request, Manufacturer: DeltaHoist

Available on quotation only

€1,239.00
Tax excluded
Capacity (Kg): 250 Kg
Length: 3 mètres
Quantity
Delivery 7 days

A minimum shopping cart total of €25.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

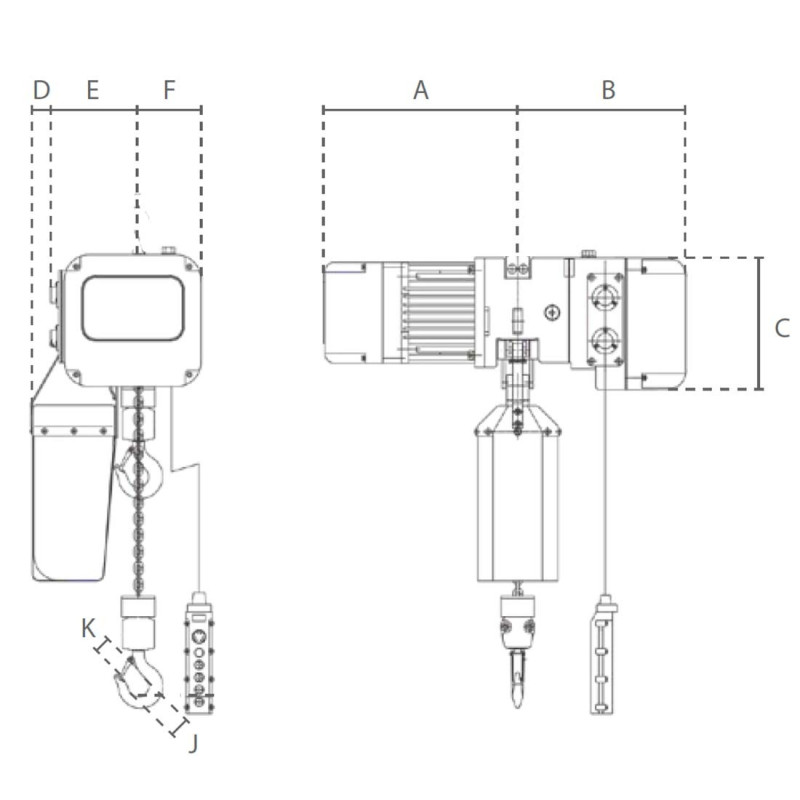

Elecric hoist specifications

WLL (T) Up speed  Ø chain(mm) Nb legs  Power (kw) A B C D E F H J K
0.25 7/2.3 5X15 1 0.45/0.15 307 307 214 80 142 102 480 40 25
0.5 7.6/2.5 6,3X19 1 0.9/0.3 334 307 214 80 142 102 480 40 25
1 5/1.7 8X24 1 1.1/0.37 354 307 214 80 142 102 510 45 31
2 5.3/1.8 10X30,2 1 3/1 481 336 260 80 185 165 665 53 38

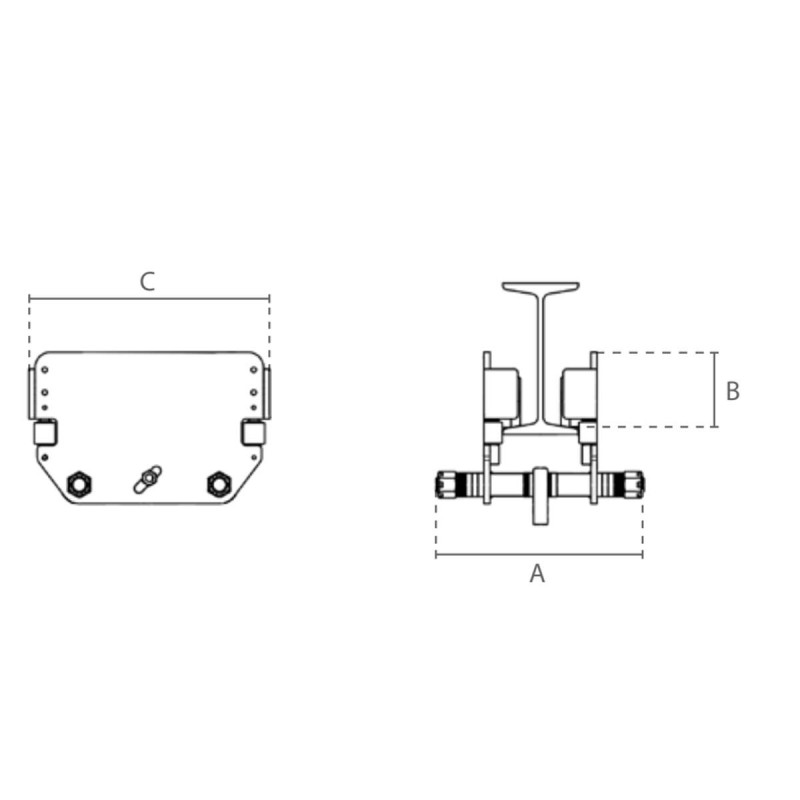

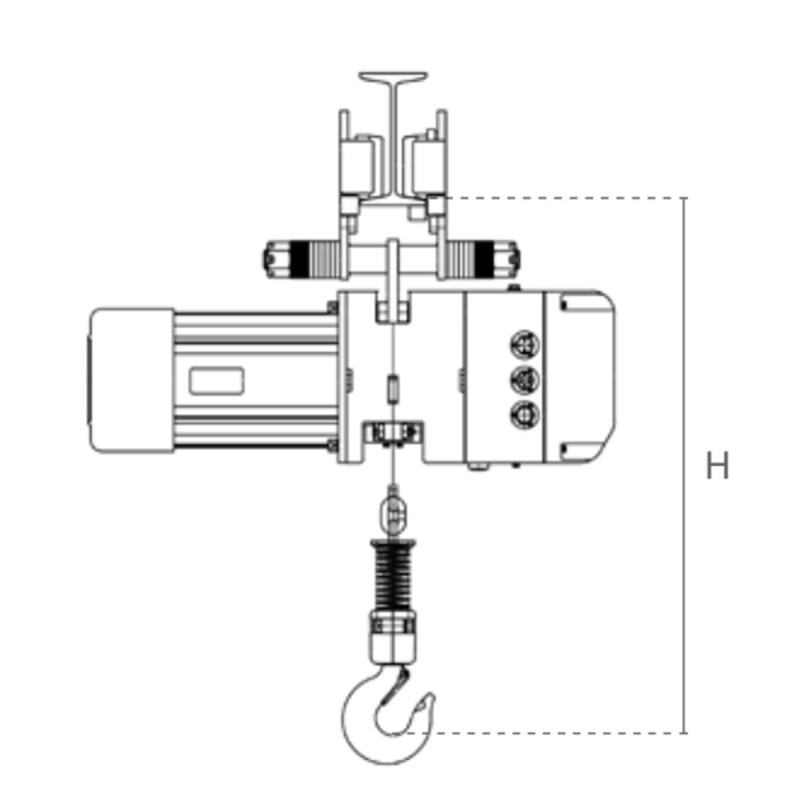

Manual Trolley Specifications

WLL (T) Beam width Weight hoist+chariot Rayon min Ø roue A B C Hauteur H
0.25 74-300 72 Kg 2.5 68 424 75 270 480
0.5 74-300 73 Kg 2.5 68 424 75 270 480
1 74-300 79 Kg 2.5 68 424 75 270 510
2 88-300 158 Kg 5 96 466 110 330 665
SG.0.DTY.00252.03

Data sheet

Motorisation
Electrique
Voltage
Three-phase

Specific References

ean13
8719482019982
