- New

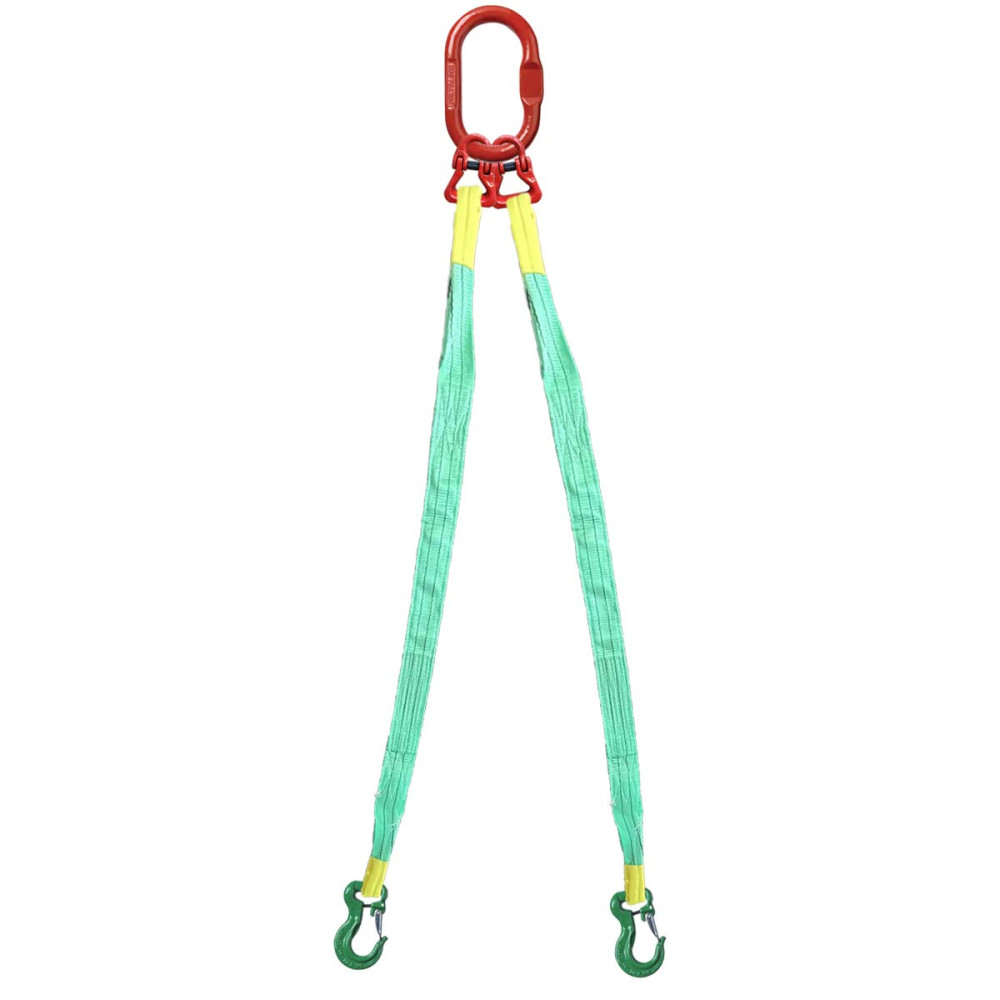

2-Leg Textile Sling 2.8 Tons
2-leg textile sling with latch hook | WLL 1,400 kg
- CE standard: EN 1492-2 + A1 | safety factor 4
- Supplied with certificate of conformity | identification tag
- Easier to handle, but more fragile

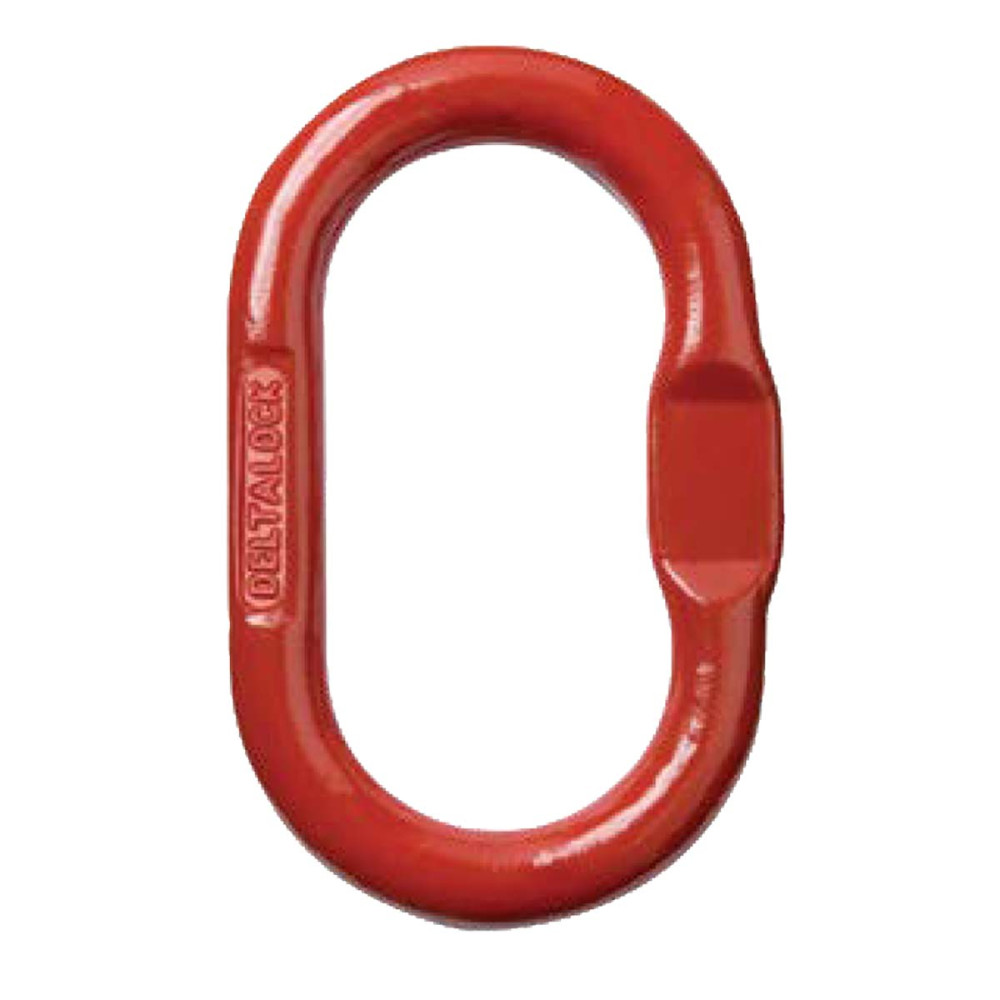

- Master link 1,600 kg | hook 1,000 kg

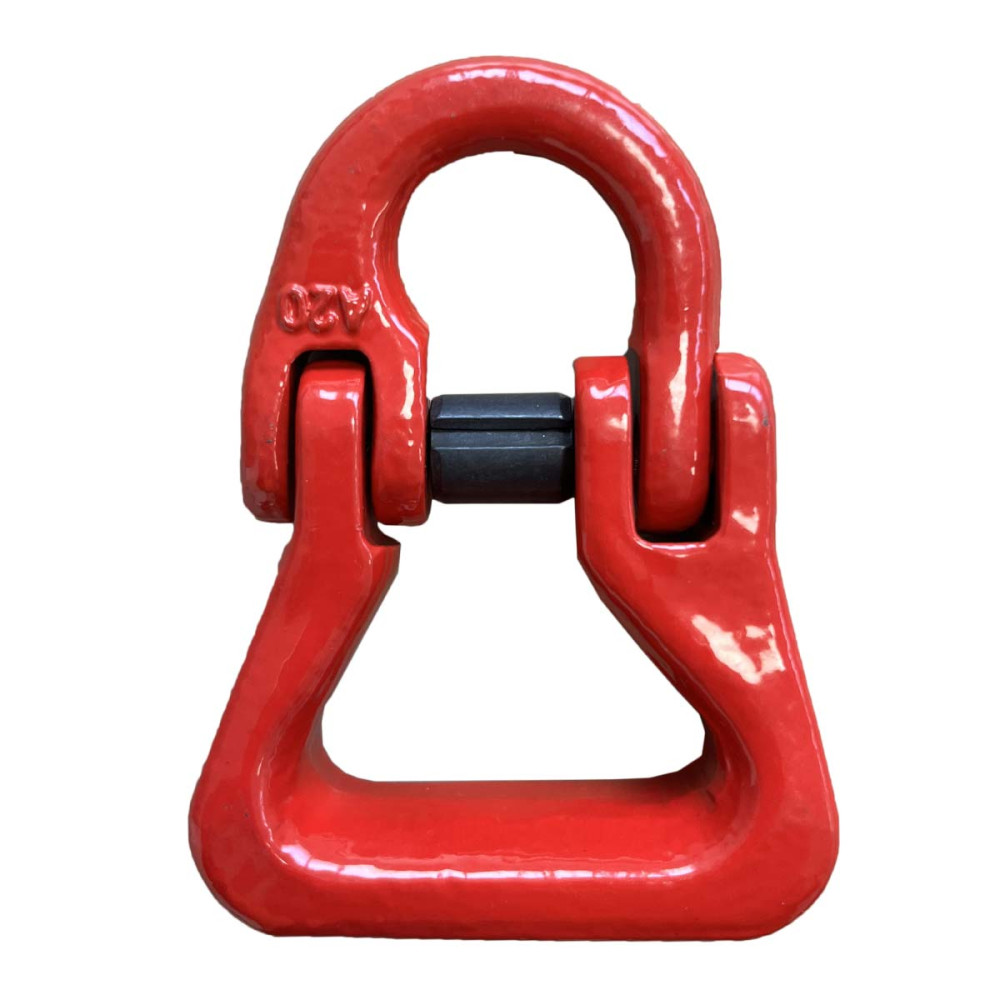

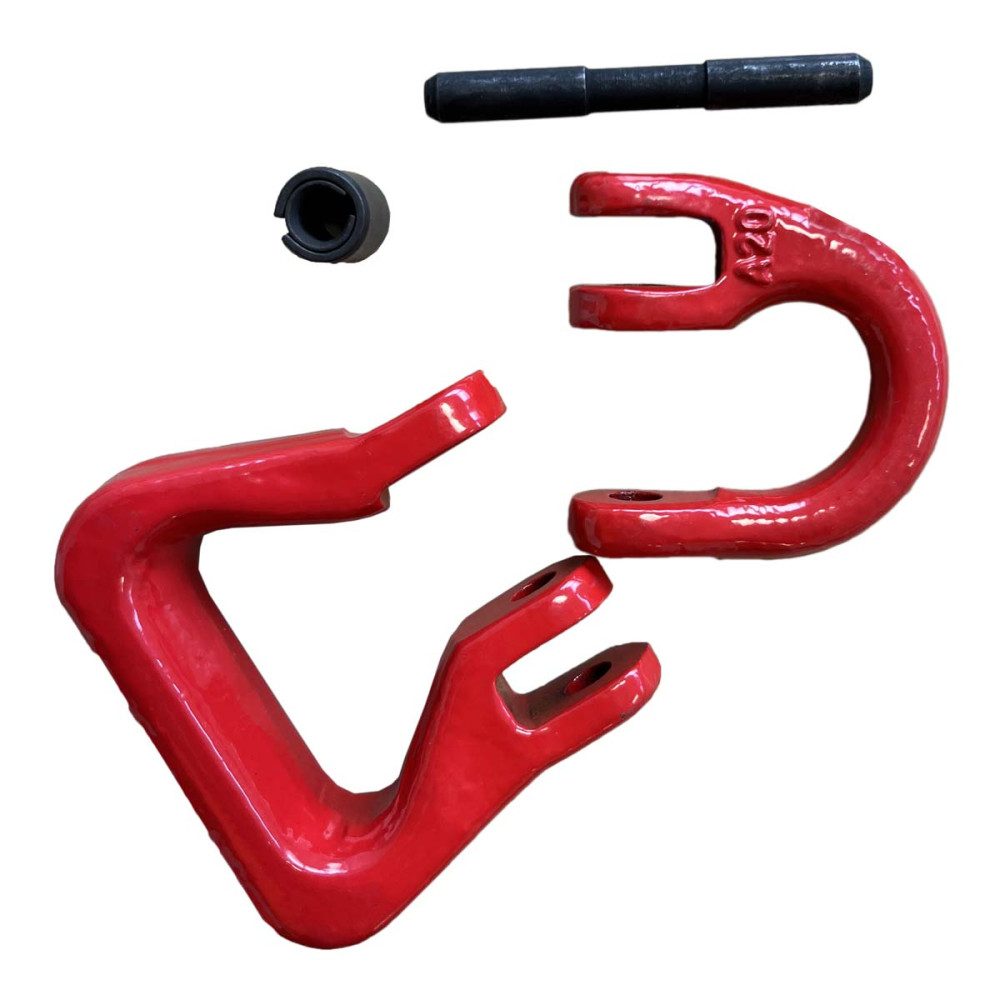

- Connecting link for webbing sling or round sling
- Available sling lengths: 1 m, 1.5 m, 2 m and 3 m

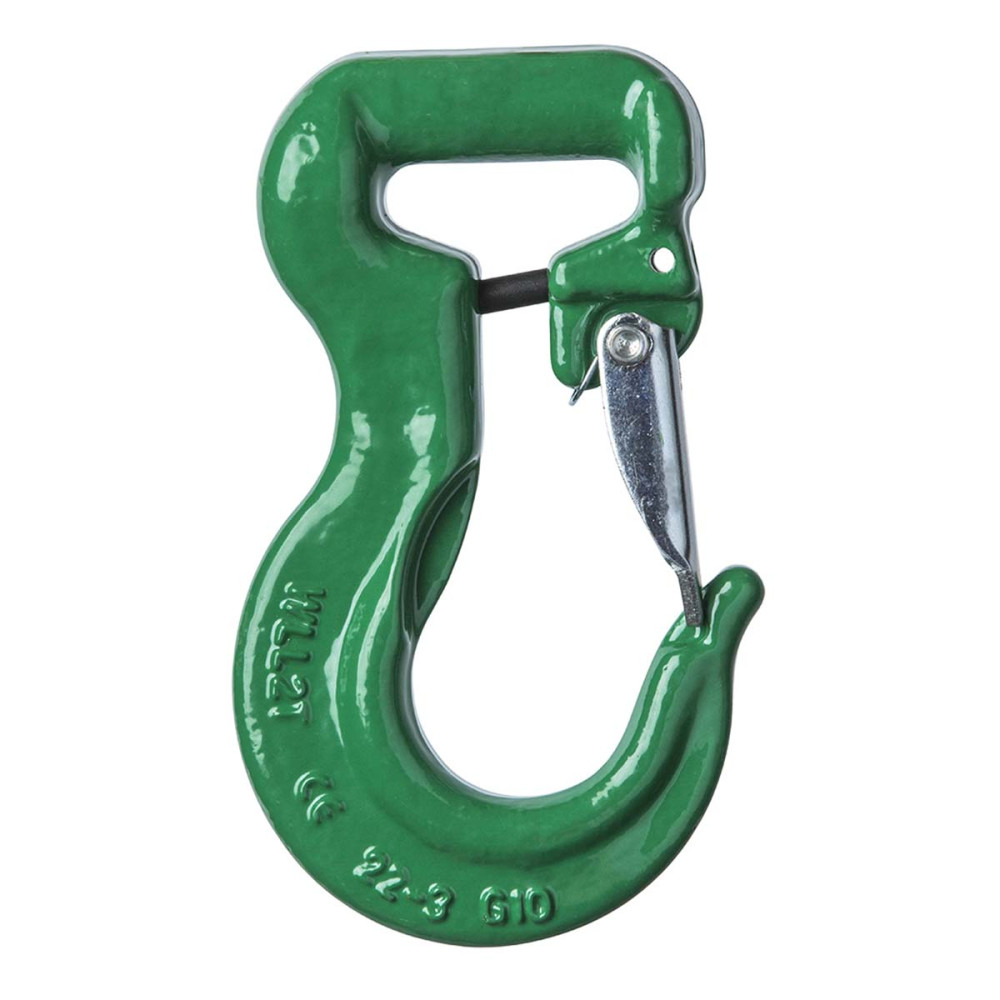

- Hook (joker) for round sling with webbing retention by pin
- Equipment subject to annual periodic inspection (VGP)
- Contact us for PVC sleeve protection
WLL Table for Textile Slings
Compliant with EN 1492-1 / EN 1492-2 standards
| Color | WLL 1 leg | WLL 2 legs beta 0° - 45° |
WLL 4 legs beta 0° - 45° |
|---|---|---|---|
| Purple | 1 T | 1.4 T | 2.1 T |
| Green | 2 T | 2.8 T | 4.2 T |
| Yellow | 3 T | 4.2 T | 6.3 T |
| Grey | 4 T | 5.6 T | 8.4 T |
| Red | 5 T | 7 T | 10 T |

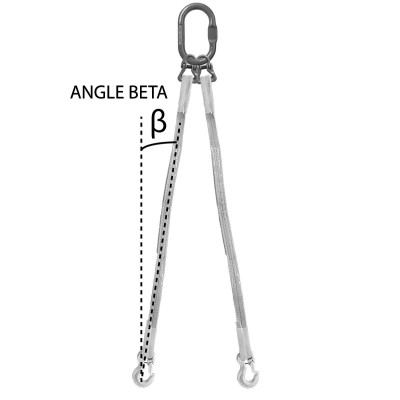

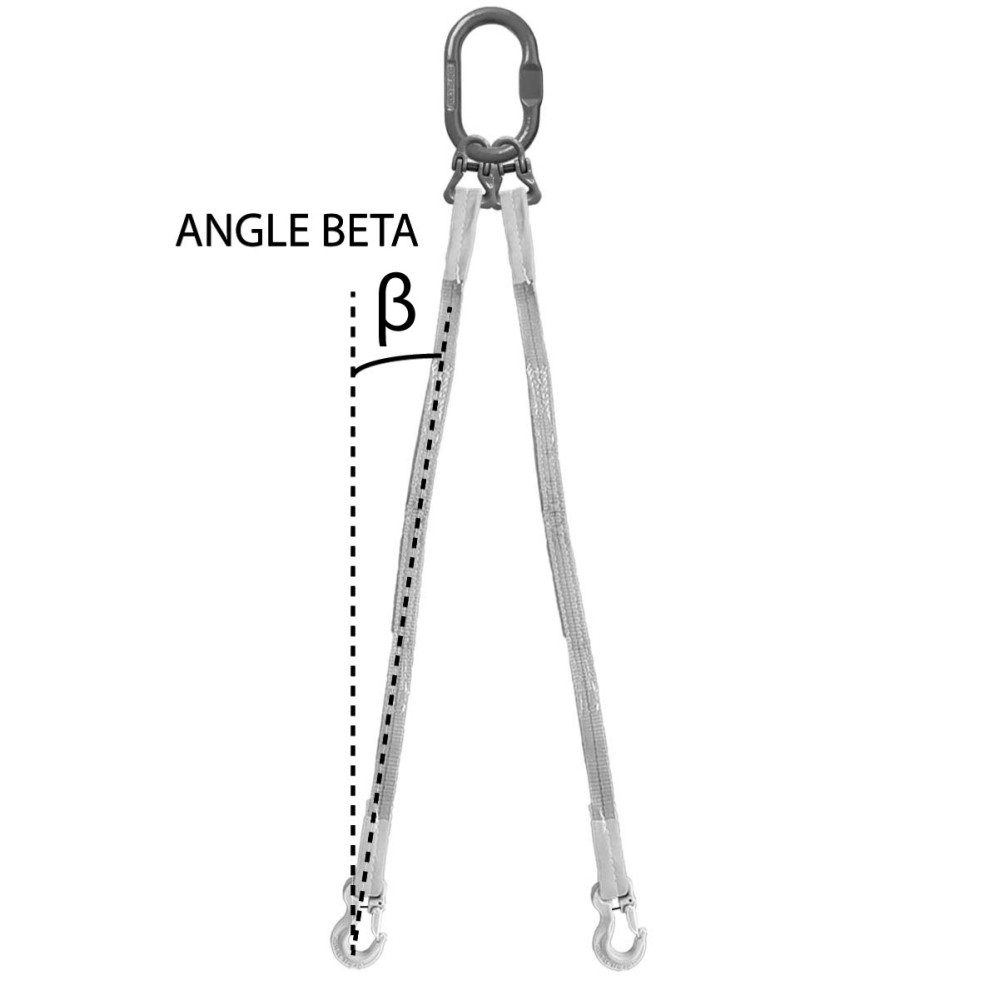

Working angle beta: 0° to 45° maximum. This is the angle formed between the vertical line and the sling
Maximum WLL: 10 tons
Data sheet
- Sling Type
- Synthetic
- Type sangle

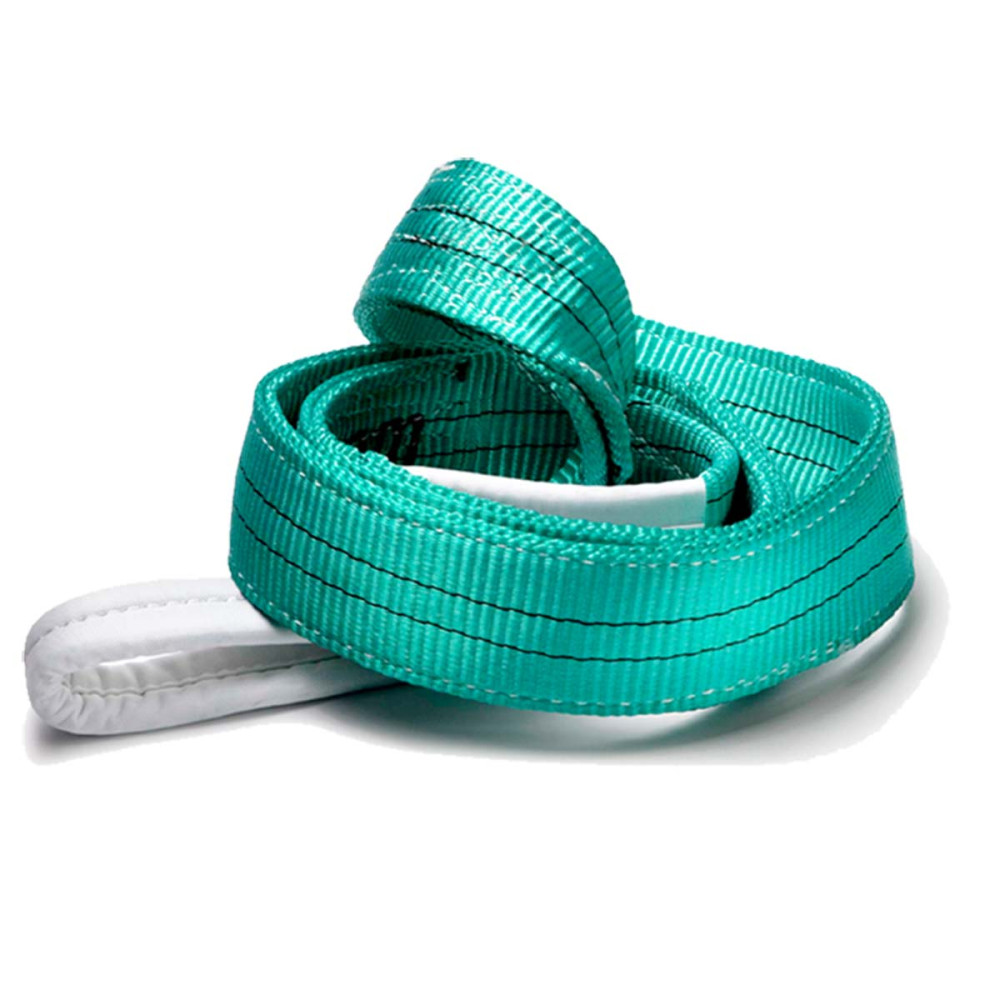

- Flat
2-leg textile sling with latch hook | WLL 1,400 kg
- CE standard: EN 1492-2 + A1 | safety factor 4
- Supplied with certificate of conformity | identification tag
- Easier to handle, but more fragile
- Master link 1,600 kg | hook 1,000 kg
- Connecting link for webbing sling or round sling
- Available sling lengths: 1 m, 1.5 m, 2 m and 3 m
- Hook (joker) for round sling with webbing retention by pin
- Equipment subject to annual periodic inspection (VGP)
- Contact us for PVC sleeve protection
