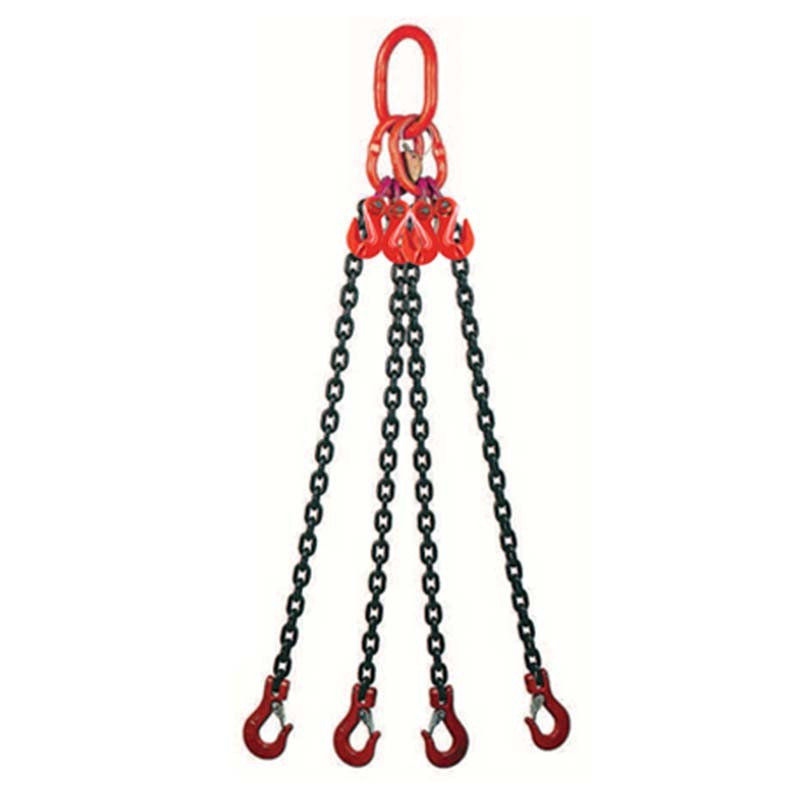

4‑Leg Chain Sling with latch Hooks and Load Shortener

Référence: EC4BCLCR6-1
  • According to EN818-4 CE standards
  • Delivered assembled with identification tag
  • Chain diameter from 6 to 20 mm
  • Grade 80, length 1 to 10 meters

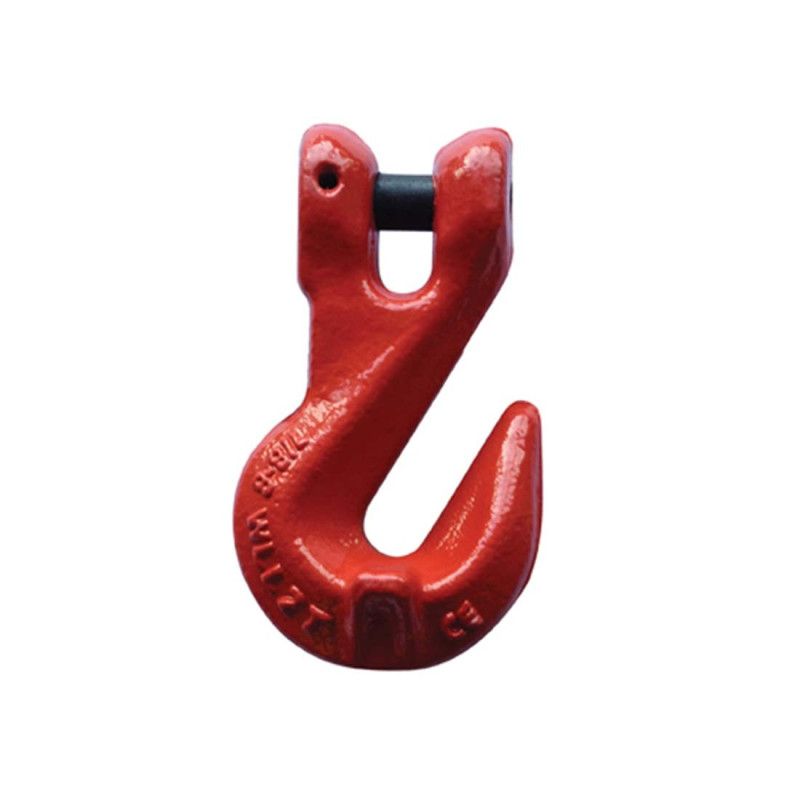

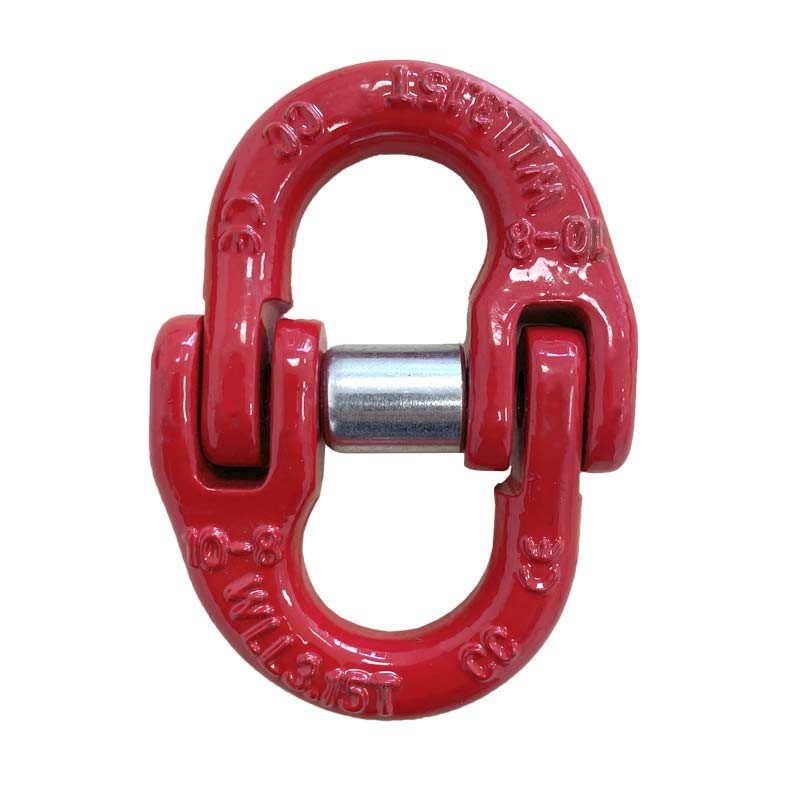

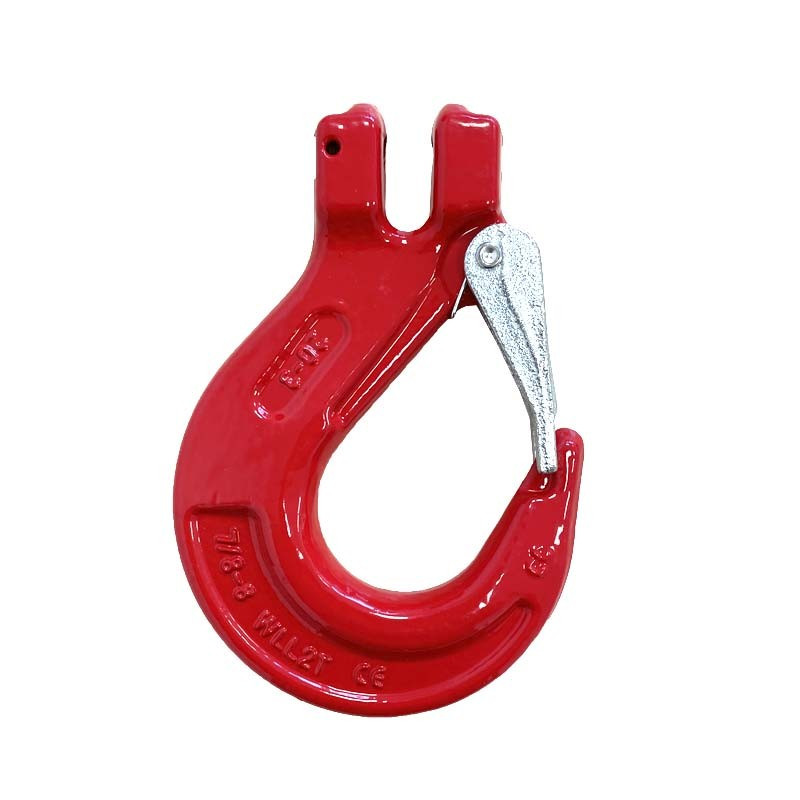

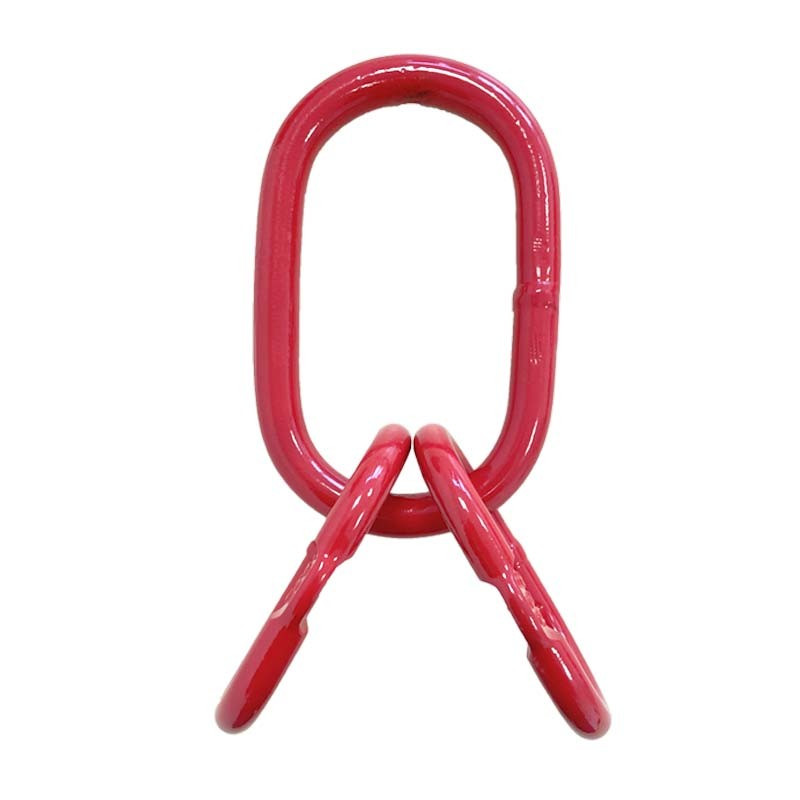

  • 4 Clevis hooks + 1 triple master link + 4 connecting links + 4 load shorteners
  • The sling length is not the chain length
  • For a specific length, please feel free to contact us
€147.00
Tax excluded
Length: 1 mètre
Diameter - WLL: Ø6 - 2350 Kg
Quantity
Delivery 24-48H

A minimum shopping cart total of €25.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).
Ø chain(mm) WLL(T) 1 leg WLL(T) 2 legs
β < 45°		 WLL(T) 2 legs
45° < β <60°		 WLL(T) 4 legs
β < 45°		 WLL(T) 4 legs
45° < β < 60°
6 1.12 1.6 1.12 2.35 1.7
8 2 2.8 2 4.25 3
10 3.15 4.2 3.15 6.7 4.75
13 5.3 7.5 5.3 11.2 8
16 8 11.2 8 17 11.8
20 12.5 17 12.5 26.5 19
22 15 21.2 15 31.5 22.4
26 21.2 30 21.2 45 31.5
32 31.5 45 31.5 67 47.5
EC4BCLCR6-1

Data sheet

Sling Type
Chain
Number of legs
4 brins
Steel grade
Grade 80
Hook type
Latch
Shortner
Yes
