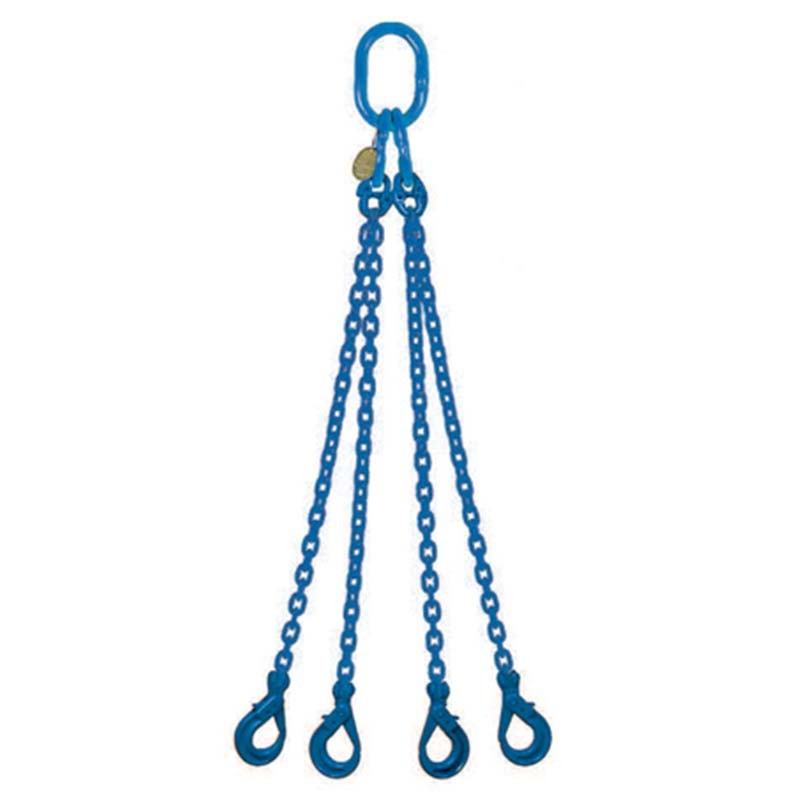

4 leg chain sling with self-locking hooks
Référence: ECG1004BCAC8-1
Grade 100 four-leg chain sling for lifting loads from 3,000 to 21,200 kg
- In accordance with EN 818-4, CE marked
- Supplied assembled with identification plate

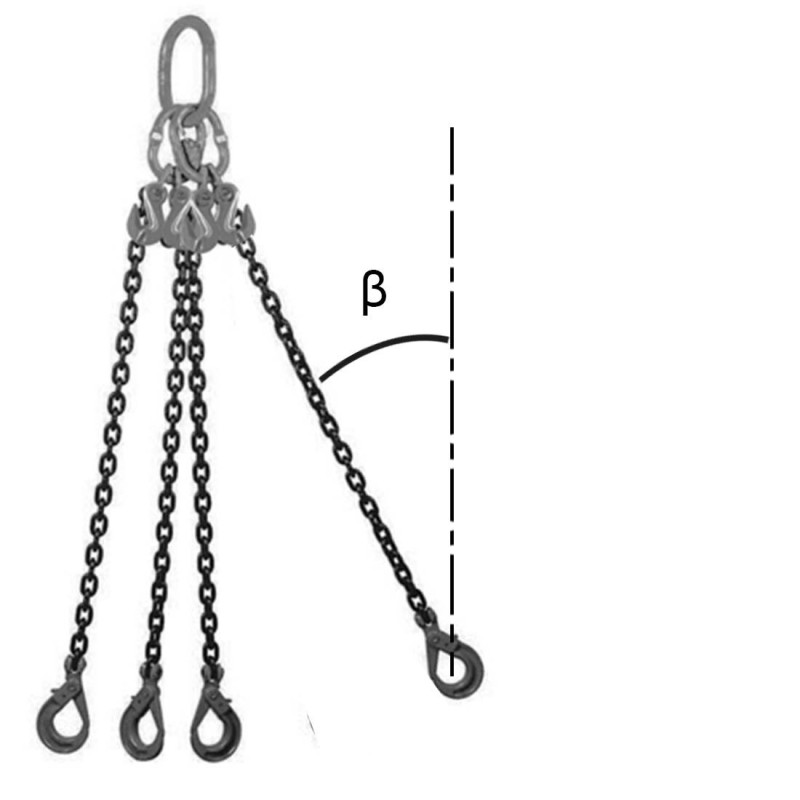

- WLL with angle β < 45°

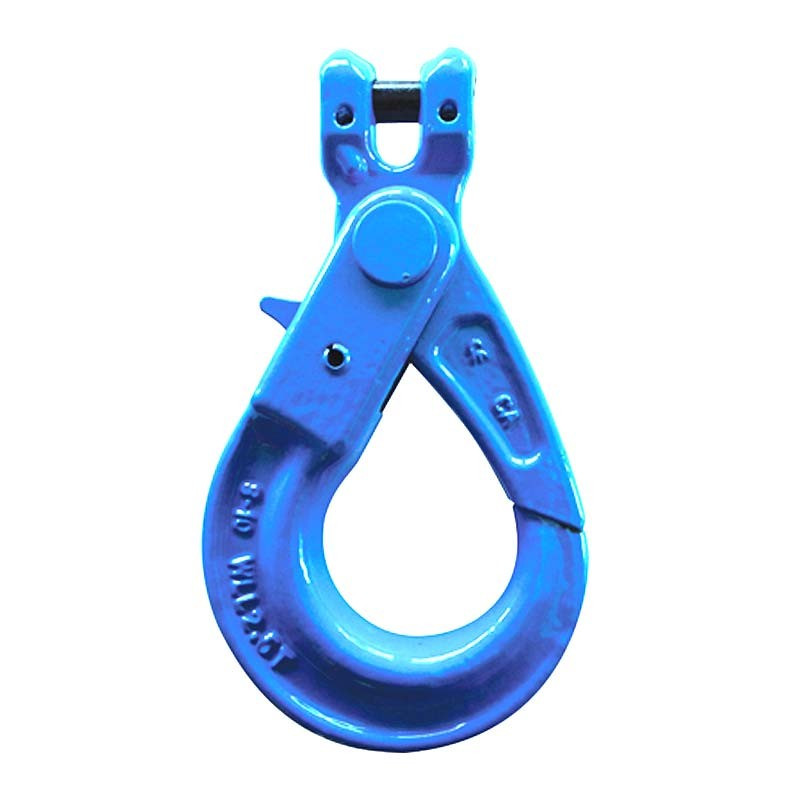

- 4 self-locking clevis hooks with pins attached to the chains
- Chain Ø 6 to 16 mm
- Grade 100, length from 1 to 5 meters

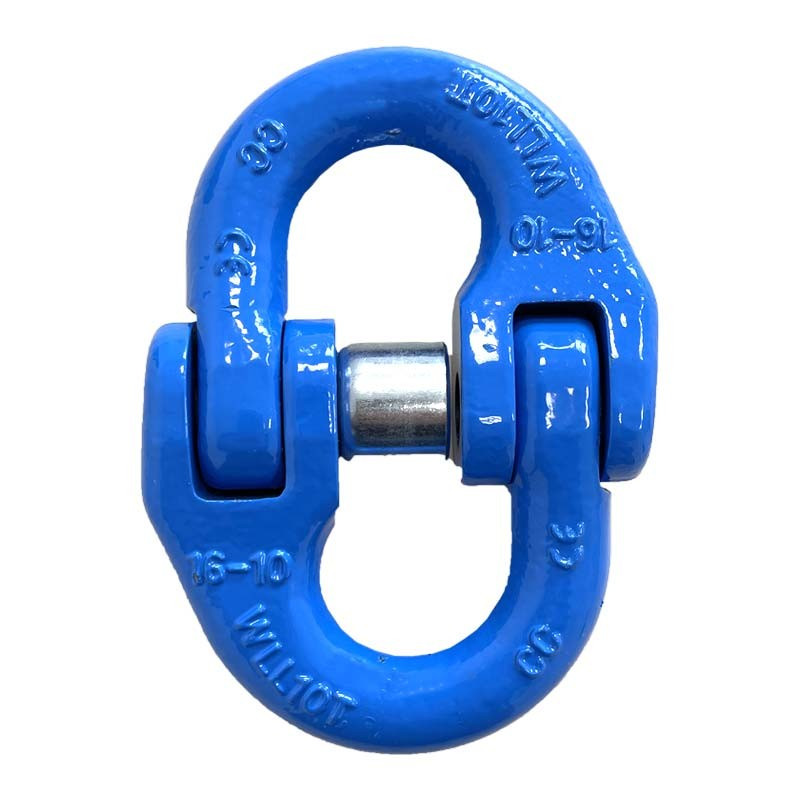

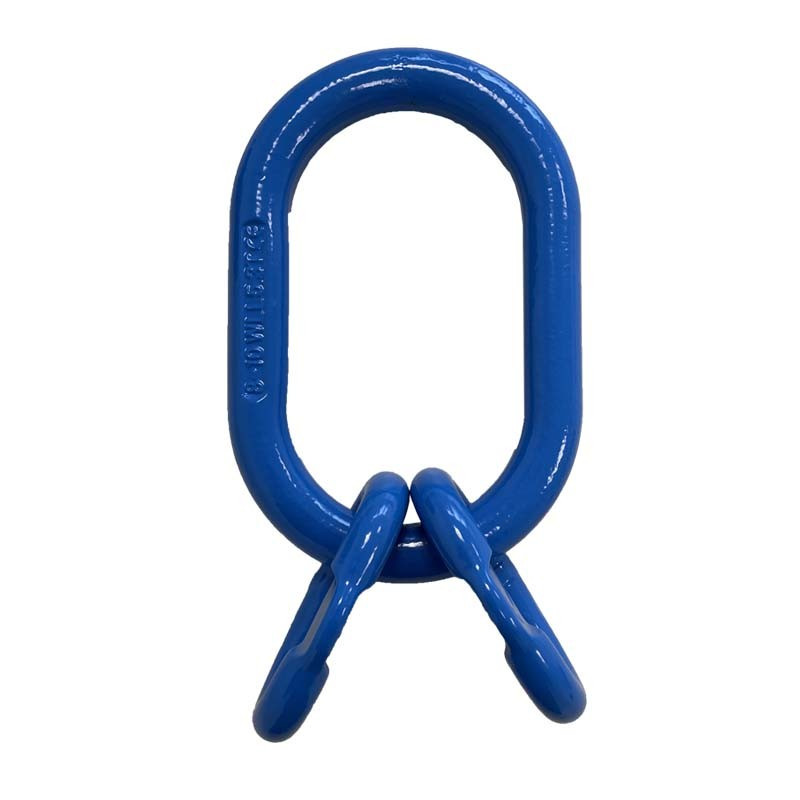

- 1 triple master link and 4 connecting links

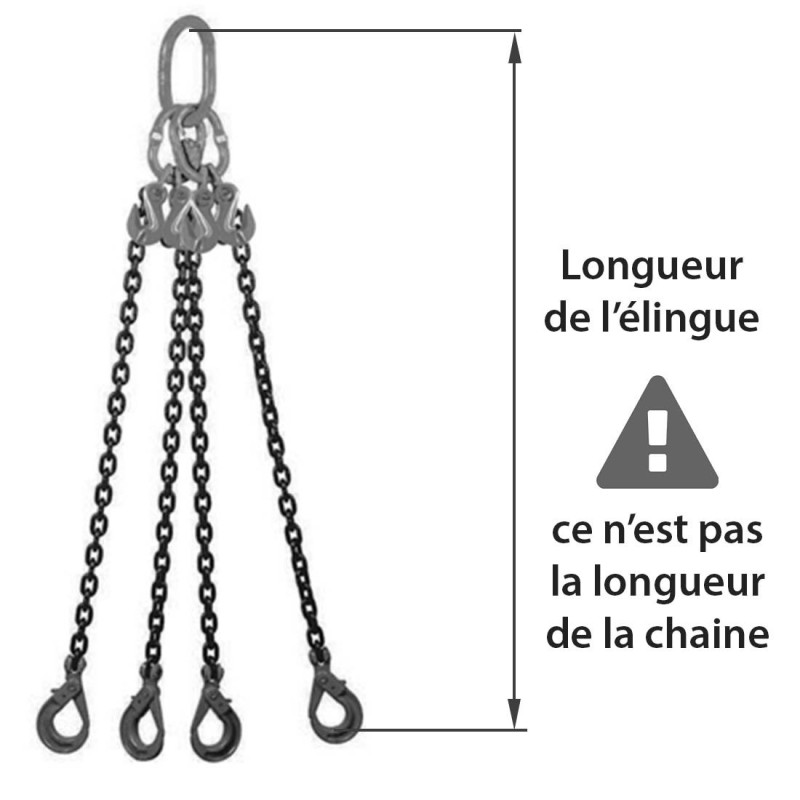

- The sling length is not the same as the chain length
- For a specific length, please contact us
ECG1004BCAC8-1
Data sheet
- Sling Type
- Chain
- Number of legs
- 4 brins
- Steel grade
- Grade 100
- Hook type
- Automatic
- Shortner
- No
