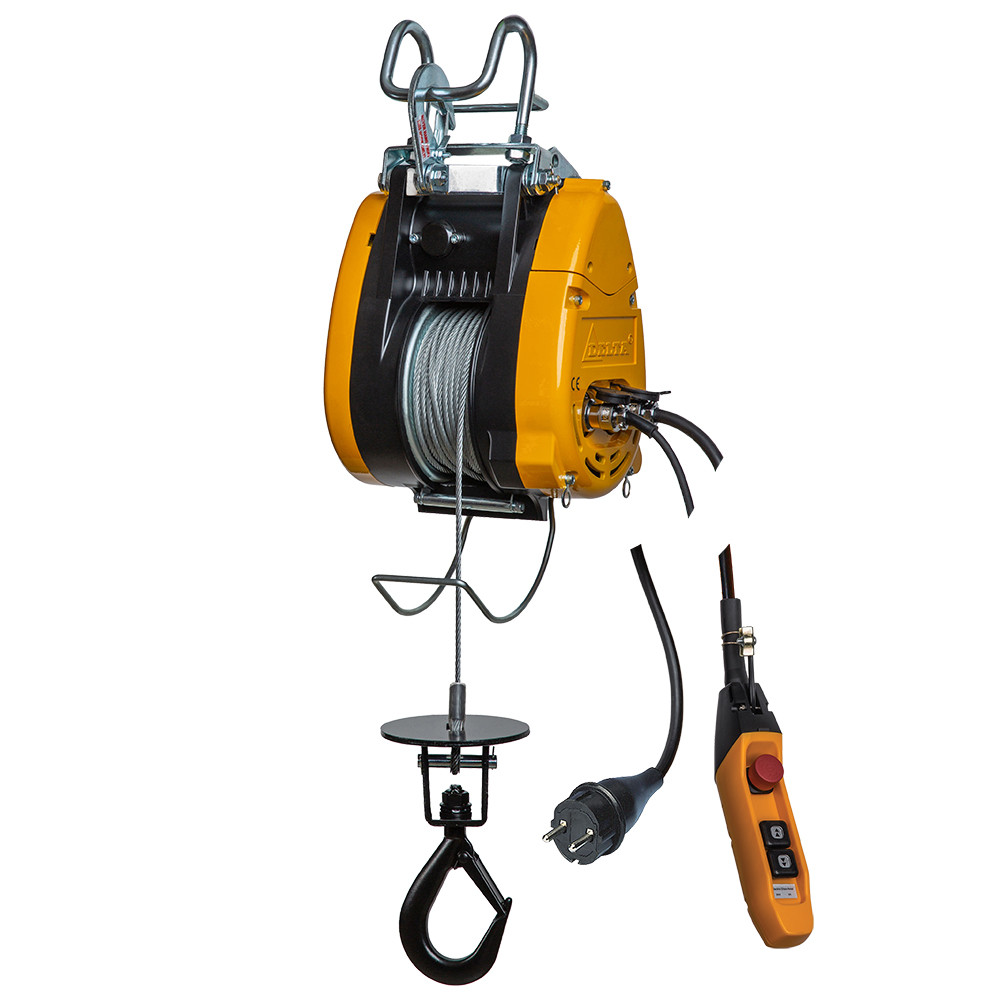

230V Electric Lifting Winch

Référence: CP.0.DKL.160

Certificate of conformity supplied
Compliant with EN 14492-2 and CE requirements
230 V single-phase power supply

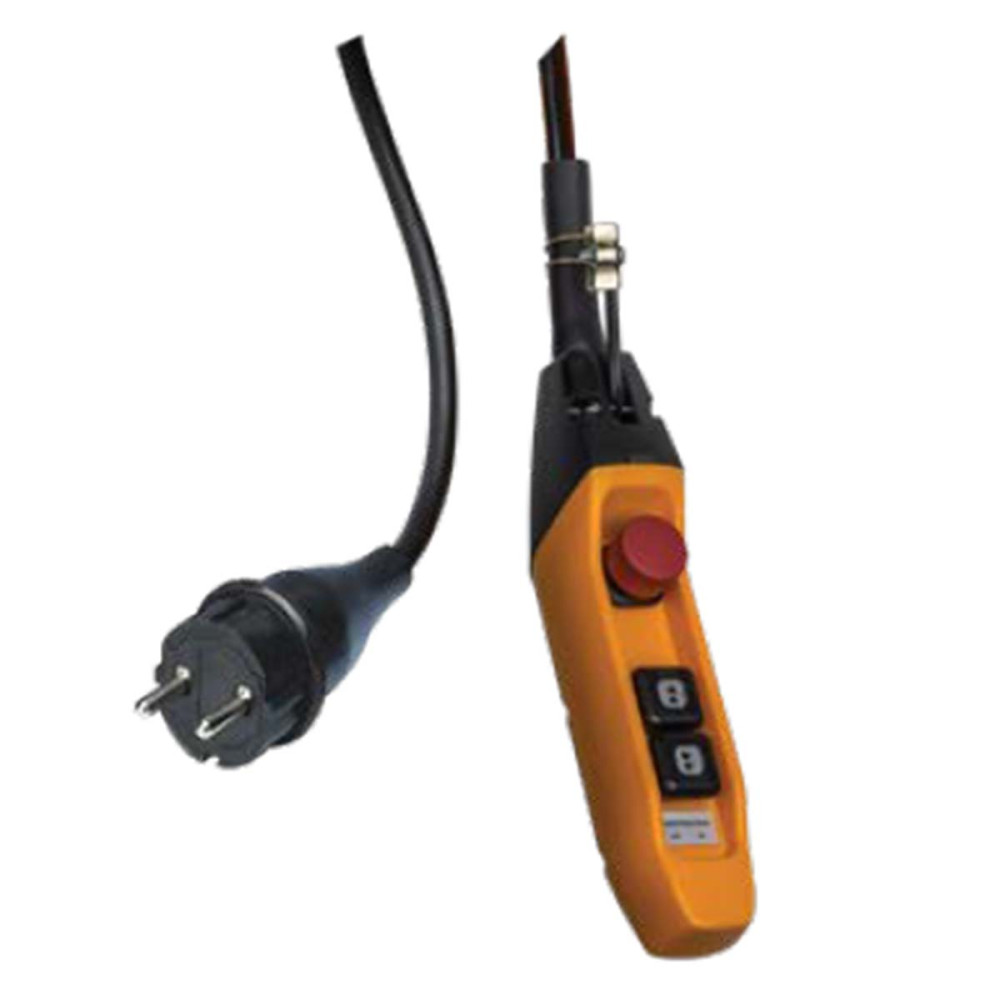

Supplied with wired remote control | radio remote control available as an option
Supplied with steel wire rope and load hook
230 V connection plug with 10 m power cable supplied
Continuous lubrication of transmission components
Supplied with inspection certificate and CE Declaration of Conformity
Remote control protection rating: IP65 | Control box: IP44
Available on request for quotation only | Delivery within 7 working days

€615.00

Tax excluded

Capacity (Kg): 160 Kg

Quantity

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

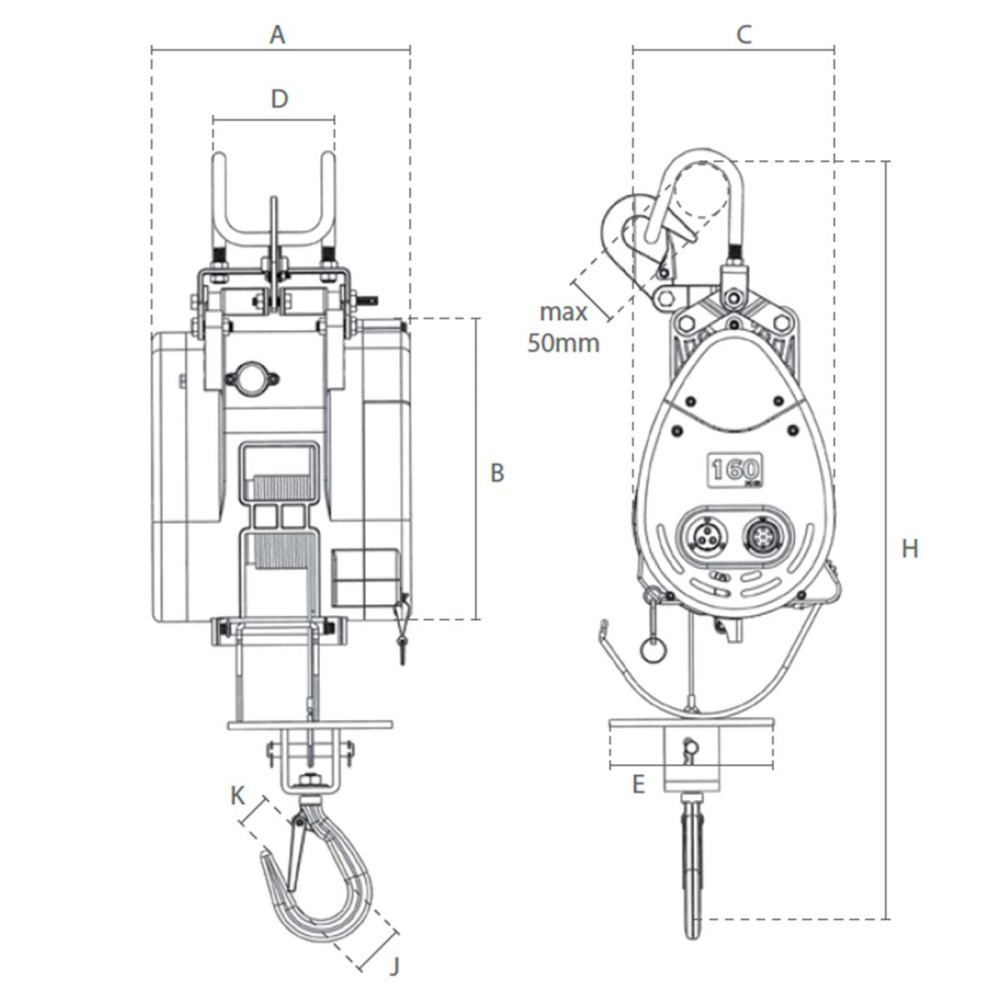

Ref	Capacity (T)	lifting height (m)	lifting speed (m/min)	cable(m) x Ømm	Power (Kw)	Weight (Kg)	A	B	C	D	E	H	J	K
CP.0.DKL.160	0,16	28	19	30 x 5	1,3	23,2	240	263	180	114	156	660	49	41
CP.0.DKL.230	0,23	28	19	30 x 5	1,3	23,2	240	263	180	114	156	660	49	41
CP.0.DKL.300	0,3	28	12	30 x 6	1,3	29,5	210	308	240	146	156	670	49	41
CP.0.DKL.500	0,5	18	11	20 x 7	2	30,5	210	308	240	146	156	670	49	41
