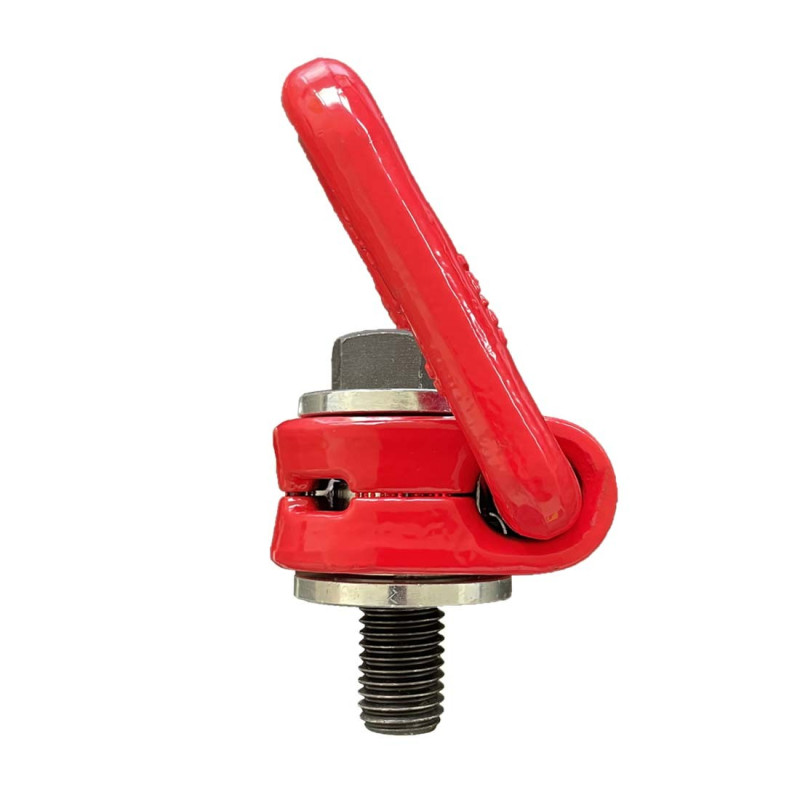

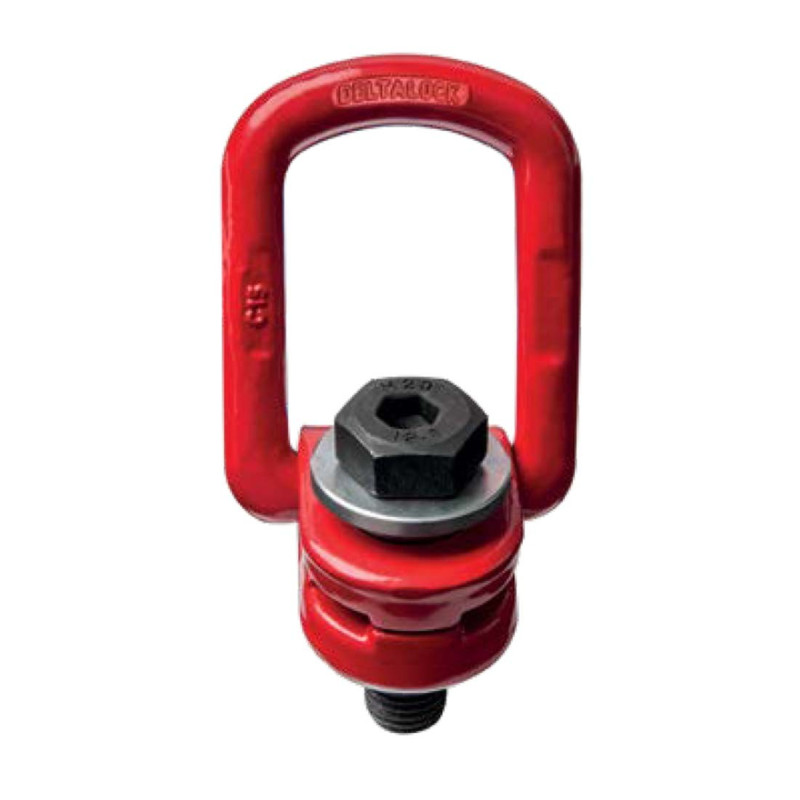

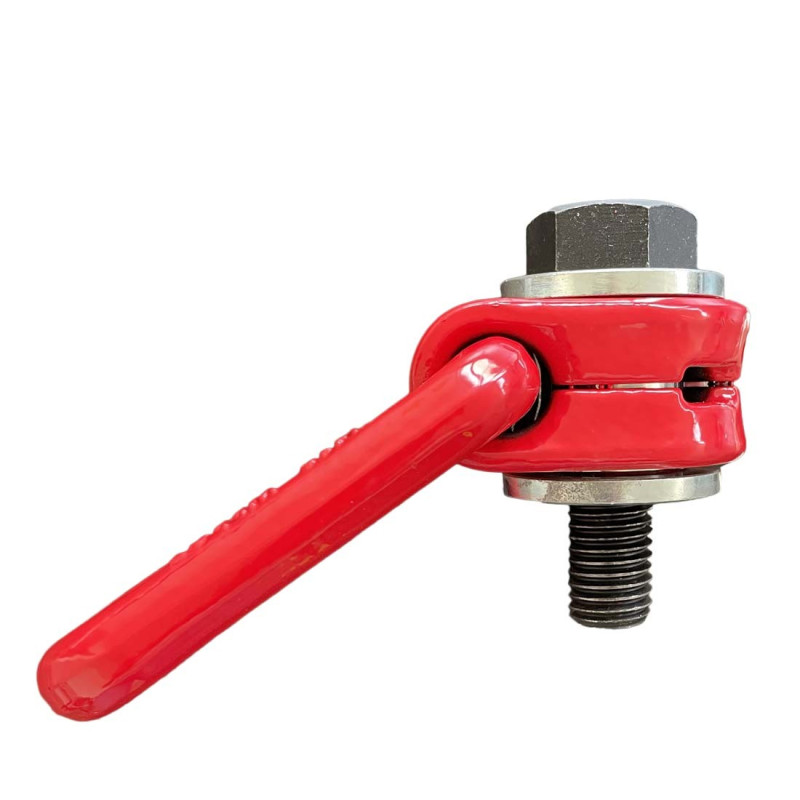

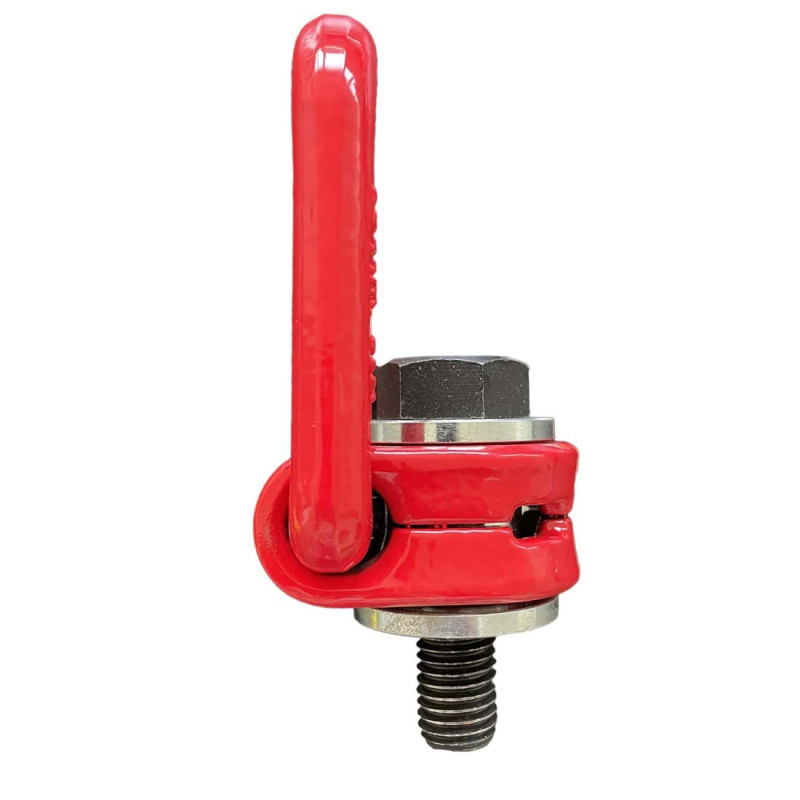

Swivel lifting point

Référence: ALE08
  • Standard EN 1677 - CE - Certificate of Conformity
  • Selection based on thread size and visible thread length
  • Large opening
  • Thread size available from M8 to M42
  • 360° rotation
  • WLL in kilograms for straight lifting
  • Offset lifting shackle
  • Adjustment with hex key
€19.55
Tax excluded
€23.00 Save 15%
Thread Diameter and WLL: M8x10 - WLL 300 Kg
Quantity
Delivery 48-72H

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).
WLL to 0°(Kg) Thread x width(mm) A B C D E F
300 M8x10 35 53 30 45 46 14
630 M10x16 35 53 30 45 52 14
1000 M12x18 40 54 36 68 62 18
1200 M14x21 40 54 36 68 66 18
1500 M16x30 40 54 36 68 70 18
1500 M16x40 40 54 36 68 80 18
2500 M20x30 54 80 50 83 88 16
2500 M20x55 54 80 50 83 113 16
2500 M20x100 54 80 50 83 158 16
4000 M24x35 54 94 50 83 95 18
4000 M24x80 54 94 50 83 140 18
4000 M24x100 54 94 50 83 160 18
5000 M30x48 73 106 68 120 132 27
7000 M36x54 73 106 68 120 142 27
20 000 M48x74 104 155 95 176 194 40
ALE08

Data sheet

Ring Type
Swivel
Rod
Short
Steel
High-strength

Specific References

ean13
8719482305573
