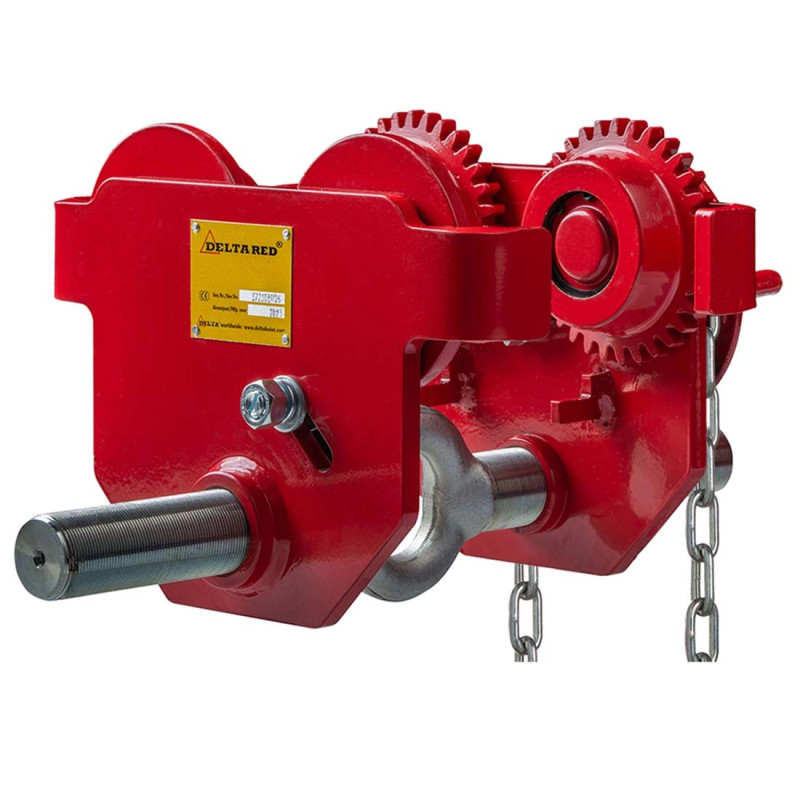

Mechanical Trolley WLL 1 to 5 T

Référence: CPPMDC-0500

Manual Geared Trolley for Hoists – 2.5 m hand chain length

  • Individually adjustable with spacing discs
  • Safety bars provide protection against falls, wheel breakage and impacts. Additionally equipped with anti-tilt protection
  • Permanently lubricated ball bearing wheels ensure smooth and steady movement
  • Suitable for most available I-beams and H-beams
  • Compliant with Machinery Directive 2006/42/EC
  • Supplied with inspection certificate
  • EC Declaration of Conformity and user manual
€145.00
Tax excluded
Capacity (Kg): 500 Kg
Quantity
Delivery 48-72H

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

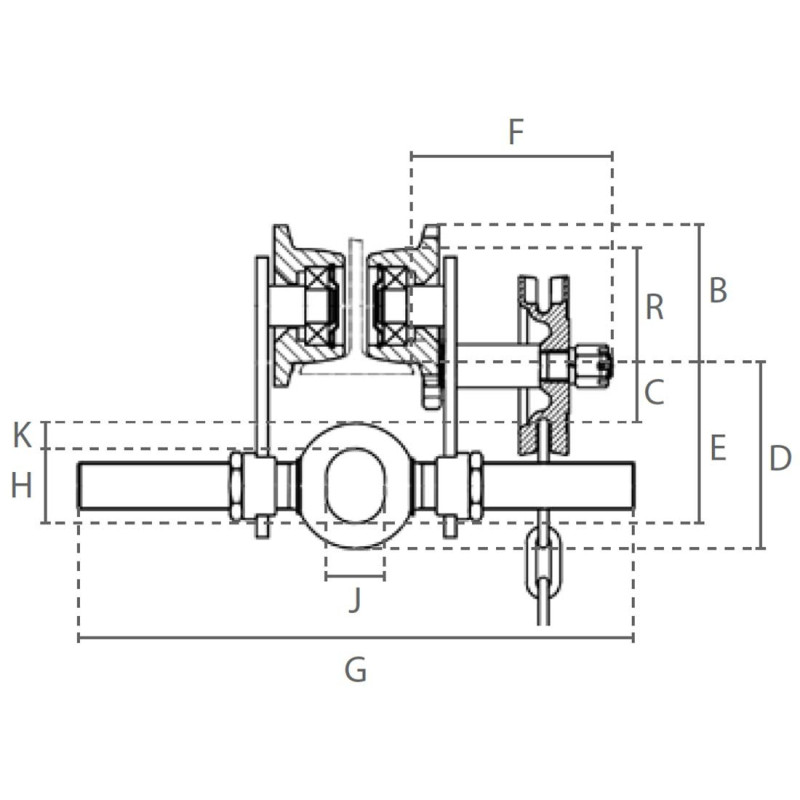

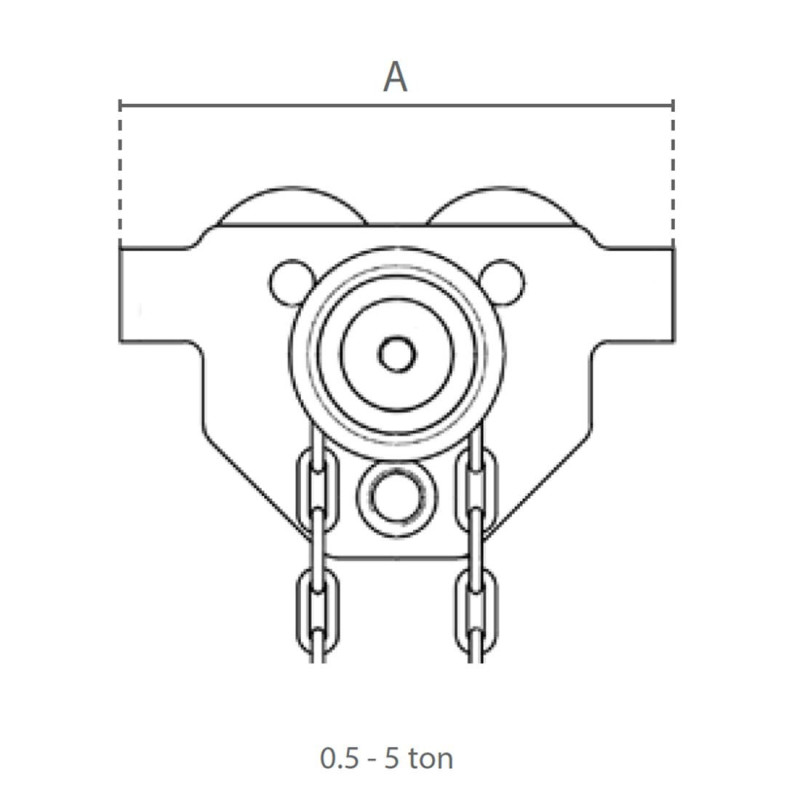

WLL(T) Load proof (T) Width beam (mm) Rayon Ø Wheel Weight(Kg) A B C D E F G H J K
0.5 0.625 50-305 0.5 55 8.9 198 68 40 94 82 103 385 28 25 13
1 1.25 58-305 0.7 68 13 238 82 31 102 85 103 388 37 29 17
2 2.5 66-305 0.9 80 17.8 277 95 31 119 99 103 405 48 36 20
3 3.75 74-305 1.2 100 29.1 324 116 31 139 113 136 429 56 46 26
5 6.25 90-305 1 120 46.1 373 138 40 161 133 140 435 65 52 28
