G80 - Ratchet Load Binder for Chain
Heavy-Duty Ratchet Load Binder
- Complies with EN 12195-3 standard
- Equipped with 2 shortening hooks with safety latch
- Available for 8, 10, 13 and 16 mm chain
- Grade 80 with inspection certificate

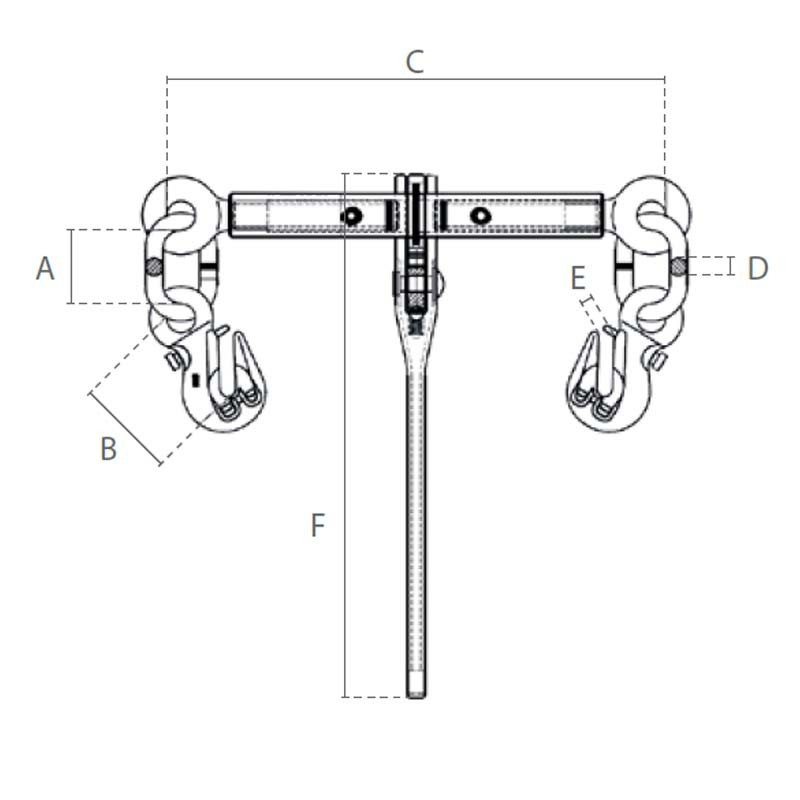

| chaine | TMU (Kg) | STF (kN) | Poids(Kg) | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|---|
| 8 | 4 000 | 10 | 4.8 | 47 | 71 | 340-500 | 12 | 9 | 383 |
| 10 | 6 300 | 15.75 | 5.5 | 47 | 79 | 375-530 | 14 | 12 | 383 |
| 13 | 10 000 | 15.9 | 8 | 71 | 106 | 365-520 | 20 | 16 | 385 |
| 16 | 16 000 | 24 | 14 | 78 | 130 | 395-570 | 24 | 18 | 385 |
Data sheet
- Lashing equipment
- Ratchet load binder
Specific References
- ean13
- 8719482049217
