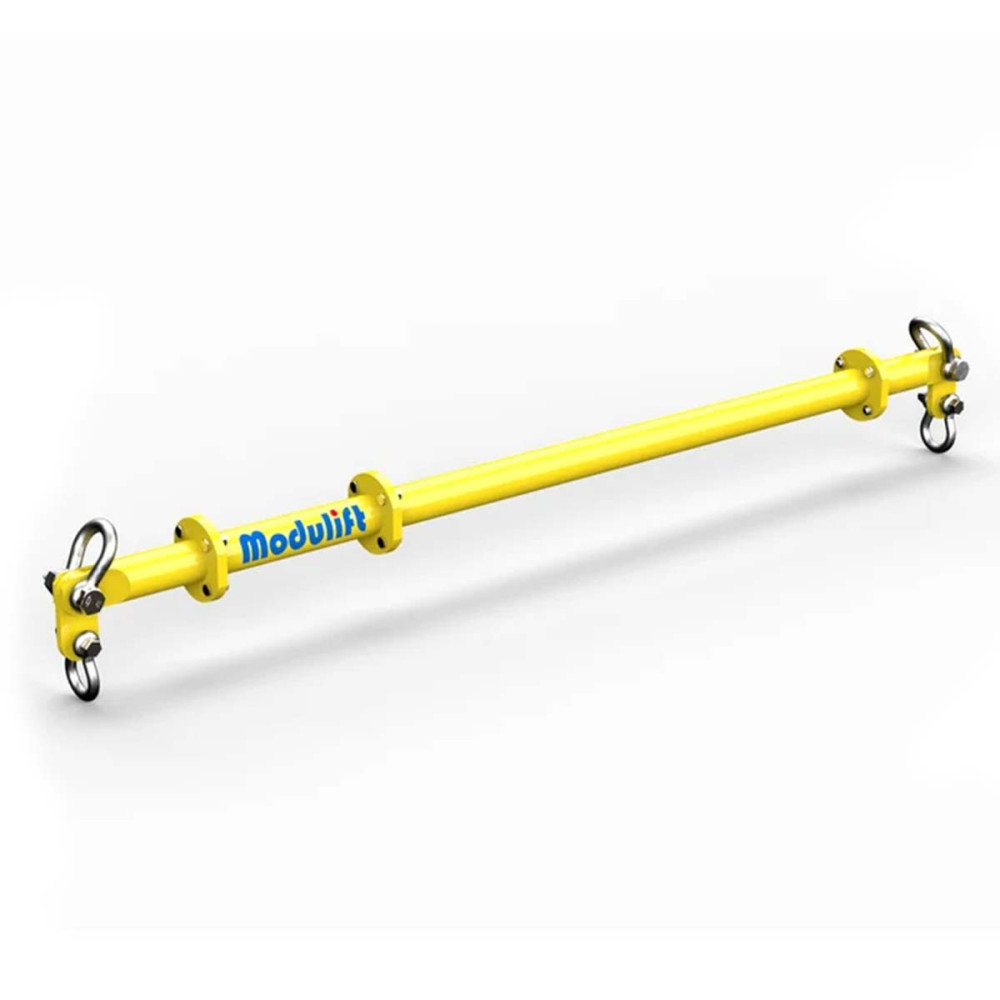

Modular spreader beam Mod 6

Modular spreader beam

  • Working Load Limit (WLL): 6 tonnes
  • Maximum span of 4.5 metres available on request
  • Complies with EN 13155

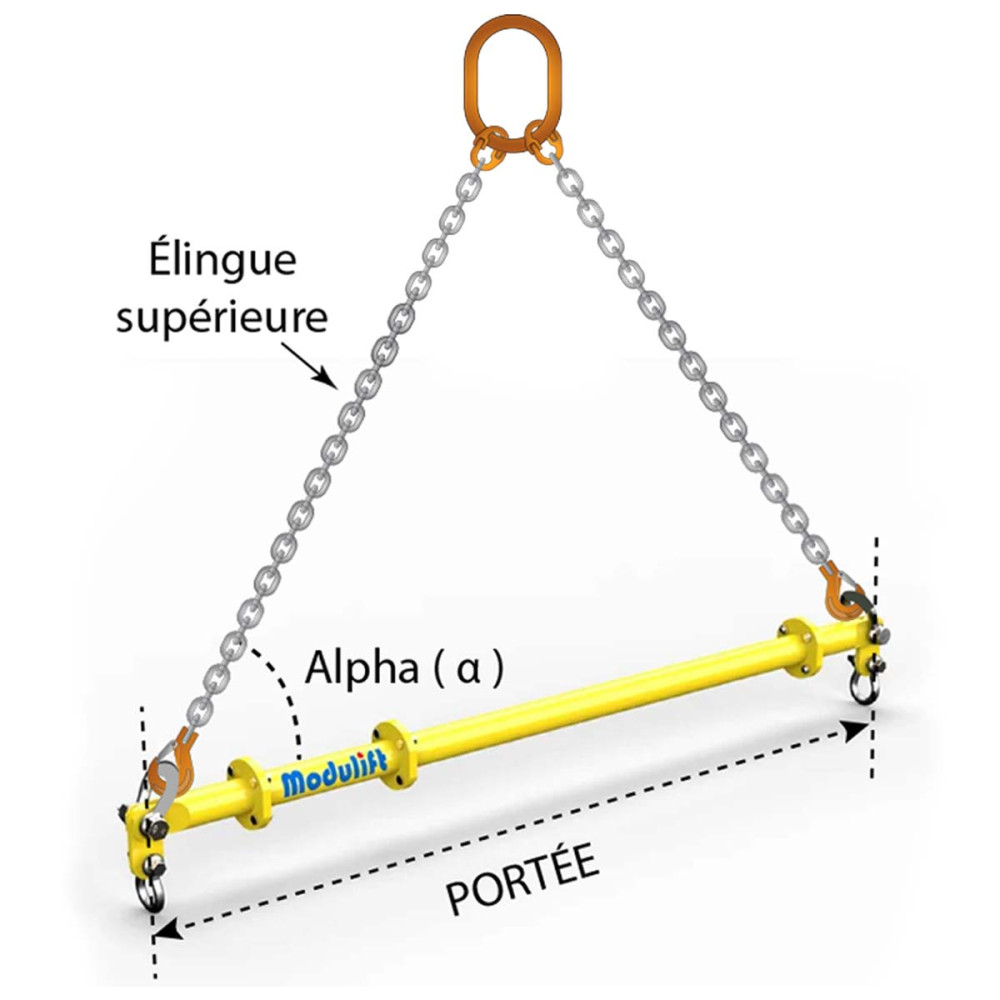

  • The WLL corresponds to a minimum Alpha angle of 45° (most unfavourable case)
    The greater the angle, the more optimal the WLL will be depending on the selected span
    See table below
  • Complies with Machinery Directive 2006/42/EC
  • The minimum length of the upper sling must be ≥ the span of the spreader beam
  • Supplied with 2 x 4.75T bow shackles and 2 x 3.75T shackles
  • Manufacturer: Modulift by Pewag
  • Spreader beam and delivery available on quotation
  • Lead time: 4 weeks

Quotation Only

€1,385.00
Tax excluded
Reach (m) - WLL(T) with Alpha 45°: 1.5 m - 6T
Quantity

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).
portée (Mètre) Cmu (T)
avec α 45°		 Cmu (T)
avec α 60°		 Cmu (T)
avec α 70°		 Longueur élingue supérieure (m)
α ≥ 45°		 Longueur élingue supérieure (m)
α ≥ 60°		 Longueur élingue supérieure (m)
α ≥ 70°
0.4 6 6 6 0.2 0.4 0.5
0.6 6 6 6 0.4 0.6 0.8
0.6 6 6 6 0.5 0.8 1.1
1 6 6 6 0.7 1 1.4
1.2 6 6 6 0.8 1.2 1.7
1.4 6 6 6 1 1.4 2
1.6 6 6 6 1.1 1.6 2.3
1.8 6 6 6 1.2 1.8 2.6
2 6 6 6 1.4 2 2.9
2.2 6 6 6 1.5 2.2 3.2
2.4 6 6 6 1.7 2.4 3.5
2.6 6 6 6 1.8 2.6 3.8
2.8 6 6 6 1.9 2.8 4.1
3 5 6 6 2.1 3 4.3
3.2 4 6 6 2.2 3.2 4.6
3.4 4 6 6 2.4 3.4 4.9
3.6 3 6 6 2.5 3.6 5.2
3.8 3 5 6 2.7 3.8 5.5
4 3 5 6 2.8 4 5.8
4.2 2 4 6 2.9 4.2 6.1
4.4 2 4 6 3.1 4.4 6.4
4.5 2 4 6 3.1 4.5 6.5
