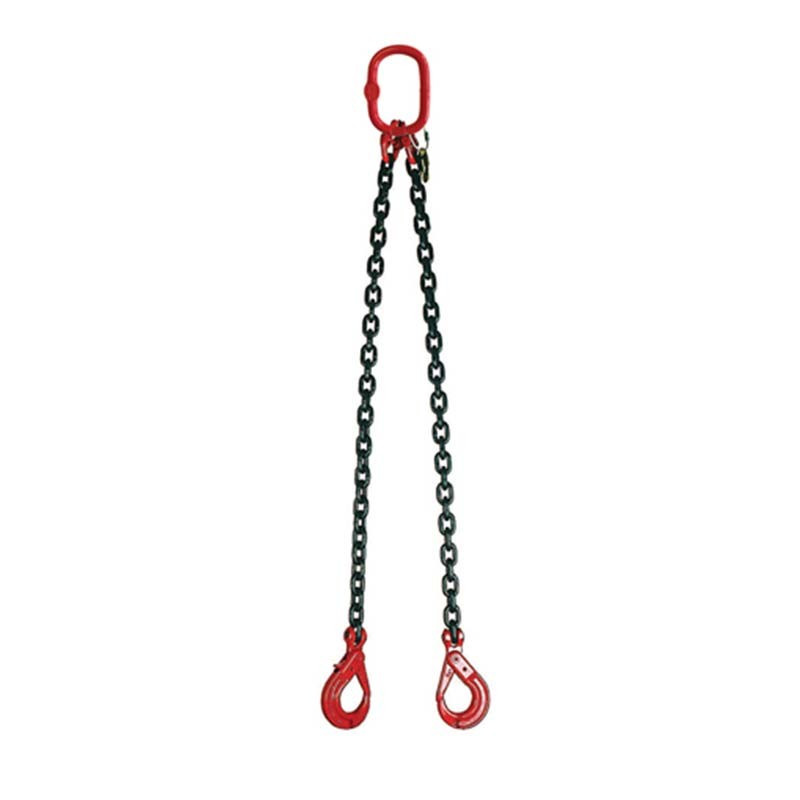

2-leg lifting chain sling with self-locking hooks

Référence: EC2BCAC6-1

2-leg Grade 80 chain sling for lifting loads from 1,600 to 17,000 kg

  • According to standard EN818-4 CE
  • Supplied assembled with identification tag/plate
  • Chain diameter from 6 to 20 mm
  • Grade 80, length from 1 to 10 meters

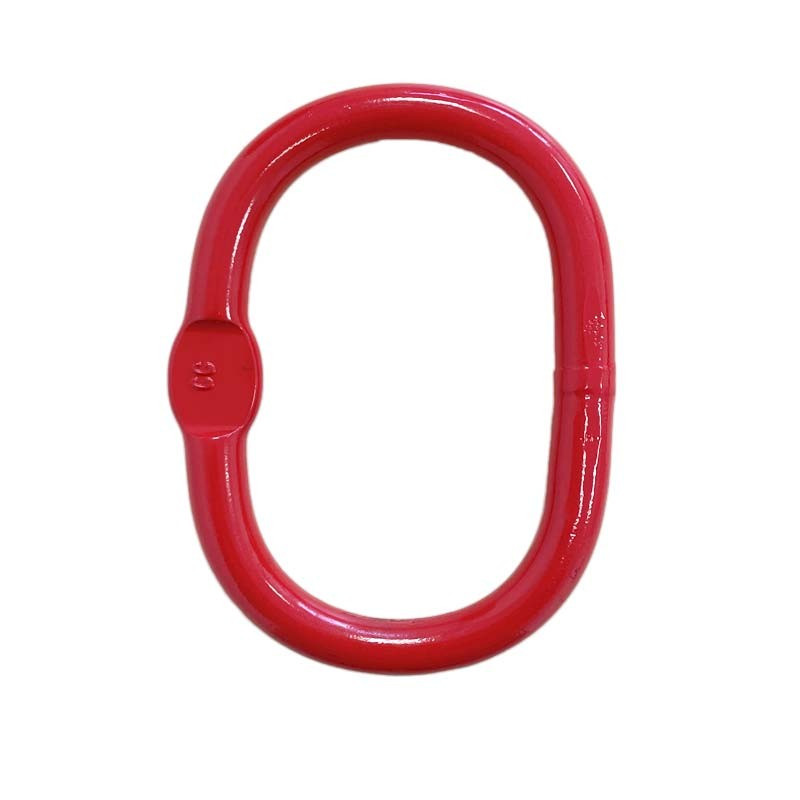

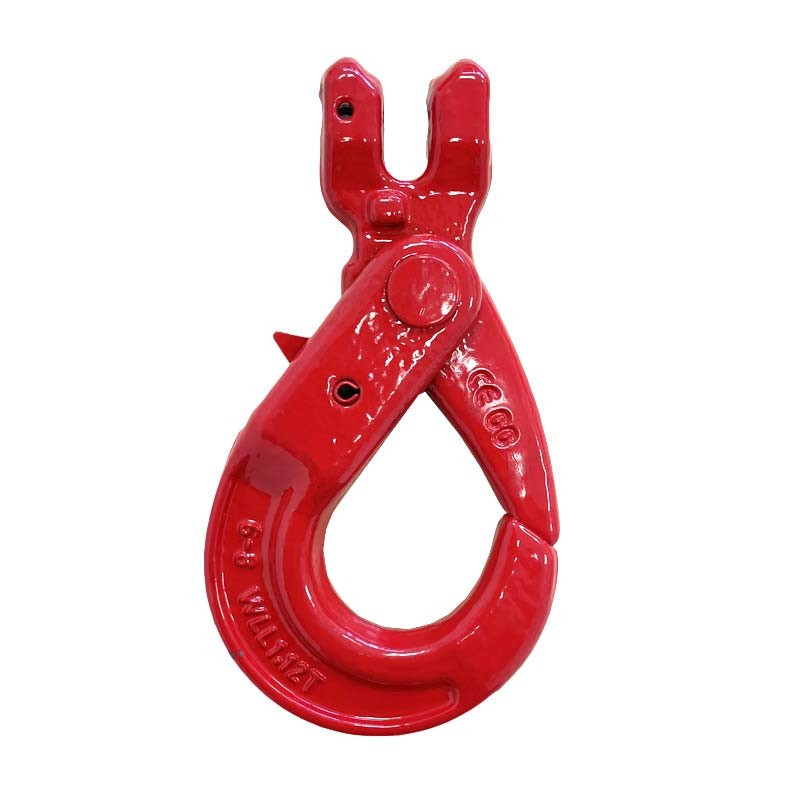

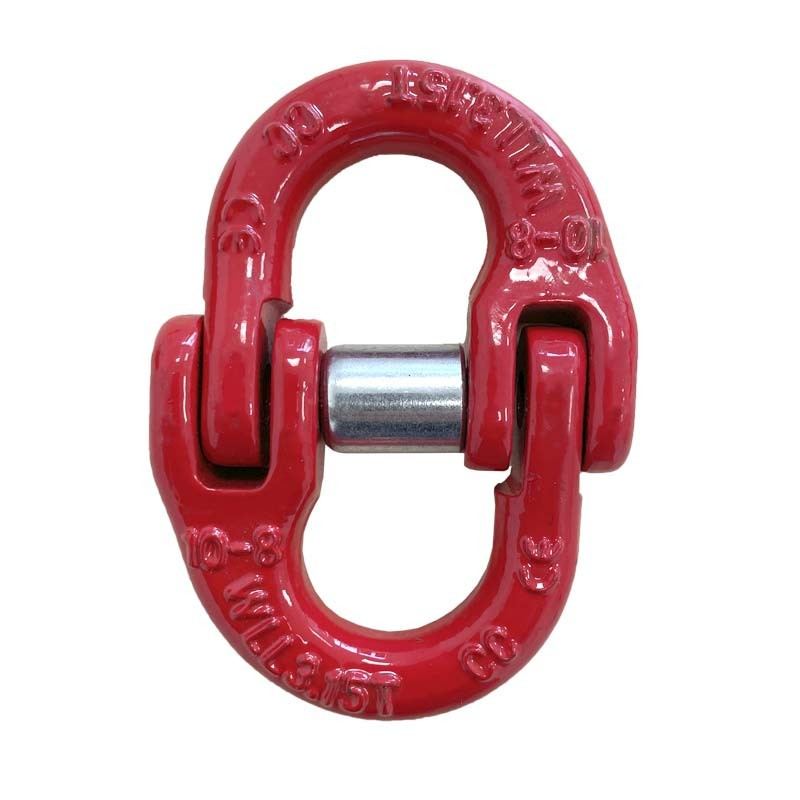

  • 2 self-locking clevis hooks + 1 master link + 2 connecting links

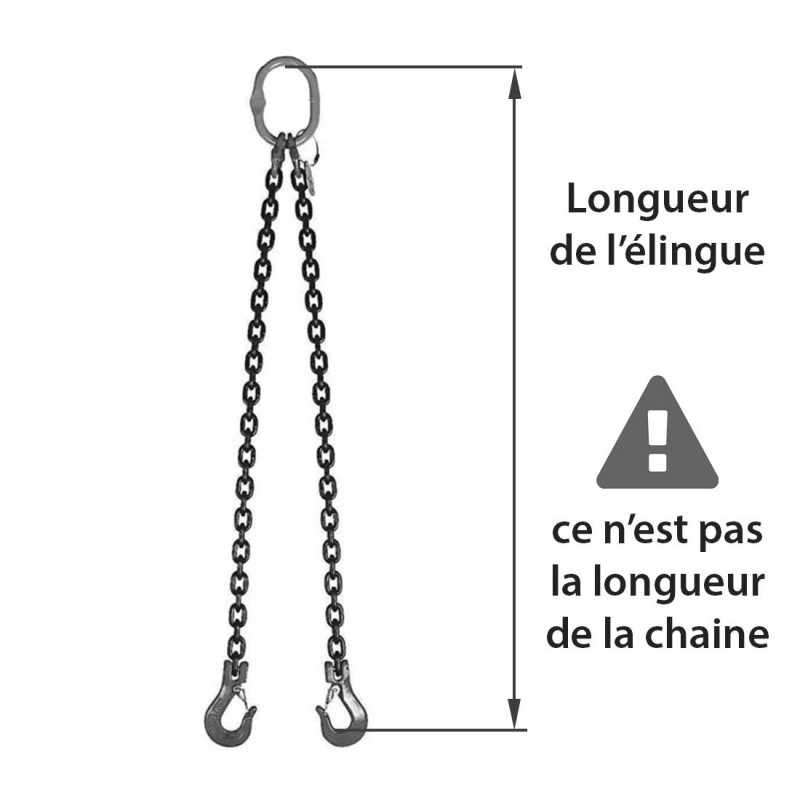

  • The sling length is not the chain length
  • For a specific length, please contact us
€80.00
Tax excluded
Length: 1 mètre
Diameter - WLL: Ø6 - 1600 Kg
Quantity
Delivery 48-72 H

A minimum shopping cart total of €25.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

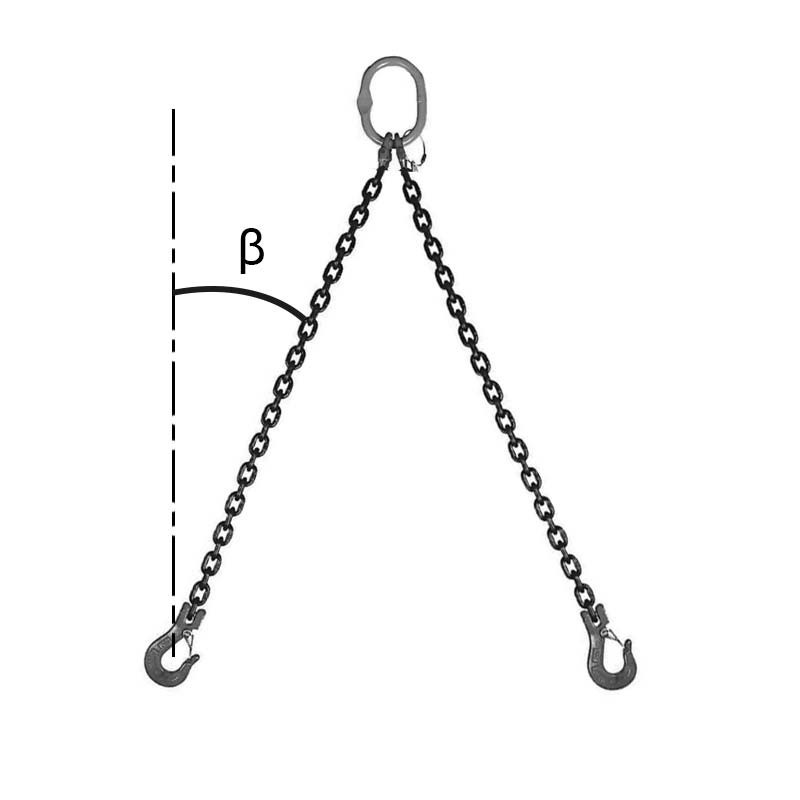

Ø chain(mm) WLL(T) 1 brin WLL(T) 2 brins β<45° WLL(T) 2 brins 45°< β < 60° WLL(T) 4 brins β<45° WLL(T) 4 brins 45°< β < 60°
6 1.12 1.6 1.12 2.35 1.7
8 2 2.8 2 4.25 3
10 3.15 4.2 3.15 6.7 4.75
13 5.3 7.5 5.3 11.2 8
16 8 11.2 8 17 11.8
20 12.5 17 12.5 26.5 19
22 15 21.2 15 31.5 22.4
26 21.2 30 21.2 45 31.5
32 31.5 45 31.5 67 47.5
EC2BCAC6-1

Data sheet

Sling Type
Chain
Number of legs
2 legs
Steel grade
Grade 80
Hook type
Automatic
Shortner
No
