Wire Rope Clip | High Quality

Référence: SCEEC8

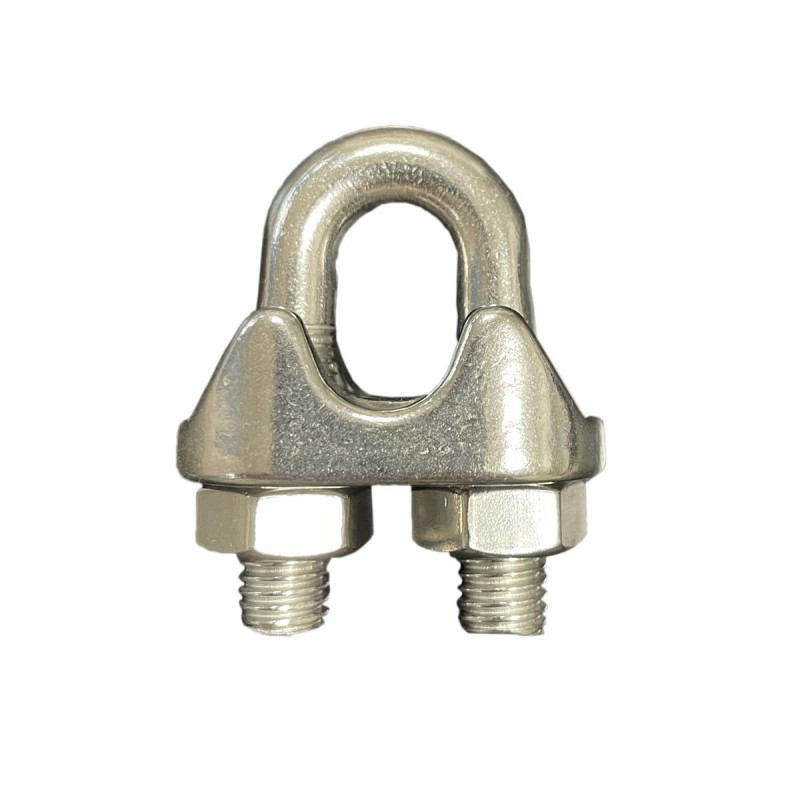

CE-marked forged steel wire rope clamp

  • Available in diameters 8, 10, 12, and 16 mm
  • Ideal for high ropes courses
  • Install on cable with U-bolt on dead end and saddle on live end
  • Space the clamps 6 to 8 times the cable diameter
€0.60
Tax excluded
Wire Rope: Diamètre 8 mm
Quantity
Delivery 48-72H

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

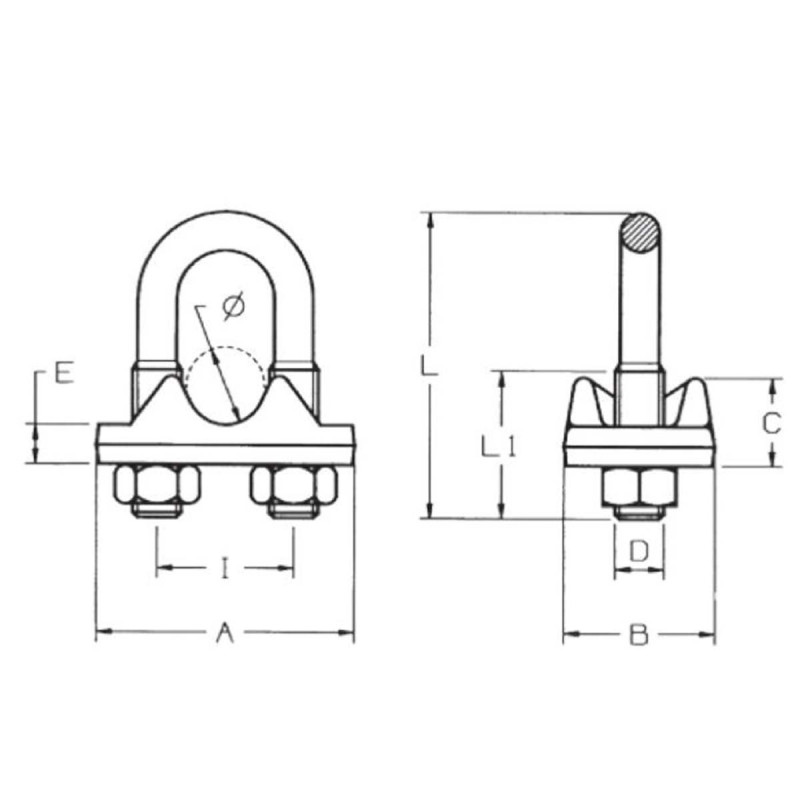

Dimensions en mm

Ø mm Wire Rope A B C D E I L L1 Weight
8 8 33 20 12 M 6 5,5 16 34 19 0,04
10 10 38 22 14 M 8 6 18 44 24 0,07
11 11 40 23 15 M 8 6,5 20 45 27 0,08
12 12 45 25 16 M 10 7 23 55 30 0,12
14 14 46 27 17 M 10 7,5 24 55 30 0,14
16 16 53 31 18 M 10 8 28 63 32 0,18
SCEEC8

Data sheet

Steel
Zinc-plated
Adventure park accessory
Cable & accessoiries
Wire rope clip type
U-bolt
