• New

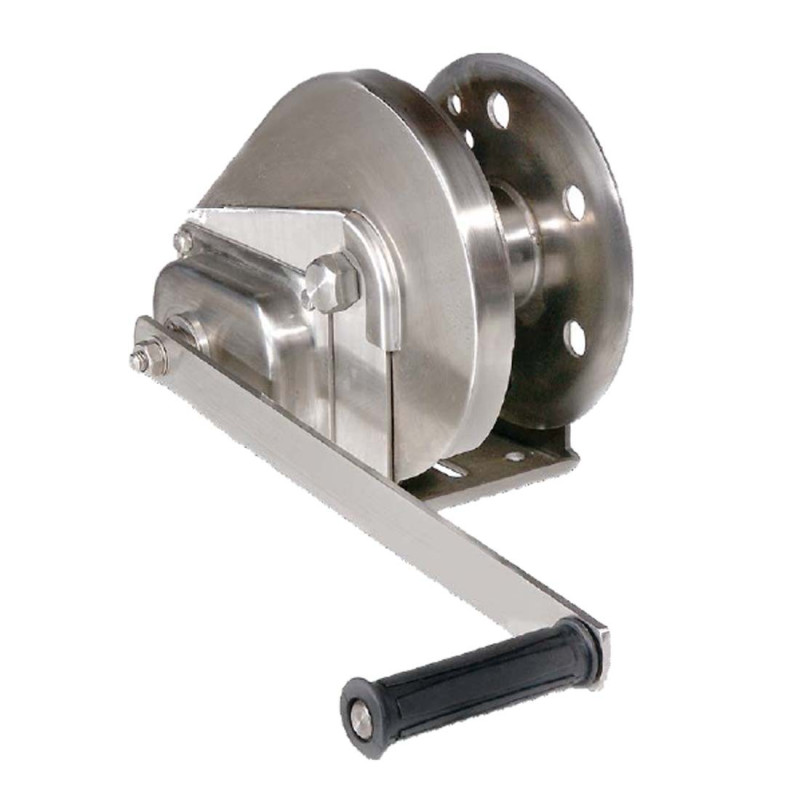

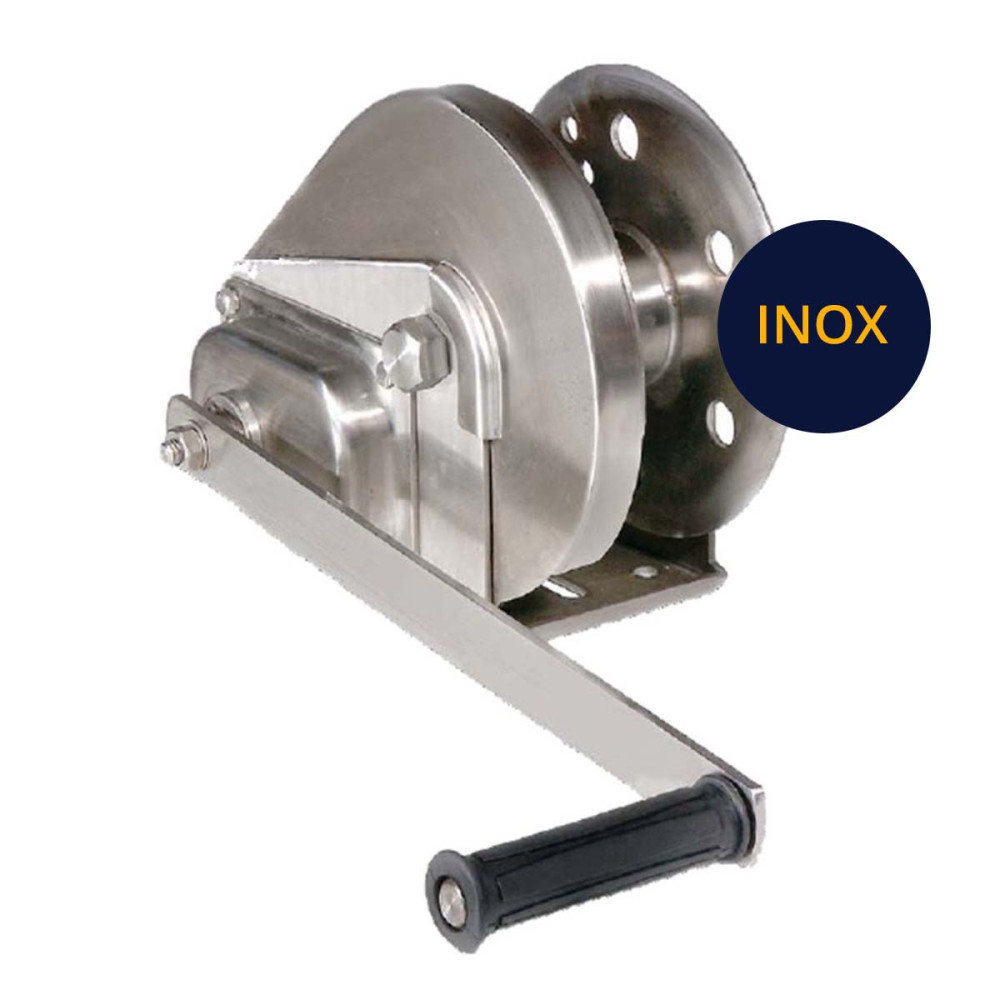

Stainless Steel Manual Winch

Référence: DS.0.BHW.1200RV
  • For pulling and lifting applications
  • Lifting capacity: 100 kg to 240 kg on the last layer
  • Pulling capacity: 190 kg to 520 kg on the last layer
  • Detachable crank handle | Ergonomic grip
  • Supplied with certificate of conformity
  • EC Declaration of Conformity
  • For 7x19 stainless steel wire rope
€210.00
Tax excluded
Last layer capacity: 100 Kg
Quantity
Delivery 5 days

A minimum shopping cart total of €20.00 (tax excl.) is required to validate your order. Current cart total is €0.00 (tax excl.).

Technical Specifications of the Stainless Steel Manual Winch (RV)

Model Max. pulling capacity
first layer (kg)		 Max. pulling capacity
last layer (kg)		 Max. lifting capacity
first layer (kg)		 Max. lifting capacity
last layer (kg)		 Gear ratio Recommended wire rope Weight (kg)
Inox-DS.0.BHW.1200RV 440 190 220 100 4.2:1 20 metres x Ø5 mm 4
Inox-DS.0.BHW.1800RV 660 290 330 150 5:1 20 metres x Ø7 mm 8
Inox-DS.0.BHW.2600RV 940 520 470 240 9:1 13 metres x Ø8 mm 11.5

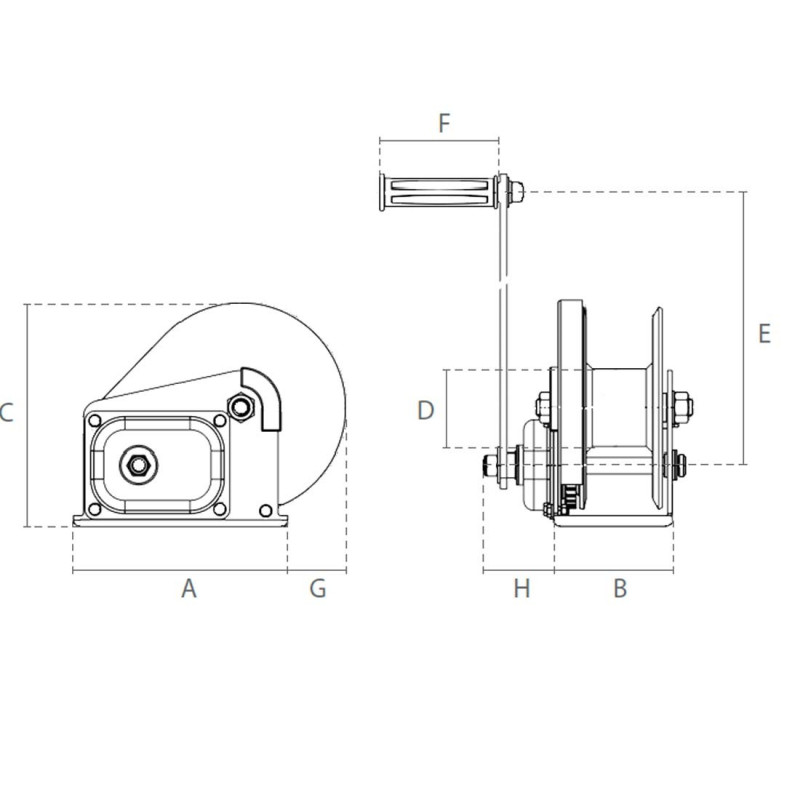

stainless steel manual winch dimensions

Dimensions in Millimetres – 304 Stainless Steel

Model A B C D E F G H
DS.0.BHW.1200/RV 138 88 156 48 208 110 46 57
DS.0.BHW.1800/RV 193 107 203 60 319 110 53 60
DS.0.BHW.2600/RV 240 127 216 75 319 110 54 63
DS.0.BHW.1200RV

Specific References

ean13
8719482287893
Download
Treuil manuel levage ou traction

Doc Technique
