Stainless steel AISI 316 Maximum working load from 150 to 1000 kg Available rod diameter M5 to...

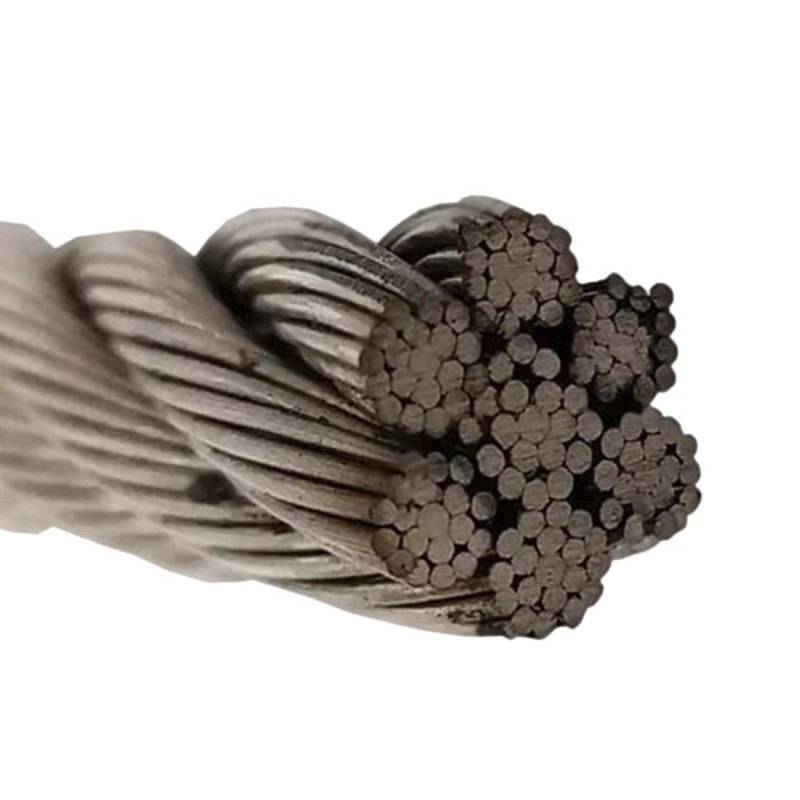

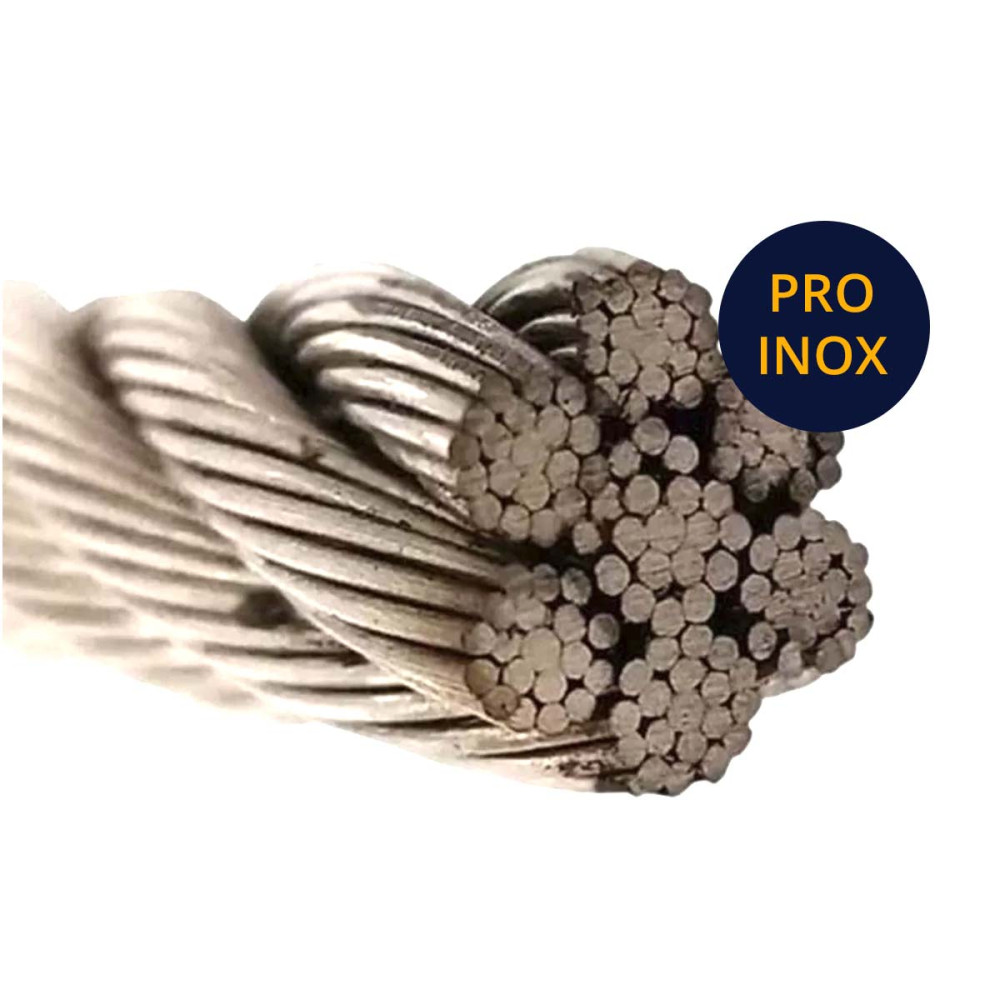

SST wire rope Ø4 to Ø12 mm
Référence: CI7X19AA03
For Tree Climbing, Lifelines, and Lifting
- Standard: EN 10088 | WLL: 120 to 1720 Kg

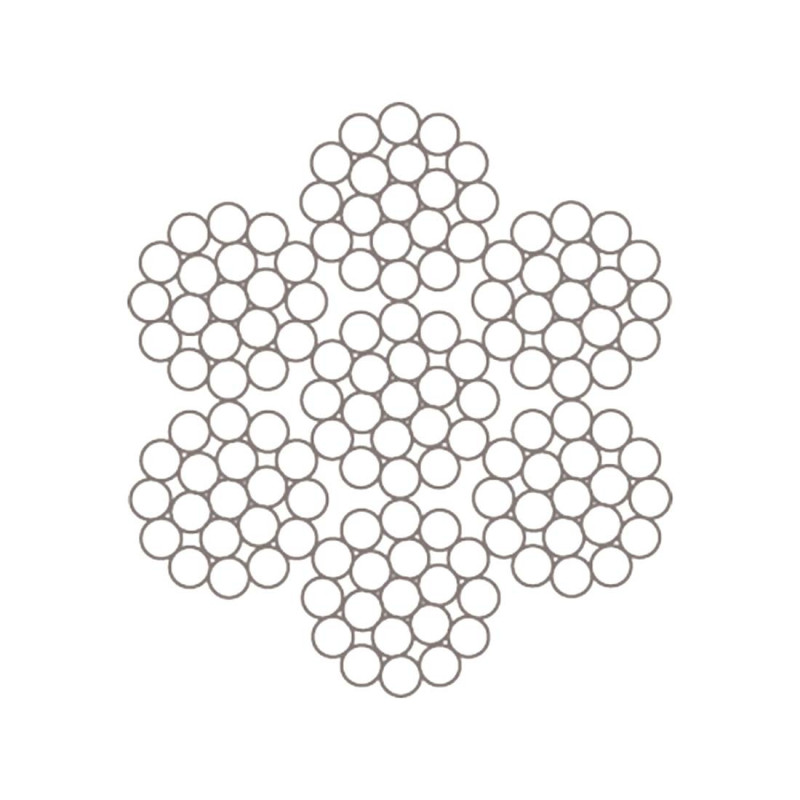

- Diameter: 3 to 12 mm | Construction: 7x19 metallic core
- Lay: Right-hand regular lay
- Material: AISI 316 Stainless Steel (marine grade)
- Sold by the meter: 1 unit = 1 meter
- Price shown per meter | For special packaging, please contact us
| Diamèter (mm) | weight(en Kg) | breaking load(en Kg) | WLL(en Kg) |
|---|---|---|---|
| 3 | 0.1 | 600 | 120 |
| 4 | 0.15 | 950 | 190 |
| 5 | 0.2 | 1400 | 280 |
| 6 | 0.22 | 2100 | 420 |
| 8 | 0.24 | 3800 | 760 |
| 10 | 0.37 | 6000 | 1200 |
| 12 | 0.5 | 8600 | 1720 |
CI7X19AA03
Data sheet
- Steel
- Stainless
- Cable type
- Steel core cable
